Installation and Maintenance
5.1 Installation
5.1.1 Installation on a DIN Rail
Installation
Install the media converter on a 35 mm DIN rail according to DIN EN 50022.
1. Place the upper catch of the device over the top of the rail and then push in the lower part
of the device against the rail until it clips into place.
2. Install the electrical connecting cables and the terminal block for the signaling contact.
3. Fit the connectors for the power supply and the signaling contact into the sockets on the
device.

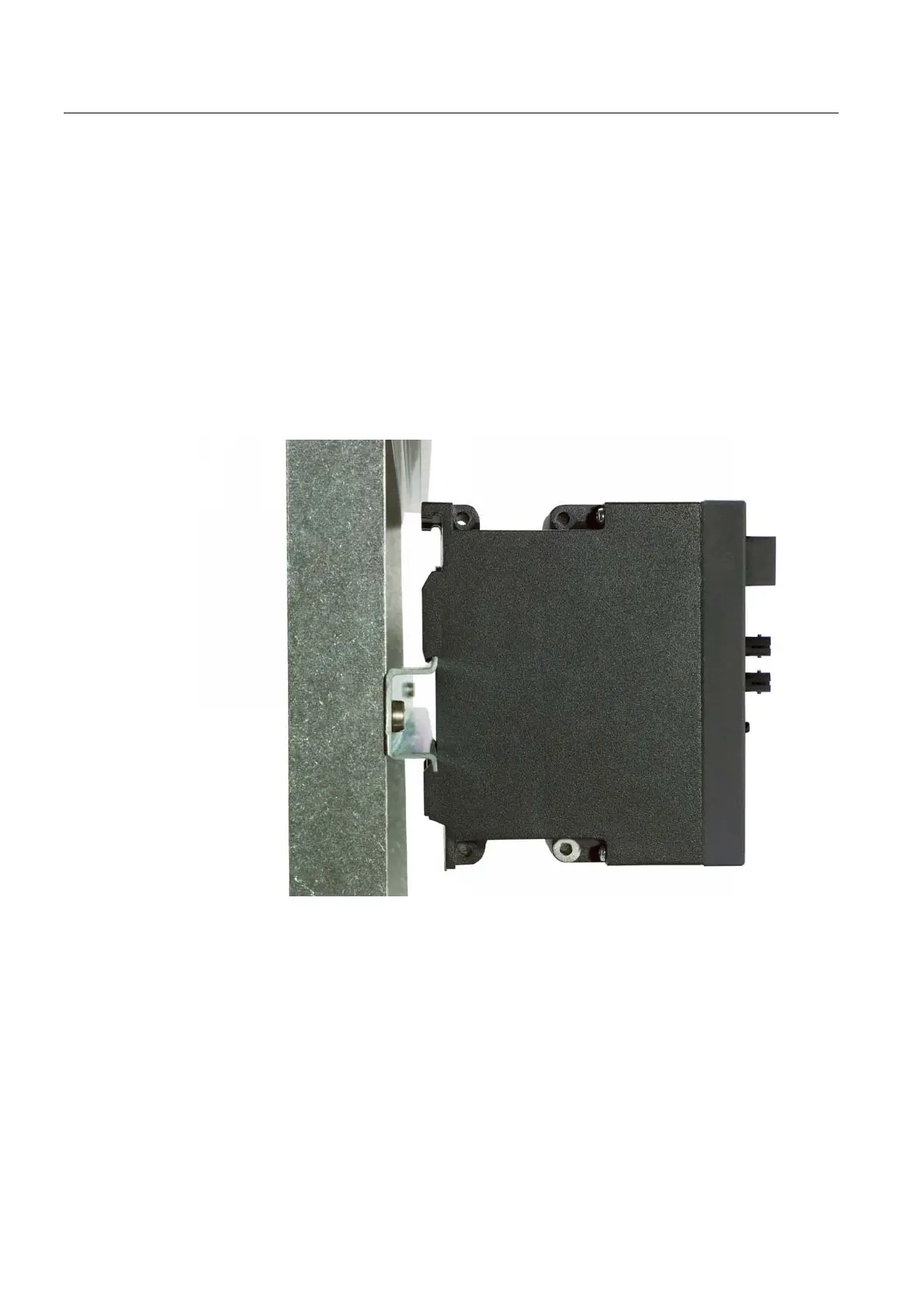

Figure 5-1 Installation on a DIN rail (35 mm)
Industrial Ethernet Media Converters SCALANCE X-100 Series
5-2 Commissioning Manual, 07/2008, A2B00051521A
