Siemens SDV6 - Page 13

Installation

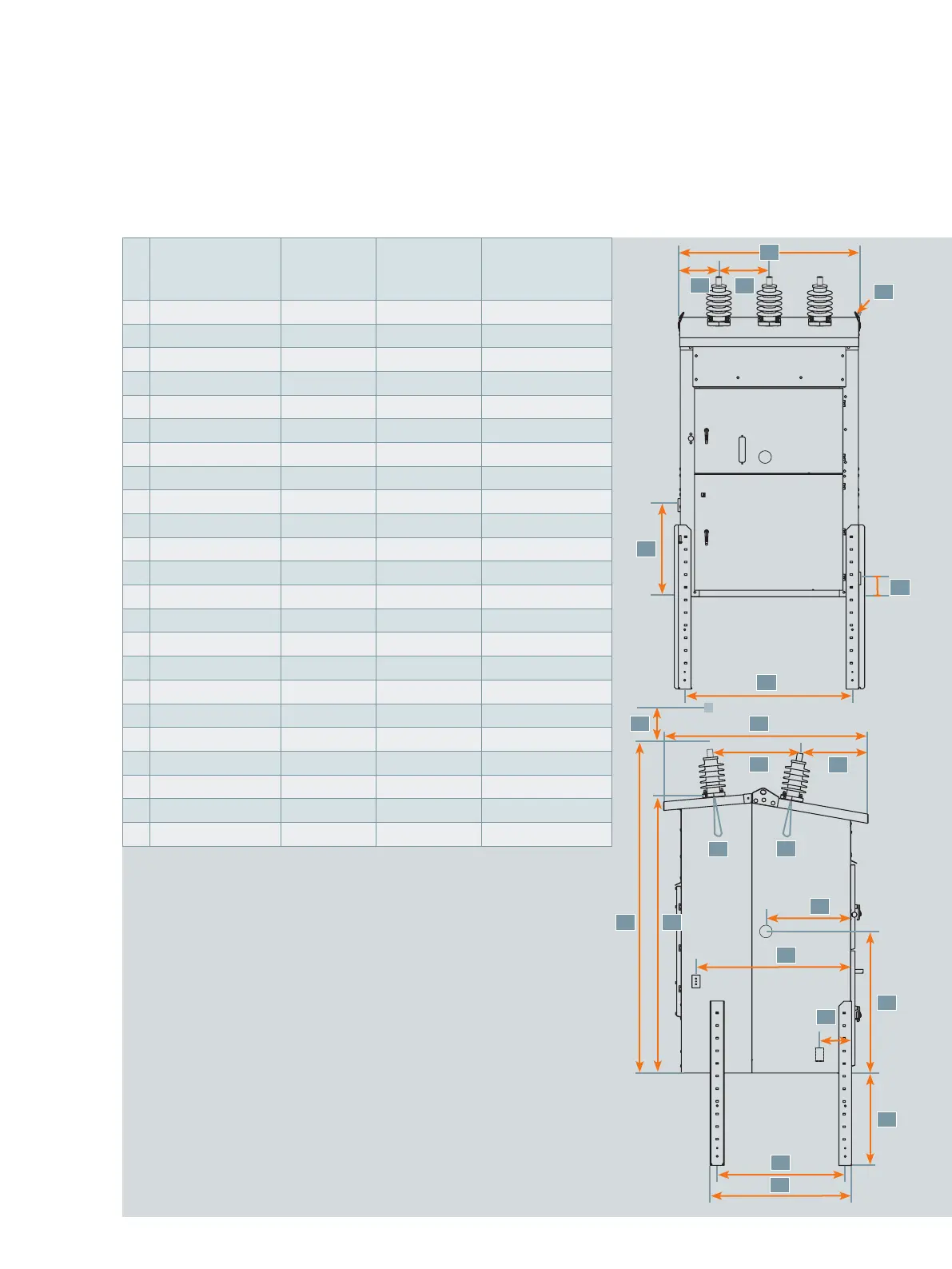

Figure 3: Outline drawing
1
15.5 kV-
20/25/31.5/40 kA-
1,200/2,000 A
15.5 kV-
31.5/40 kA-
3,000 A
27.6 kV-
20/25 kA-
1,200/2,000 A
38.0 kV-
20/25/31.5/40 kA-
1,200/2,000 A
A 44.0 (1,118) 52.3 (1,328) 52.3 (1,328) 67.2 (1,706)
B 39.9 (1,014) 39.9 (1,014) 39.9 (1,014) 63.5 (1,612)
C 47.9 (1,217) 55.8 (1,417) 55.8 (1,417) 75.2 (1,911)
D 58.5 (1,485) 63.7 (1,619) 63.7 (1,619) 78.5 (1,995)
E 52.8 (1,342) 53.1 (1,348) 53.1 (1,348) 70.9 (1,800)
F 10.8 (274) 12.2 (309) 12.2 (309) 17.9 (454)
G 13.0 (330) 15.7 (400) 15.7 (400) 19.7 (500)
H 28.9 (734) 28.9 (734) 28.9 (734) 44.9 (1,141)
I 5° 5° 5° 20°
J 10° 10° 10° 10°
K 5.2 (132) 5.2 (132) 5.2 (132) 7.5 (191)
L 28.8 (732) 28.8 (732) 28.8 (732) 31.1 (790)
M 3.5 (90) 3.5 (90) 3.5 (90) 3.5 (90)
N 28.5 (725) 28.5 (725) 28.5 (725) 3.7 (95)
O 5.7 (145) 5.7 (145) 5.7 (145) 5.7 (145)
P 48.2 (1,224) 48.2 (1,224) 48.2 (1,224) 61.4 (1,560)
Q 9.7 (247) 9.7 (247) 9.7 (247) 9.2 (236)
R 15.6 (397) 15.4 (391) 15.4 (391) 24.5 (622)
S 104.0 (2,641) 104.0 (2,641) 104.0 (2,641) 114.7 (2,914)
T 87.0 (2,210) 87.0 (2,210) 87.0 (2,210) 96.0 (2,440)
U 26.4 (671) 26.5 (673) 26.5 (673) 35.4 (899)
V 40.0 (1,016) 40.0 (1,016) 40.0 (1,016) 44.5 (1,130)
W 20 (510) 20 (510) 22.1 (561) 28.0 (711)
2-4-6
bushing
side
1-3-5
bushing
side
Dimensions in inches (mm)
M
O
N
F
G
C
A
W D
H
R
S T
I
J
P
U
Q
V
B
E
K/L
