27/126
Siemens Building Technologies SED2 variable speed drives CM1U5192en
HVAC Products Electrical installation 01.2002
1
5192J20
2

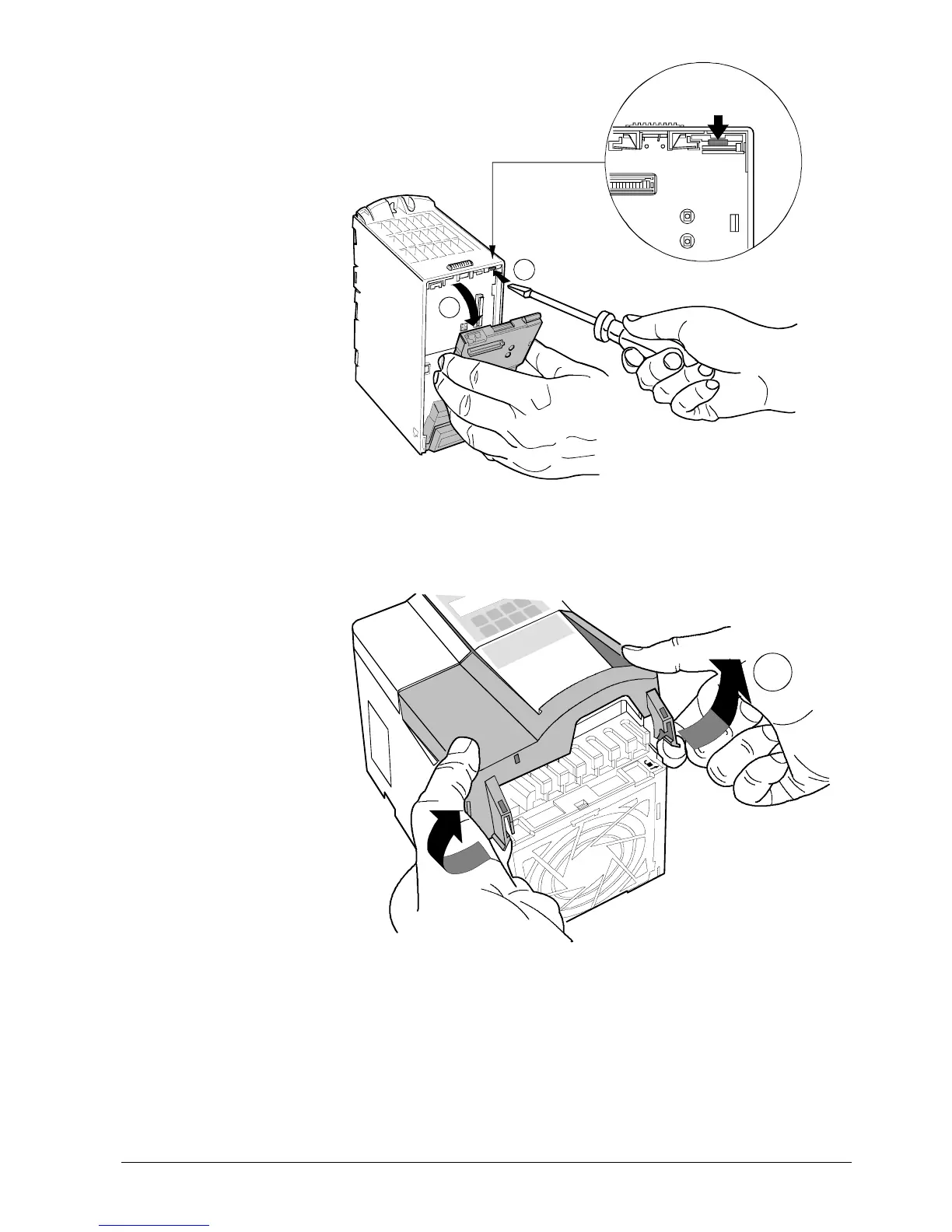

4.3.2 Access to connection terminals: Frame sizes B and C
1
5192J12
Removing the
I/O module
Removing the cover of the
mains and motor
terminals
