4.3.1 Access to connection terminals: Frame size A
To access the mains and motor terminals, first remove the operator panel, cover, and
I/O module as illustrated below.
5192J08
1
5192J09
1
5192J16
2
1

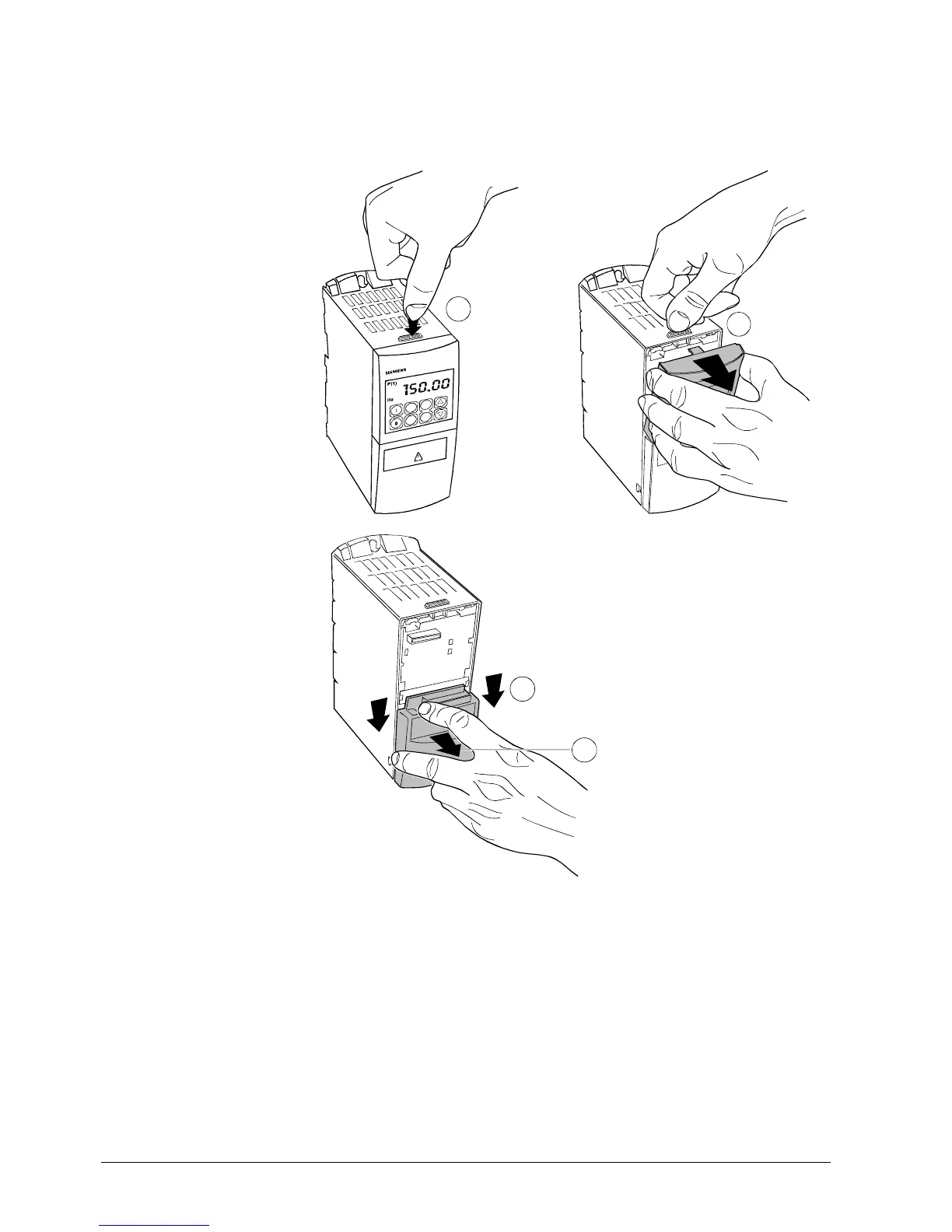

Removing the operator
panel (BOP or AOP)
Removing the terminal
cover of the I/O module
