Siemens Building Technologies SED2 variable speed drives CM1U5192en
HVAC Products Electrical installation 01.2002
1
2
3
5192Z02
20 21 22 23 24 25
29 3017 26 27 2812 13 14 15 16
10 11678912345
ON
12
PE
5192Z03en
Torx driver T20
M4
Screw

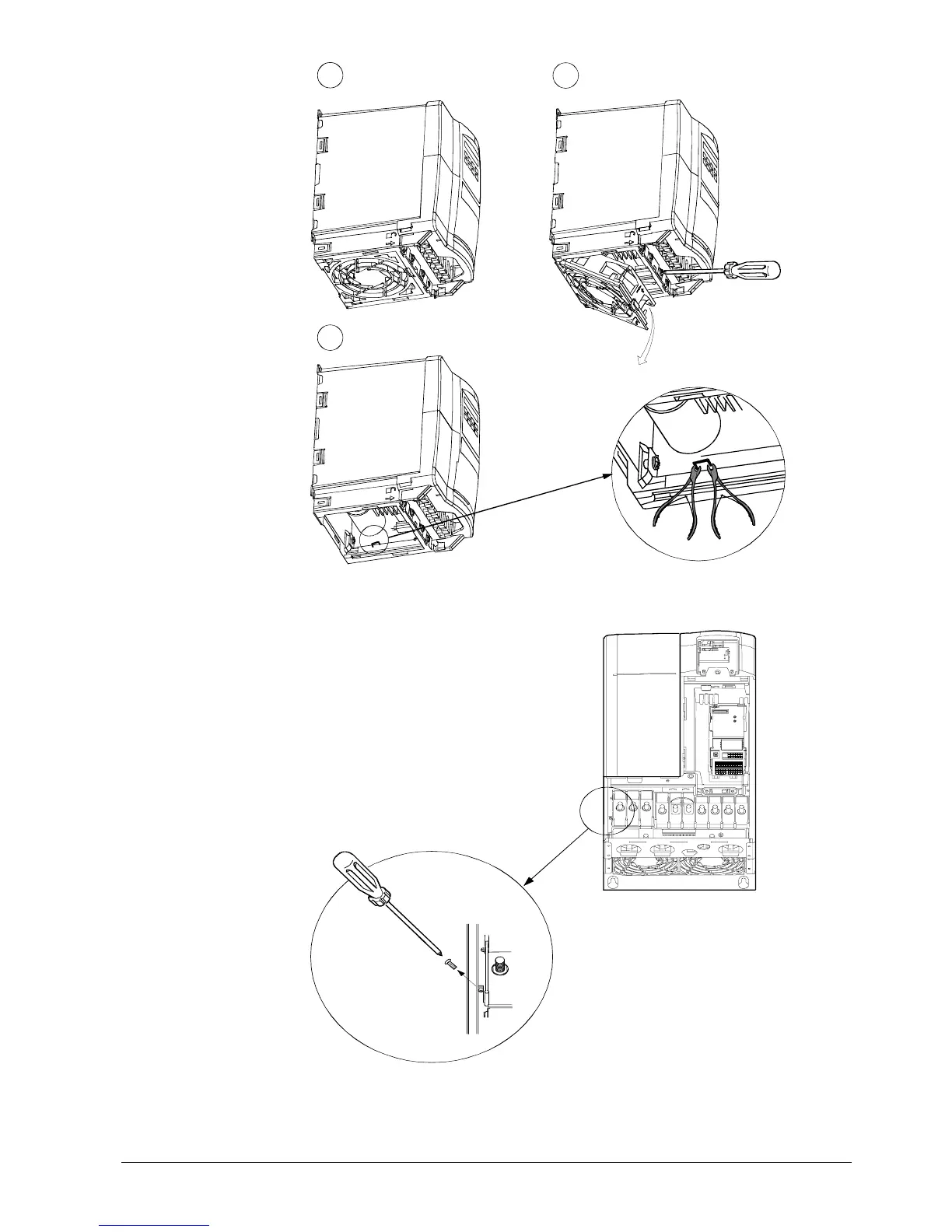

Disconnecting the Y
capacitor in SED2
drives, frame sizes
BandC
Disconnecting the Y
capacitor in SED2
drives, frame sizes
DandE
