1.8 Connecting
SIMATIC HMI IPC477C / HMI IPC477C PRO
20 Compact Operating Instructions, 10/2010, A5E02368072-02

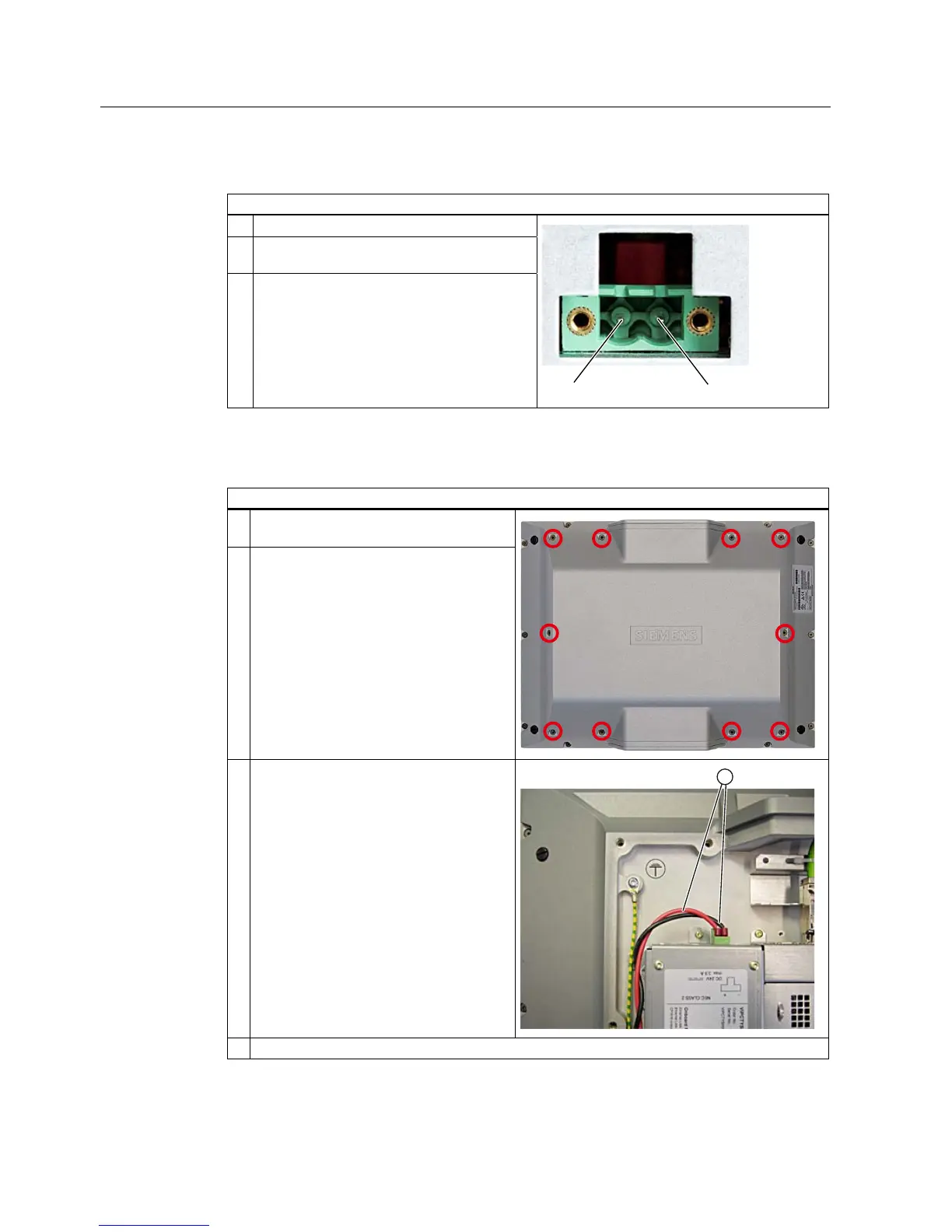

Connecting the IPC477C
Steps for connecting the IPC477C to the 24 V DC power supply
1. Switch off the 24 VDC power supply.
2. Connect the power supply using the connector
(included in the scope of delivery).
3. Connect the PE conductor as described in
section connecting the PE conductor
(Page 21).
3LQ 0LQ
The power consumption at 24 V amounts to 60 W maximum.
Connecting the IPC477C PRO
Steps for connecting the IPC477C PRO to the 24 V DC power supply
1. Remove the ten screws from the rear panel
of the housing.
2. Lift up the rear panel slightly and then
remove it.
3.
Connect the power supply
① using the
connector (included in the scope of
delivery).

4. Connect the PE conductor as described in section connecting the PE conductor (Page 21).
The power consumption at 24 V amounts to 60 W maximum.
