Compact Operating Instructions
1.6 Affixing Labeling Strips for Function Keys and Softkeys
SIMATIC HMI IPC477C / HMI IPC477C PRO
Compact Operating Instructions, 10/2010, A5E02368072-02
9
Preparing the labeling strips
1. Label the DIN A4 film with a laser printer, for example using the printing templates
provided on the Documentation and Drivers CD.
2. Cut the labeling strips along the pre-printed lines.
Note
Do not insert handwritten labeling strips until the ink has dried.
Affixing the labeling strips
Insert the labeling strips into the slots provided on the rear of the control unit.

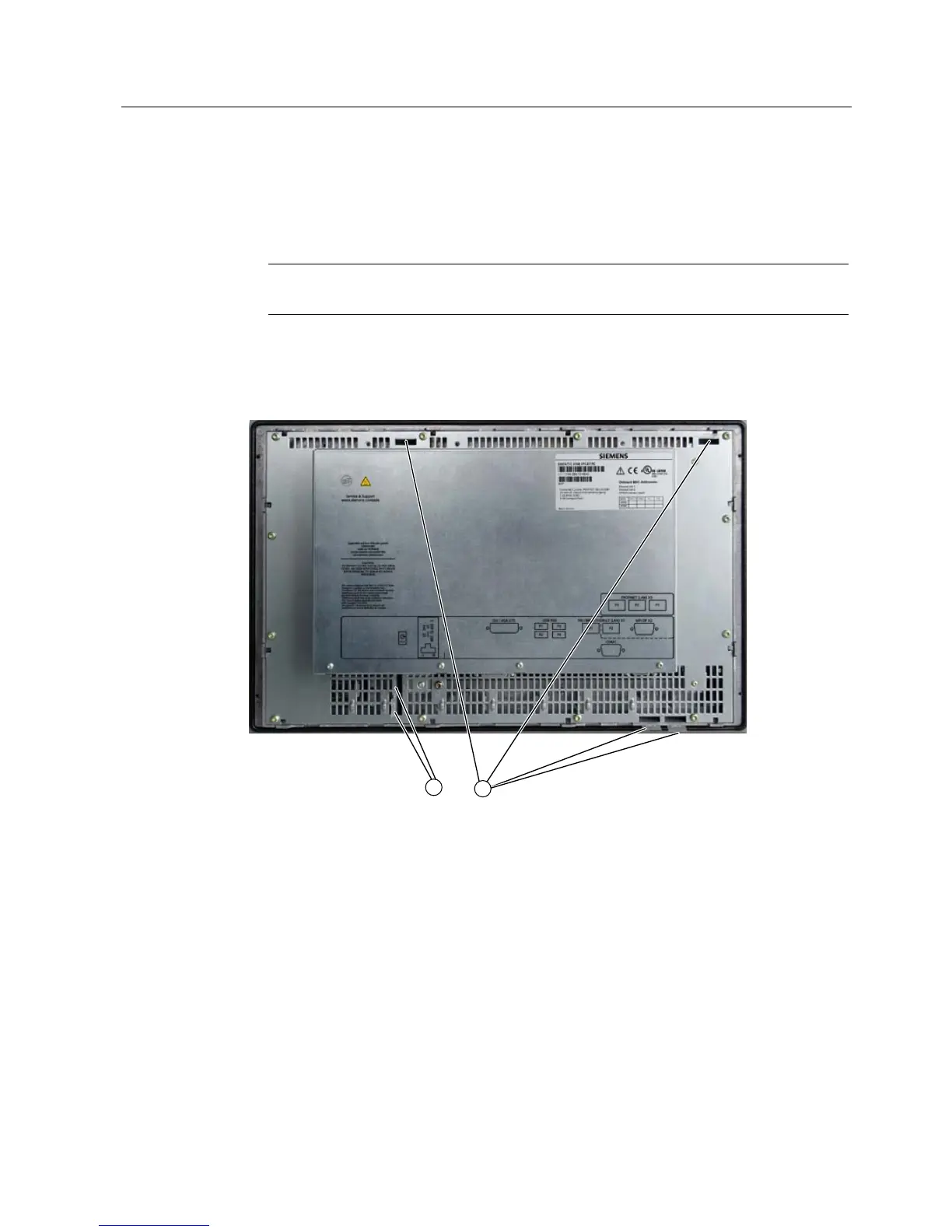

① Insert strips, vertical key rows
② Insert strips, horizontal key rows
Figure 1-1 12" touch screen device: Device rear with labeling strips
