RUGGEDCOM RS900G
Installation Guide
Chapter 3
Communication Ports
Port LEDs 13
Communication Ports
The RUGGEDCOM RS900G features eight standard 10/100Base-TX or 100/1000Base-TX copper RJ-45
Ethernet ports. It can also be equipped with two additional Gigabit Ethernet capable ports, for which many fiber
transceiver and copper options are available.
Each communication port type has a specific place in the RUGGEDCOM RS900G chassis.

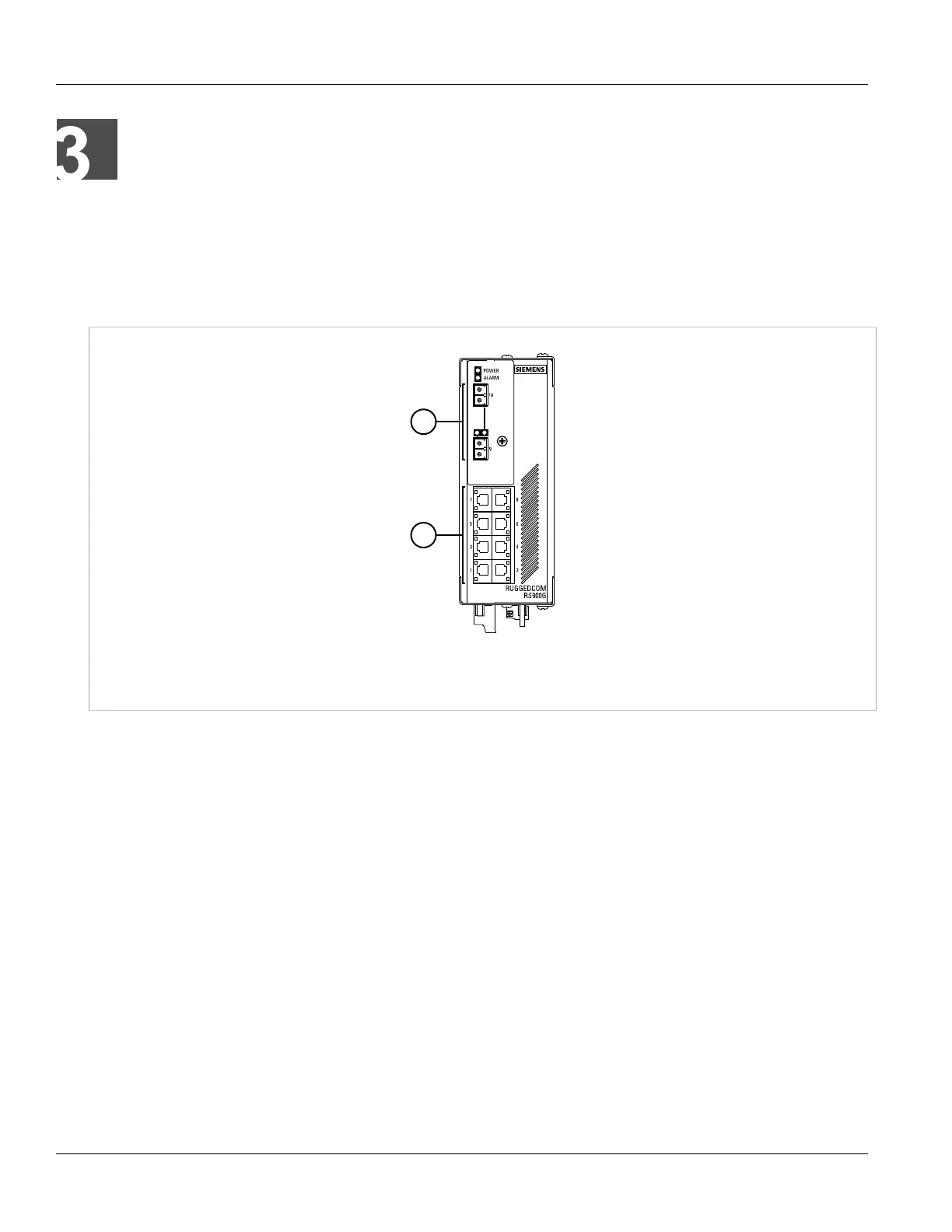

Figure 10: Port Assignment
1. SFP or Fiber Optic Ethernet Ports (Ports 9 and 10) 2. Standard Copper Ethernet Ports (Ports 1 to 8)
The following sections describe the available ports:
• Section 3.1, “Port LEDs”
• Section 3.2, “Copper Ethernet Ports”
• Section 3.3, “Fiber Optic Ethernet Ports”
• Section 3.4, “SFP Optic Ethernet Ports”
Section 3.1
Port LEDs
Each communication port features a dedicated LED to indicate the port's link/activity status. The LED is either
built into the port (ports 1 to 8) or adjacent to the port (ports 9 and 10).
