Installing the Device
2.4.2Mounting the Device to a Panel
To mount the device to a panel, do the following:
1. Loosen the screws for the panel adapters located at the top and bottom of the
device.
2
1
2
1
1
Panel Adapter
2
Screw

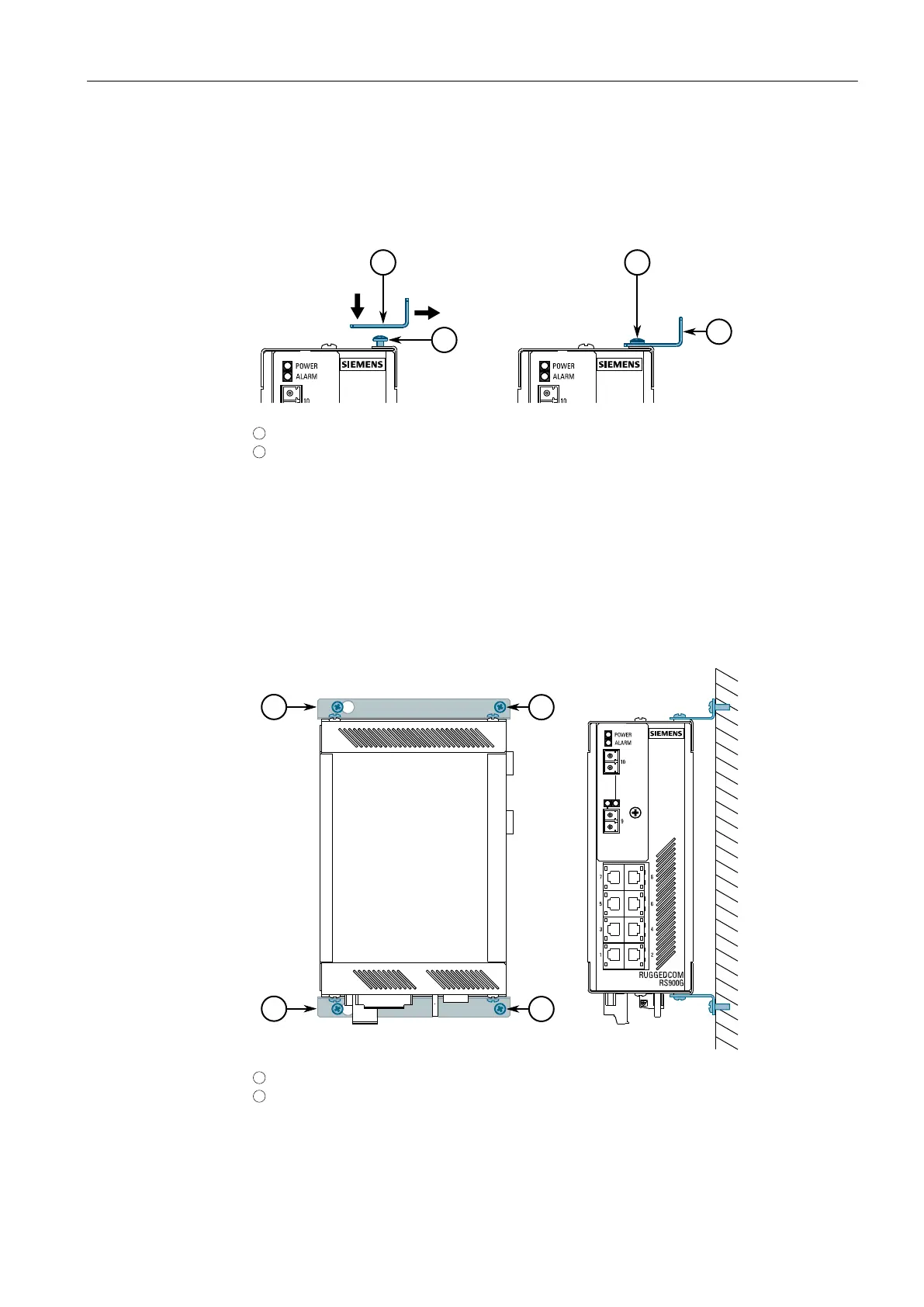

Figure2.3 Installing the Panel Adapters
2. For both adapters, align the slots with the screws and then slide the adapters
onto the device.
3. Tighten the screws to secure the adapters.
4. Place the device against the panel and align the adapters with the mounting
holes.
2
1
2
1
1
Panel Adapter
2
Screw
Figure2.4 Panel Mounting
