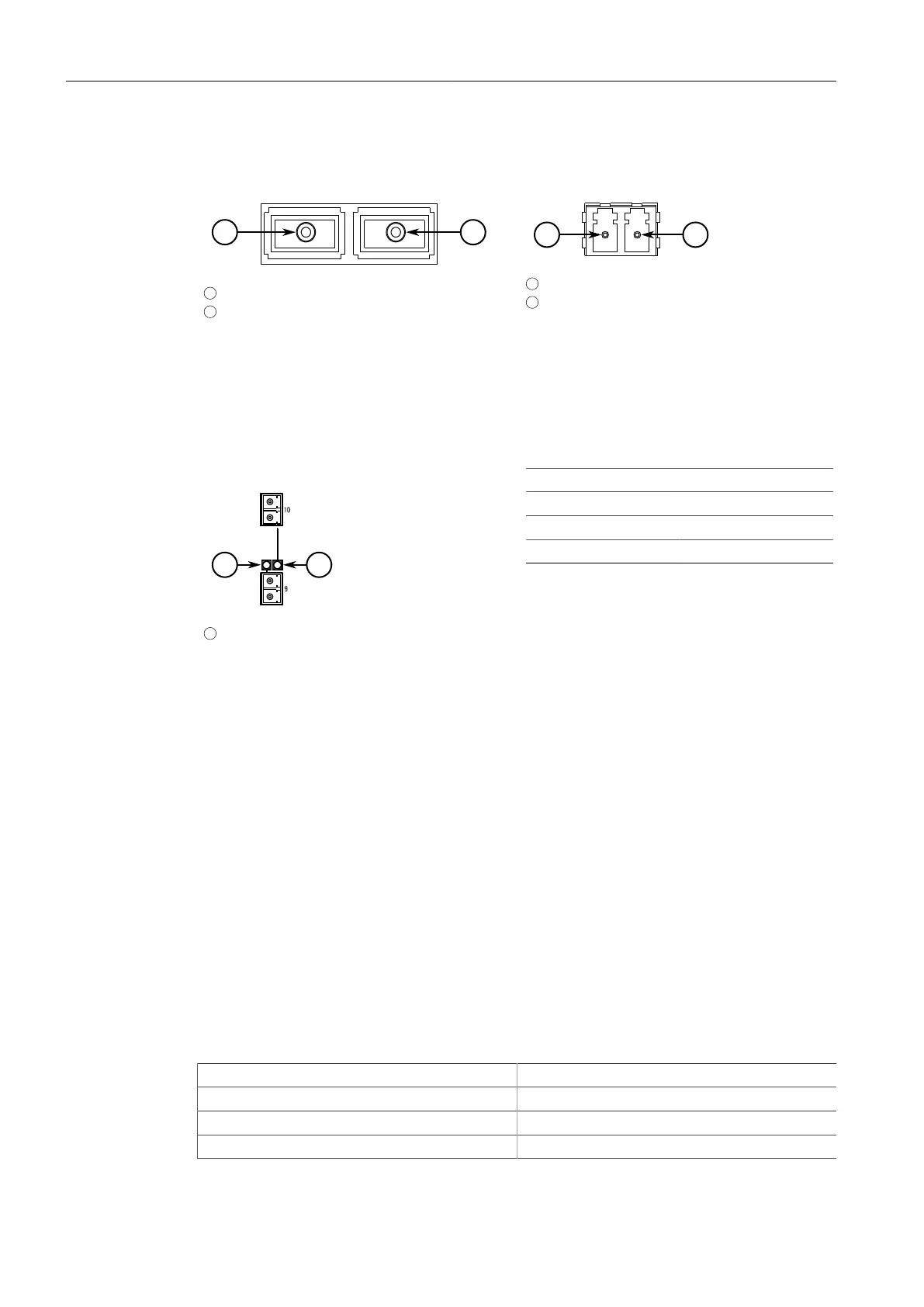

Communication Ports
4.3SFP Transceivers
Available Ports
21
1
Tx Connector
2
Rx Connector
Figure4.4 SC Connector

21
1
Tx Connector
2
Rx Connector
Figure4.5 LC Connector
LEDs
Each port features an LED that indicates its link/activity state.
11
1
Link/Activity LED
Figure4.6 LED for Fiber Optic Ethernet
Ports

State Description
Green (Solid) Link established
Green (Blinking) Link activity
Off No link detected
Specifications
For further specifications, refer to "Fiber Optic Ethernet Port Specifications (Page
24)".
4.3 SFP Transceivers
The RUGGEDCOM RS900G supports up to two Small Form-Factor Pluggable (SFP)
transceiver sockets, which are compatible with a wide array of SFP transceivers
available from Siemens.
LEDs
Each socket features an LED that indicates its link state.
State Description
Green (Solid) Link established
Green (Blinking) Activity
Off No link detected
RUGGEDCOM RS900G
Installation Manual, 01/2021, C79000-G8976-1025-08
21
