CP 1543-1

Operating Instructions, 12/2019, C79000-G8976-C289-08

Preface

Article number, validity and product names

This description contains information on the following product:

CP 1543-1

Article number 6GK7 543-1AX00-0XE0

Hardware product version 2

Firmware version V2.2

Communications processor for SIMATIC S7-1500

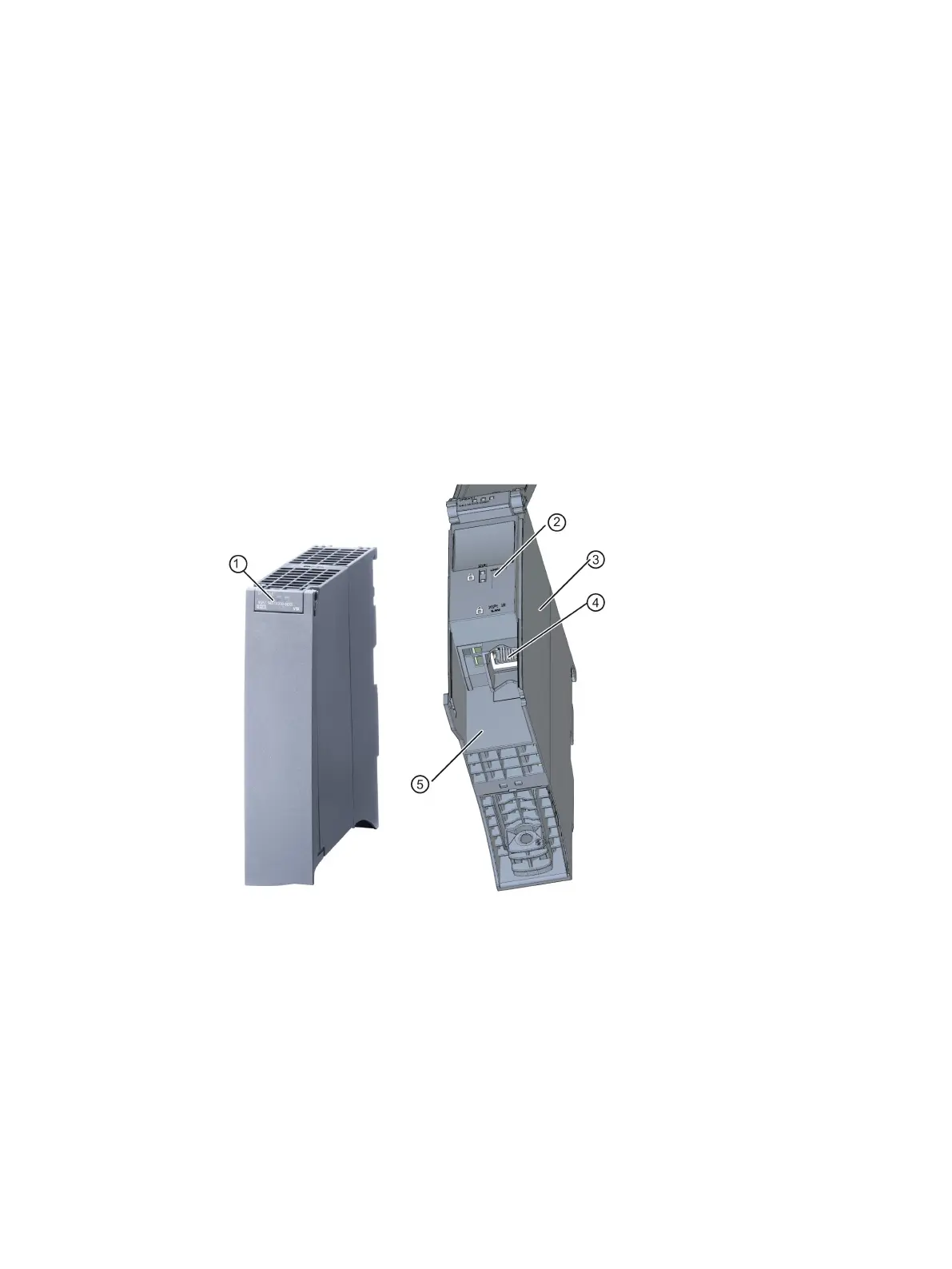

View of the CP 1543-1

①

LEDs for status and error displays

②

LED displays of the Ethernet interface for connection status and activity

③

Type plate

④

Ethernet port: 1 x 8-pin RJ-45 jack

The padlock icon symbolizes the interface to the external, non-secure subnet.

⑤

Label with MAC address

Figure 1 View of the CP 1543-1 with closed (left) and open (right) front cover

Address label: Unique MAC address preset for the CP

The CP ships with a default MAC address:
