Configuring with Web Based Management
5.3 "Wizard" menu
SCALANCE W780/W740 to IEEE 802.11n Web Based Management
72 Configuration Manual, 03/2015, C79000-G8976-C267-08

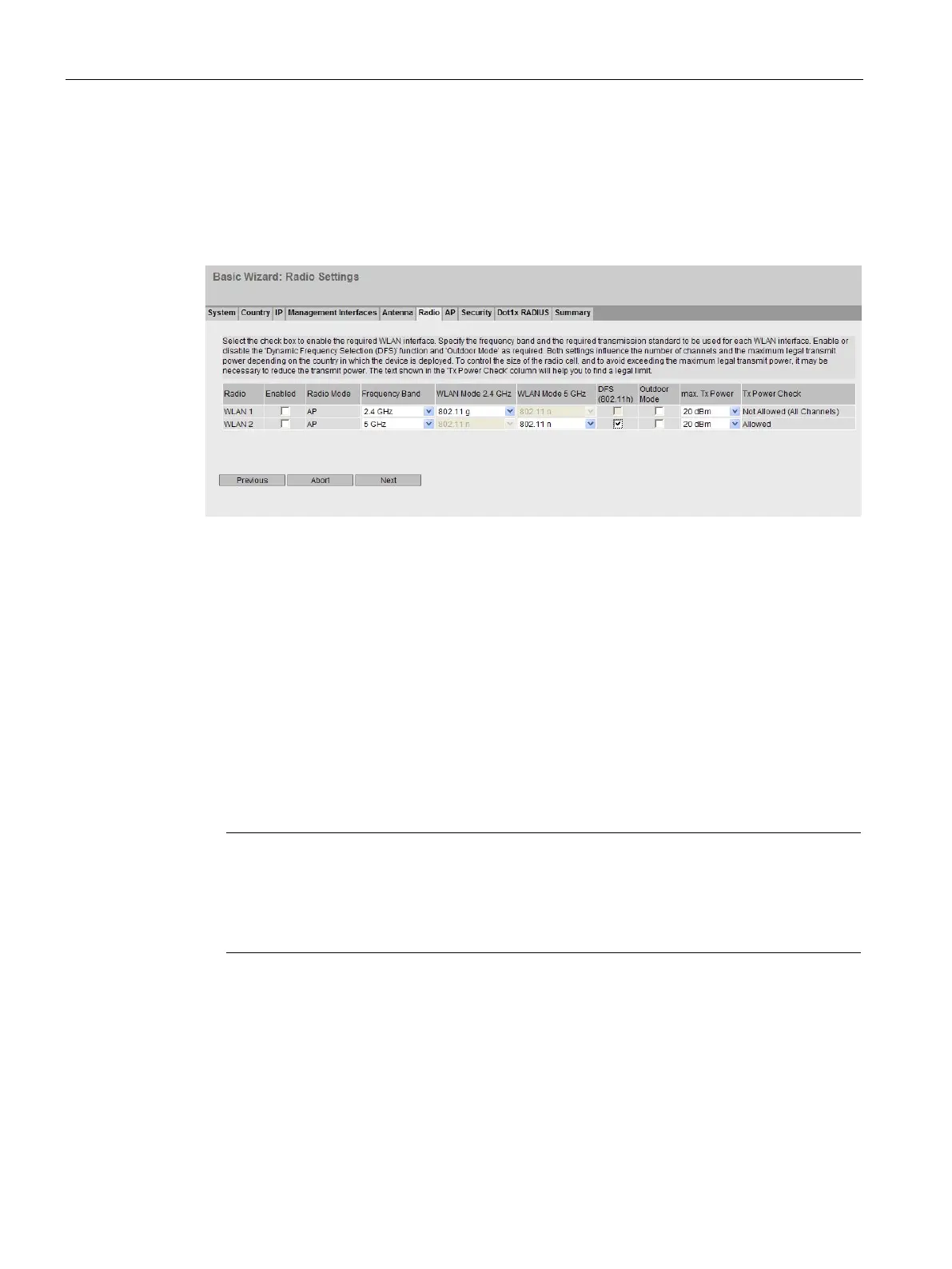

Radio Settings
Introduction
On this Basic Wizard page, you specify the configuration for the WLAN interfaces.
This table contains the following columns:
●
Shows the available WLAN interfaces.
●
Enable or disable the WLAN interface. The WLAN interfaces are disabled when the
device is supplied.
●
Shows the mode of the WLAN interface.
●
Specify the frequency band. In client mode, dual-frequency operation is also possible.
Note
Configuring WLAN interfaces of the W786-2IA RJ-45 for different frequency bands
If both WLAN interfaces are configured for the same frequency band on this device, there
may be mutual influence or interference. This applies in particular when there is a high
data throughput.
●
Select the required transmission standard for the configured frequency band.
– WLAN Mode 2.4 GHz
Specify the transmission standard for the 2.4 GHz frequency band. The selection
depends on the country setting.
– WLAN Mode 5 GHz
Specify the transmission standard for the 5 GHz frequency band. The selection
depends on the country setting.
