Siemens SIMATIC PP7 User Manual

4-2
PP7, PP17-I, PP17-II Equipment Manual
Release 06/98

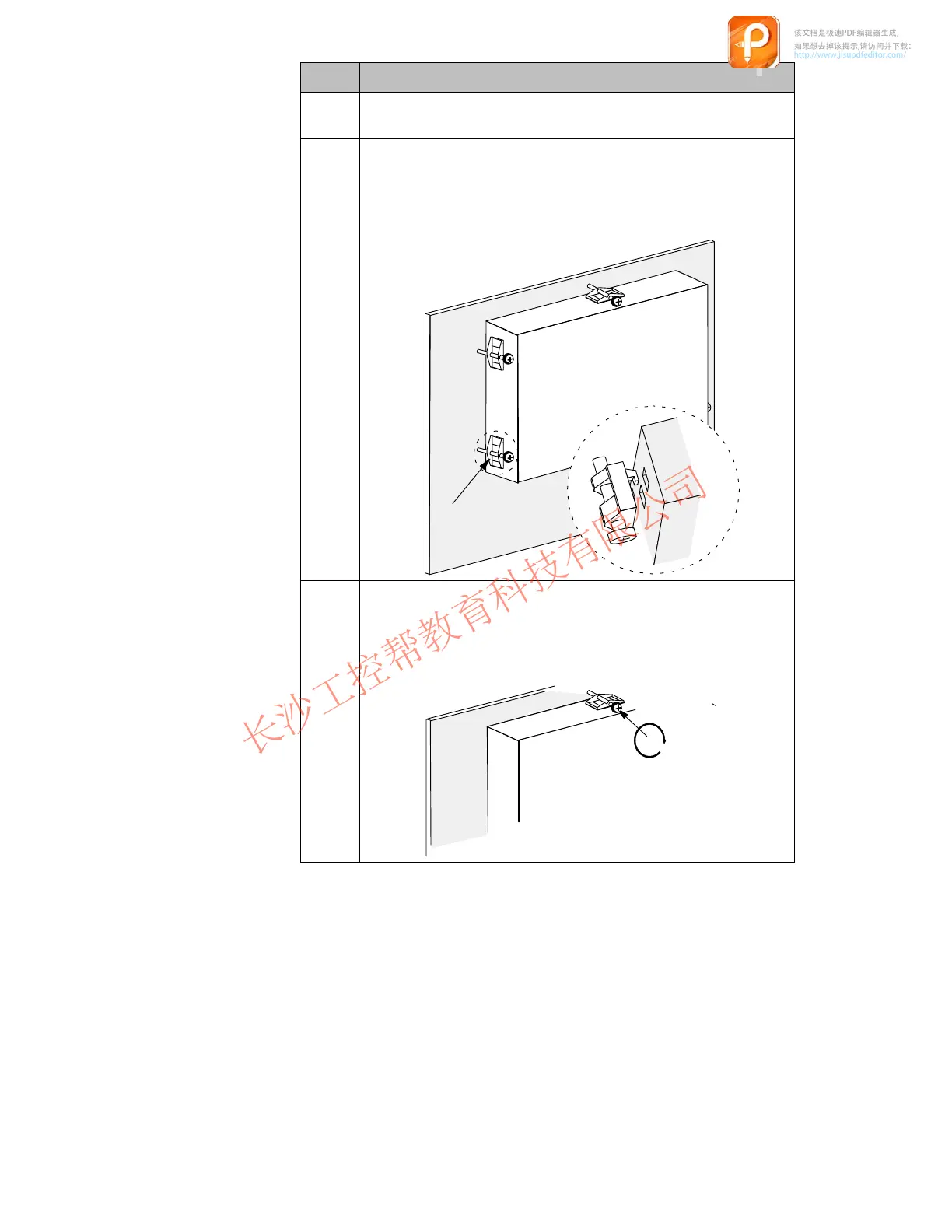

Step Action
1 Insert the Push Button Panel from the front in the mounting cut-
out provided.
2 Insert the retaining hooks of the five enclosed screw-type clamps
Ê in the corresponding openings in the Push Button Panel
housing. Alternative openings are provided on the sides of the
Push Button Panel to enable the installation of several units beside
each other without leaving any gaps between them.
Front panel
Push
Button
Panel
Ê
3 Secure the Push Button Panel in the front panel Ë from the rear
using a screwdriver. Note:
– Do not overtighten the screws to avoid damage.
Front panel
Ë
Push
Button
Panel
Front panel thickness: max. 6 mm
Mechanical instal-
lation of the Push
Button Panel
