Commissioning
SIMATIC Rack PC IL 40, Getting Started
2-4 A5E00171493-02

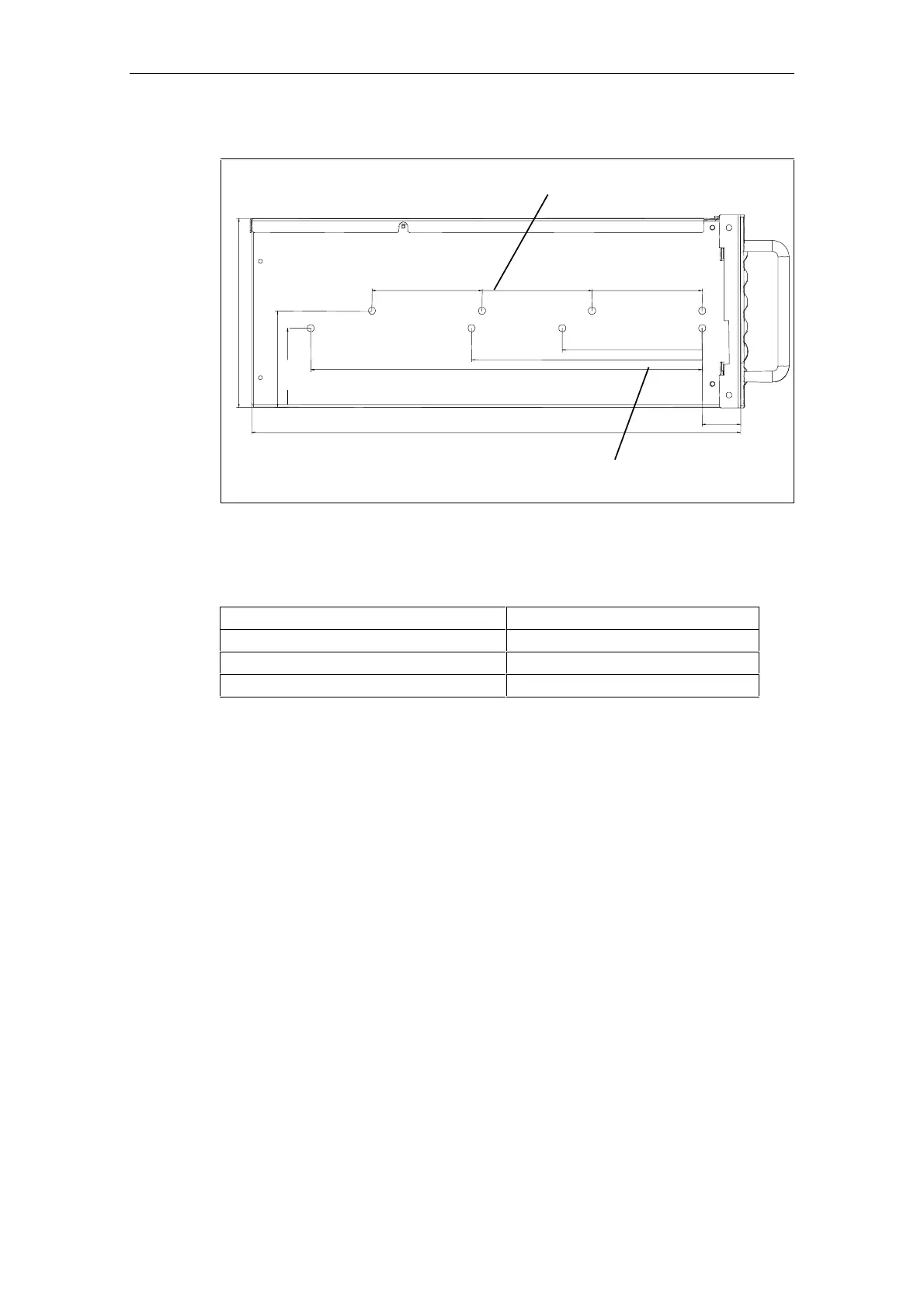

Dimensioned Drawing for using telescopic rails
35
127
209,6
355,6
100
100
100
72,6
88,5
173,3
444,5
Dimensions for telescopic rails
by the company Rittal type 3659
Dimensions for telescopic rails by the
company Schroff type 69000-122
Technical Specifications of the Telescopic Rails
Load per pair minimum 30 kg
Pull-out length for complete pull-out minimum 470 mm
Rail thickness maximum 9,7 mm
Fixing screws M5 x 6mm
The fixing screw of the telescopic rail should not go beyond a maximum of 5 mm
into the housing.
