5.

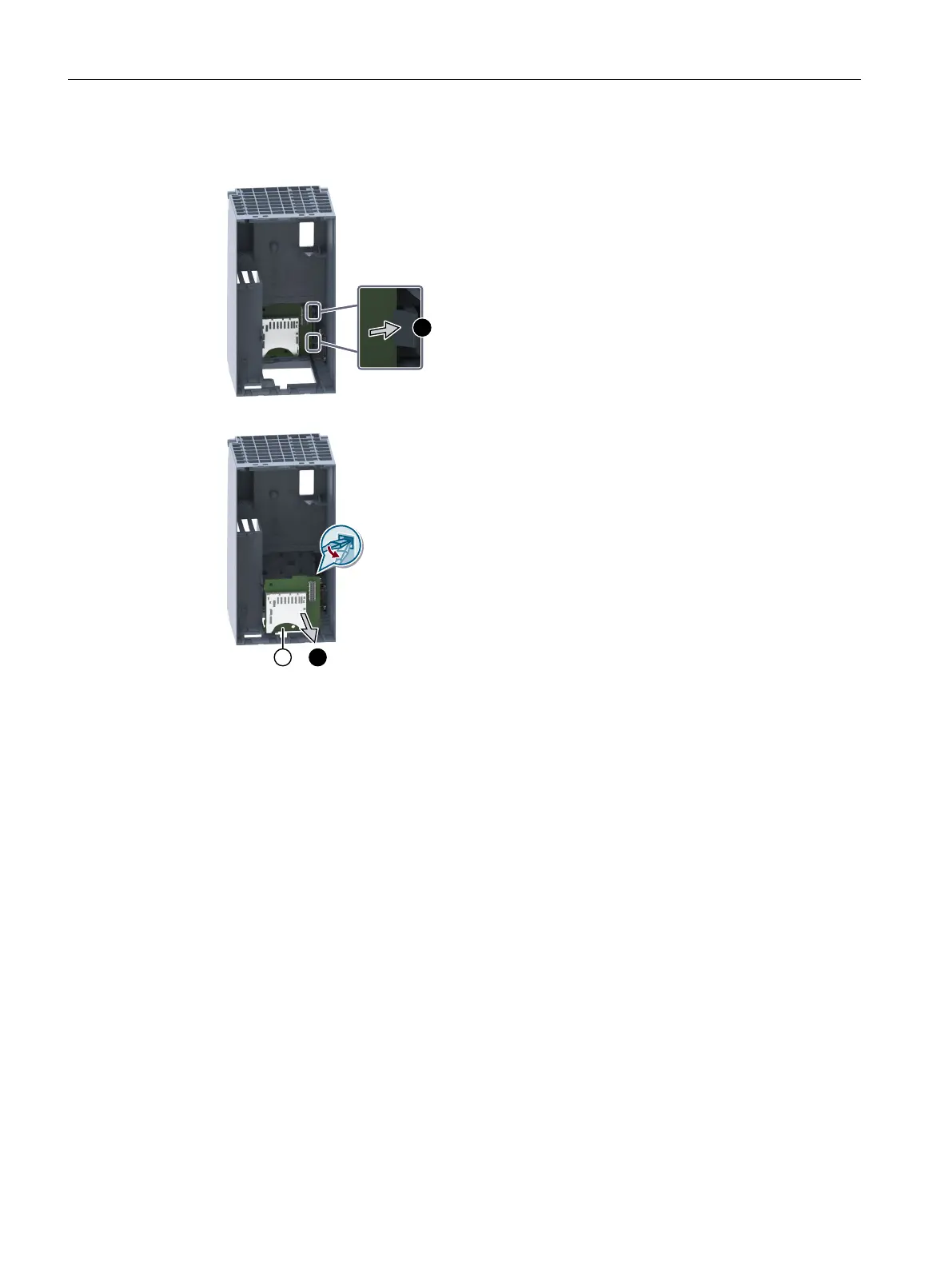

Detach the assembled PCB (2d) from the front enclosure (1b) by pressing the snap locks
with a flat-tip screwdriver.

6.
Remove the assembled PCB (2d) from the enclosure.

