Disassembling the enclosure

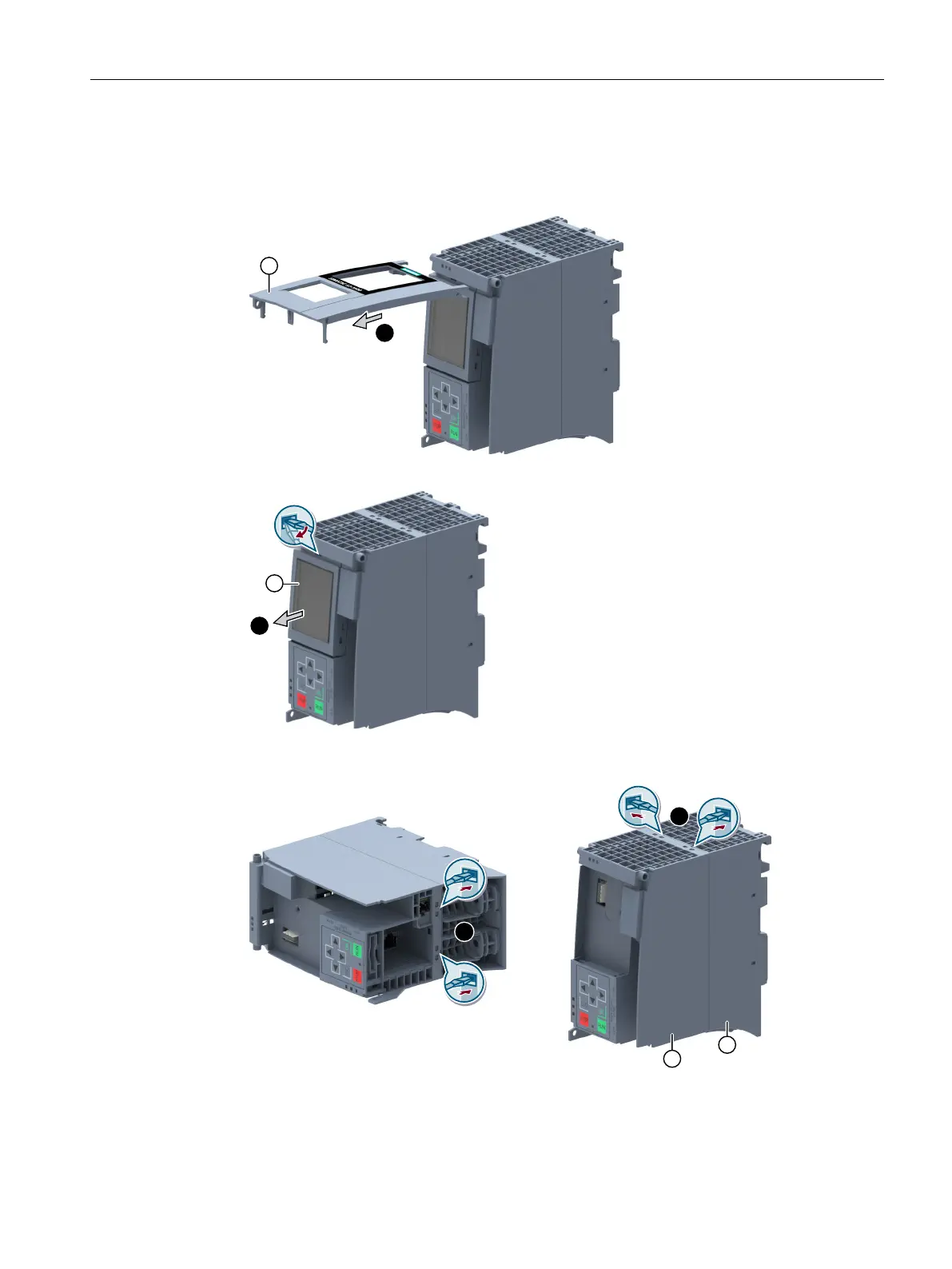

Follow these steps for disassembly:
1.
Pull the front flap (4) up 90 degrees. Pull off the front flap.


2.
Remove the display (3) with a flat-tip screwdriver.


3.
To open the enclosure (1a, 1b), use a flat-tip screwdriver to press the snap locks on the
top and bottom.


