Configuring the access to the “Shared Device”
The previously implemented and networked ET 200SP station shall now be
configured as “Shared Device”.
Proceed as follows:
1. In the graphical view, select the ET 200SP station and perform a double click.
Mark the head module to display the properties of the interface module in the
inspector window.
2. At “Modules parameters”, select “Shared Device”. Here, you can determine
which IO controller can access the different modules.

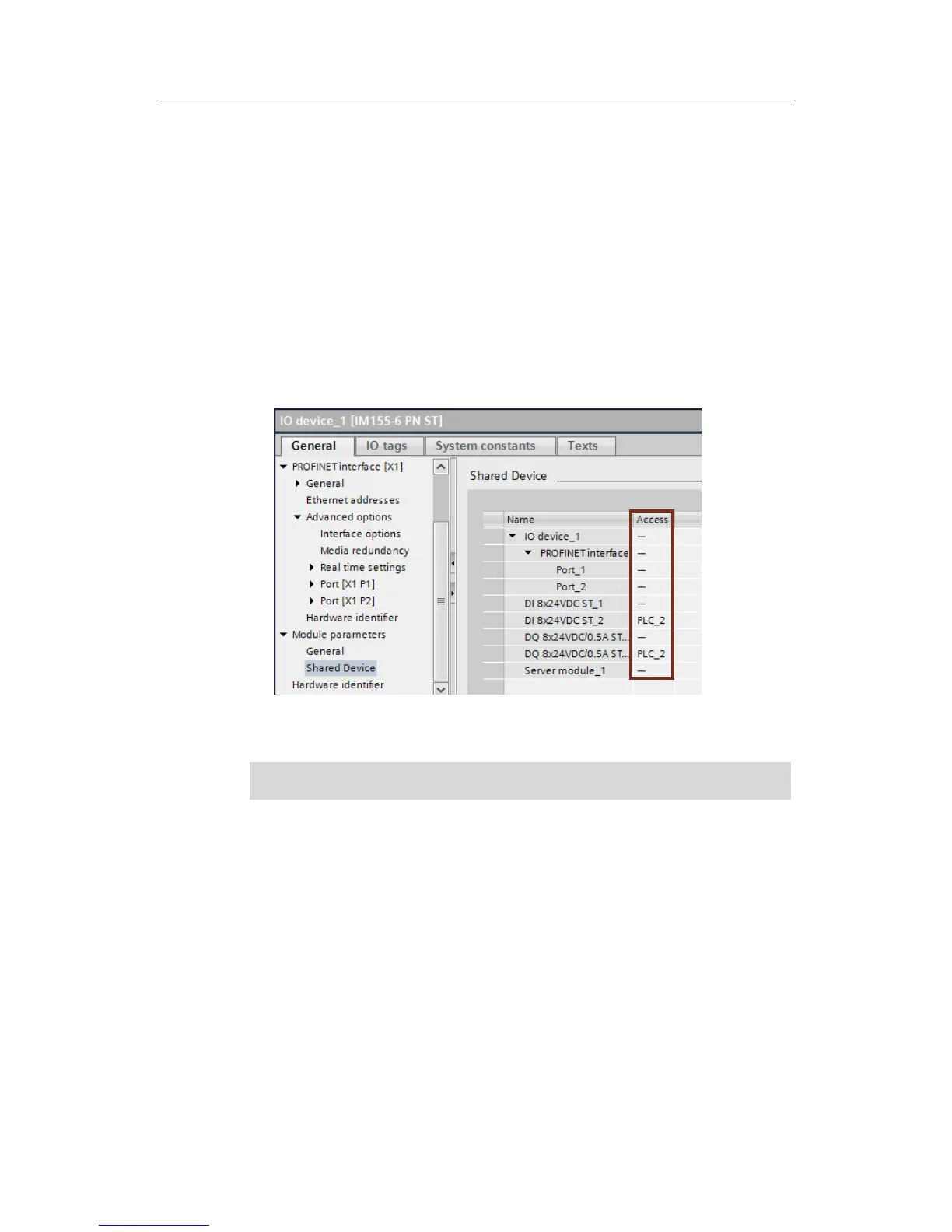

In the following image, only the modules “DI 8x24VDC ST_2” and
“DQ 8x24VDC/0.5A ST_2”, are assigned to the IO controller “PLC_2”.
For this, select the setting “PLC_2” in the “Access” column.
Figure 3-6
Result
The CPU 1511-1 PN has now access to the modules assigned to it.
