Siemens SIMATIC S7-300 Module data Getting Started

SM331;AI 8x12 Bit Getting Started Part 2: Voltage and PT100
Getting Started, 11/2006, A5E00264161-02
3-1
Task
3
3.1 Example of an application
Overview
The Getting Started manual leads you all the way through an example application during
which you will connect the following four sensors:
● A pressure sensor, which is connected to a voltage measuring transducer (±5V).
● Three resistance thermometers, type PT100
They will initiate fault diagnostics and hardware interrupts. Analog input module SM331,
AI8x12 Bit (order number 6ES7 331-7KF02-0AB0) is available to you.
The module can initiate diagnostic alarms and hardware interrupts. It can process up to 8
analog inputs. Various types of measurements can be set for each module (e.g. current
measurements, a voltage measurement, PT 100, thermocouple).
37
37
37
9'&
9$&+]
9$&+]
36 &38 60
RU
([DPSOHVWDWLRQ
9ROWDJHPHDVXULQJWUDQVGXFHU
3UHVVXUHVHQVRU
&DOLEUDWLRQ
GHYLFH
3URJUDPPLQJGHYLFH
03,FDEOH

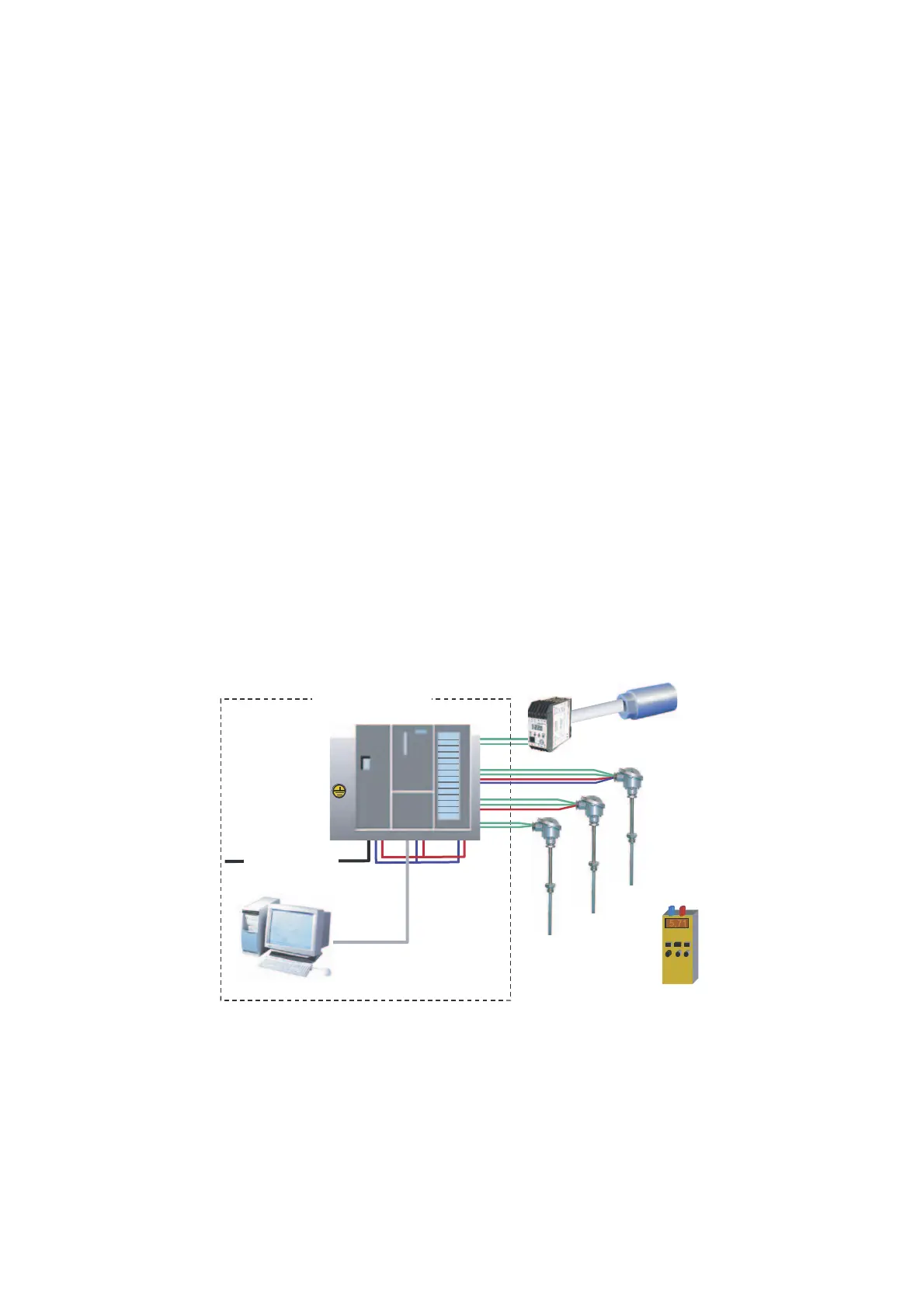

Figure 3-1 Components of the example station

Siemens SIMATIC S7-300 Module data Specifications

General

Series	S7-300
Manufacturer	Siemens
Protection Class	IP20
System	SIMATIC S7-300
Digital Inputs	Varies by module
Digital Outputs	Varies by module
Analog Inputs	Varies by module
Analog Outputs	Varies by module
Central Processing Unit	Varies by CPU model
Supply Voltage	24V DC or 120/230V AC
CPU Type	Varies (e.g., CPU 312, CPU 315, etc.)
Memory	Varies by CPU model
Communication Interfaces	MPI, PROFIBUS
Programming Languages	LAD, FBD, STL, SCL, GRAPH
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 70°C
Relative Humidity	10% to 95% (non-condensing)
