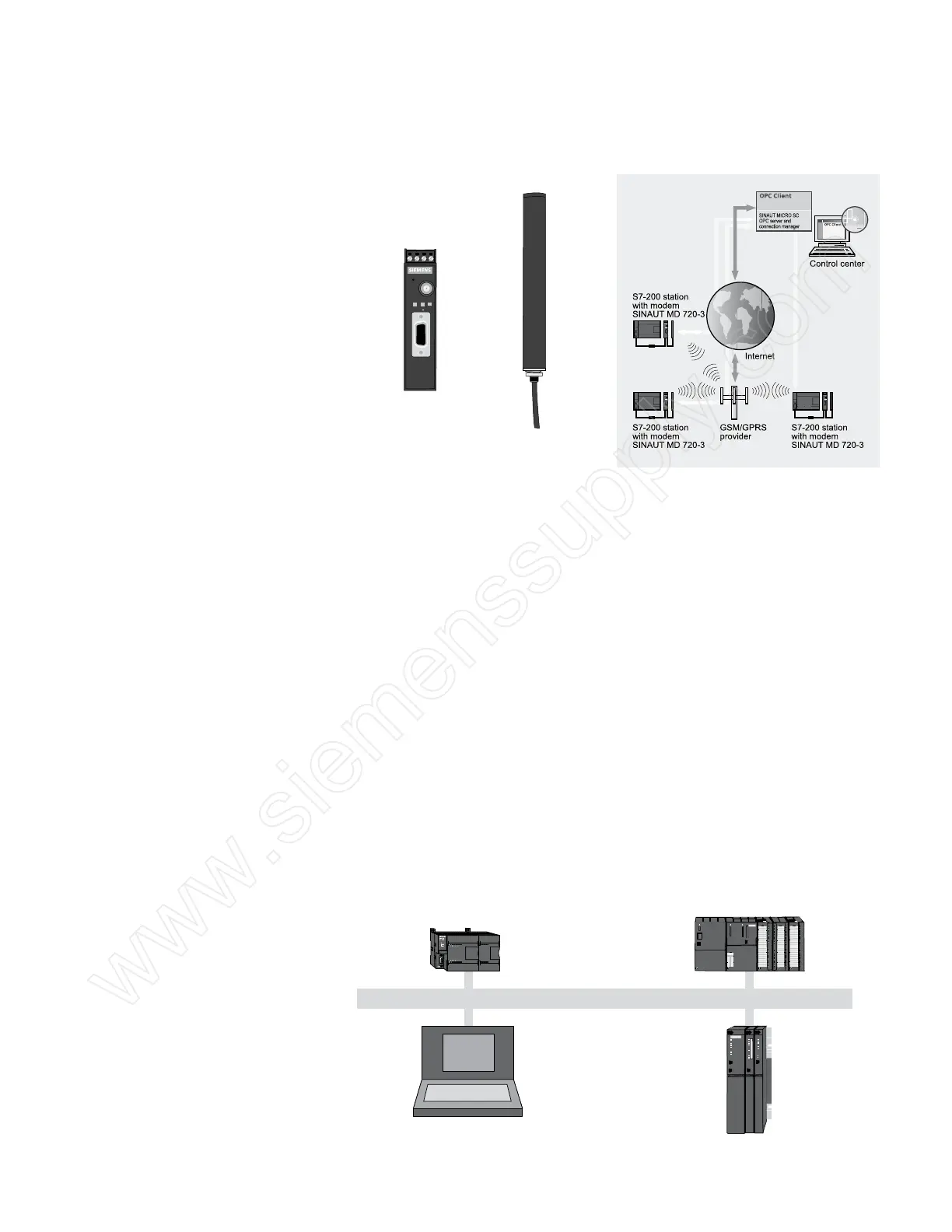

The
SINAUT MD720-3 GSM/GPRS Modem module and
associated
ANT794-4MR antenna are the hardware elements
used to connect an S7-200 PLC into a SINAUT Micro system.
SINAUT Micro SC software is also required.
SET
S C
O
RS232
X1
SINAUT
MD720-3
720-3AA00
SINAUT MD 720-3
GSM/GPRS Modem Module
Antenna
WinCC flexiible,
WinCC
CP 243-1, CP 243-1 IT Industrial Ethernet provides a proven means of networking
Communication Processors computers and a variety of intelligent devices. CP 243-1 and CP
243-1 IT communication processors are used to connect an
S7-200 PLC to an
Industrial Ethernet network.
CP 243-1 and CP 243-1 IT communication processors can be
used to connect an S7-200 PLC via Industrial Ethernet to a
computer running STEP 7 Micro/WIN. This allows the S7-200
PLC to be configured, programmed, and diagnosed remotely.
In addition, an S7-200 PLC connected to an Industrial Ethernet
network can communicate with S7-200, S7-300, and S7-400
PLCs and a variety of other devices.
The IT functions of the CP 243-1 IT Internet module simplify the
process of setting up a control system that can email diagnostic
information or transfer files using Internet protocols.
SIMATIC S7-400 PLC
SIMATIC S7-300 PLC
Industrial Ethernet
SF/DIAG
CP 243-1
Ethernet CP
243-1EX00-0XE0
S7-200 PLC with
CP 243-1 or CP 243-1 IT
Communication Processor
Programming Device (PG)
or Computer
www.siemenssupply.com

Siemens Simatic S7 Series Specifications

General

CPU	Varies by model (e.g., S7-300, S7-400, S7-1200, S7-1500)
Communication Interfaces	PROFIBUS, PROFINET, Ethernet, MPI
Programming	TIA Portal, STEP 7
Programming Languages	LAD, FBD, STL, SCL, GRAPH
I/O Modules	Digital, Analog, Specialty modules available
Operating Temperature	0°C to 60°C (standard models)
Mounting	DIN rail mounting
Operating Voltage	24V DC or 120/230V AC (varies by model)
Protection Class	IP20 (standard models)
Memory	Varies depending on the S7 model. Includes work memory (RAM) for program execution, load memory (EEPROM or Flash) for program storage, and system memory for operating system functions. Memory sizes range from kilobytes to megabytes.
