Siemens Simatic S7 Series User Manual

70
SIWAREX MS Weighing SIWAREX MS Weighing module provides a simple, easy
Module to install approach for weighing and force measurement
applications. SWAREX MS Weighing module is designed to
measure the voltage produced by sensors commonly used to
measure weight, force, or torque.
SIWAREX MS is easily integrated into an S7-200 PLC system
as an expansion module. This makes information obtained from
SIWAREX MS available to other components of the automation
system. In addition, Siemens offers a wide variety of compatible
sensors and other components.

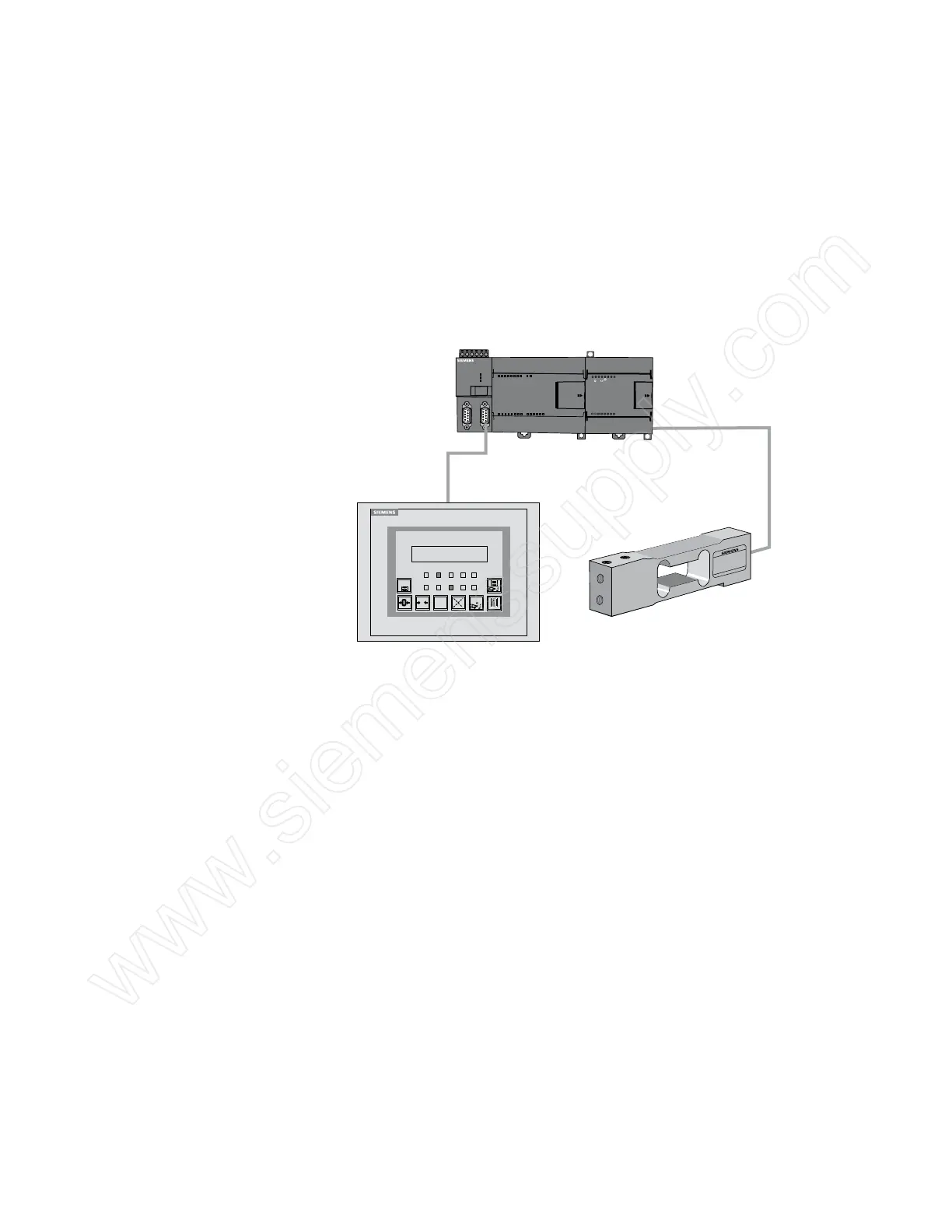

S7-200 PLC with SIWAREX MS Module
.0
00
.1 .2 .3 .4 .5 .6 .7 .0 .1
.0
.1
.2 .3 .4
.5
.6 .7 .0
.1
.2 .3 .4
.5
I0
I1
CPU 224XP
DC/DC/DC
7MH4930
-0AA01
+24
VDC
SF
SIW
AREX MS
01
214-2AD23-0XB0
SF/DIAG
RUN
STOP
SIMATIC
S7 - 200
PORT
0
PORT
1
NET
MAX
I
>0<
p
---I
-
-
Touch Panel TP 177micro
SIMATIC PANEL
TOUCH
SIWAREX MS
12.78 kg
Lim 1
Lim 2
T pT +9e
>0<
><
wrp min err
erase
list
T
T T
p
o
SIWAREX R Load Cell
SIW
AR
EX
R
W
a
g
eze
lle
/ Load Cel
l
www.siemenssupply.com

Siemens Simatic S7 Series Specifications

General

CPU	Varies by model (e.g., S7-300, S7-400, S7-1200, S7-1500)
Communication Interfaces	PROFIBUS, PROFINET, Ethernet, MPI
Programming	TIA Portal, STEP 7
Programming Languages	LAD, FBD, STL, SCL, GRAPH
I/O Modules	Digital, Analog, Specialty modules available
Operating Temperature	0°C to 60°C (standard models)
Mounting	DIN rail mounting
Operating Voltage	24V DC or 120/230V AC (varies by model)
Protection Class	IP20 (standard models)
Memory	Varies depending on the S7 model. Includes work memory (RAM) for program execution, load memory (EEPROM or Flash) for program storage, and system memory for operating system functions. Memory sizes range from kilobytes to megabytes.
