2.2 Basics of counting, measuring and position input (TM Count, TM PosInput, Compact CPU)
Counting, measurement and position detection
40 Function Manual, 12/2017, A5E32009889-AG
Synchronization at signal N
You can trigger synchronization at signal N at the encoder input either directly or depending
on the status of a digital input.

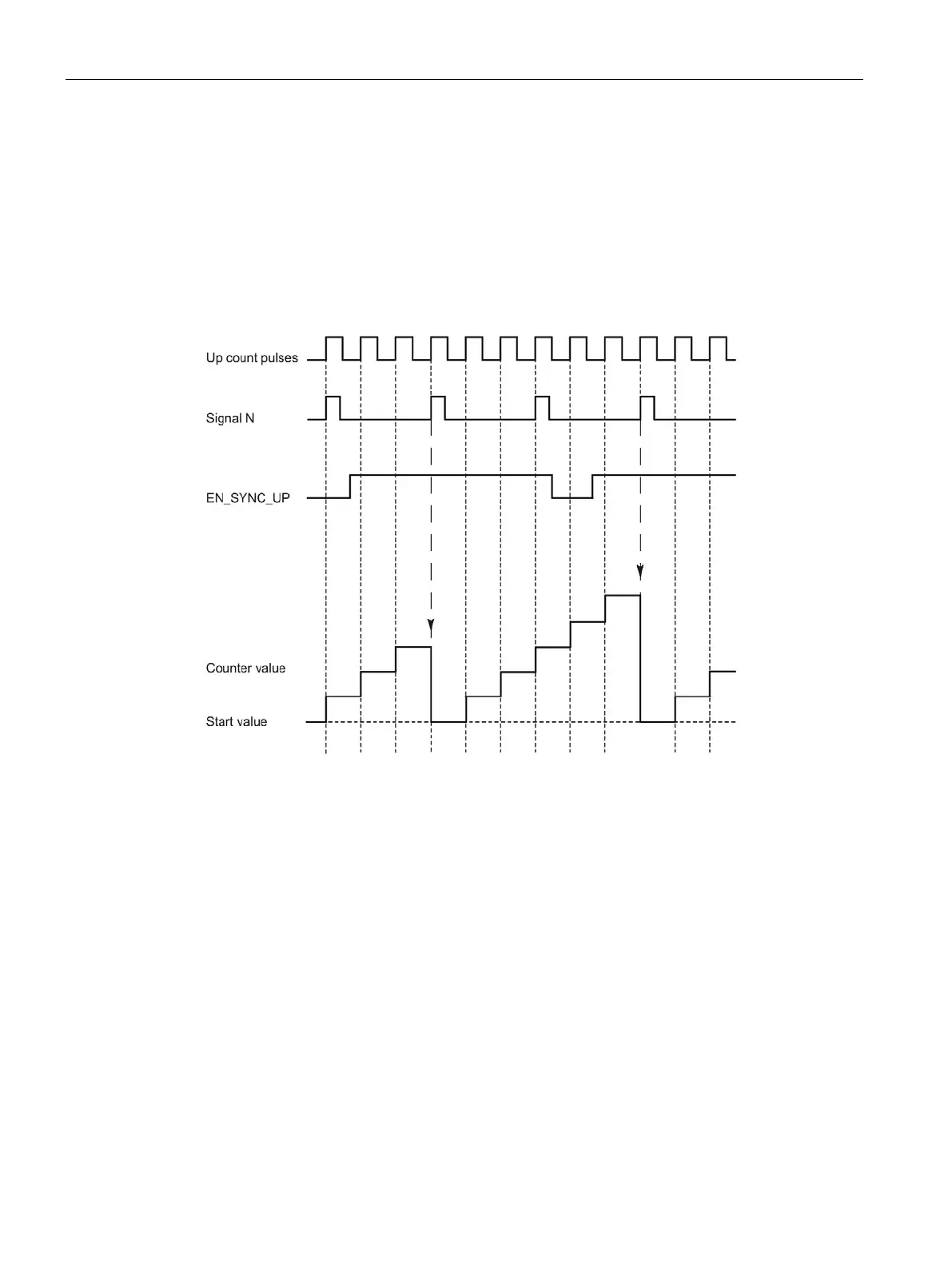

The figure below shows an example of single synchronization at signal N (not dependent on
a digital input):
After synchronization is enabled for counting in an upwards direction, the counter is
synchronized at the first signal N. After resetting and setting the control bit (Page 185)
EN_SYNC_UP once again, the counter can be synchronized again.
