18BMaintenance
Standard motors
62 56100000002001, 02/2013
Fan
Take care not to damage the snapping mechanisms on fans that are equipped with
these. To ensure this, the fans should be heated to a temperature of approximately
50 °C around the area of the hub. If any damage is caused, request new parts.
Fan cover

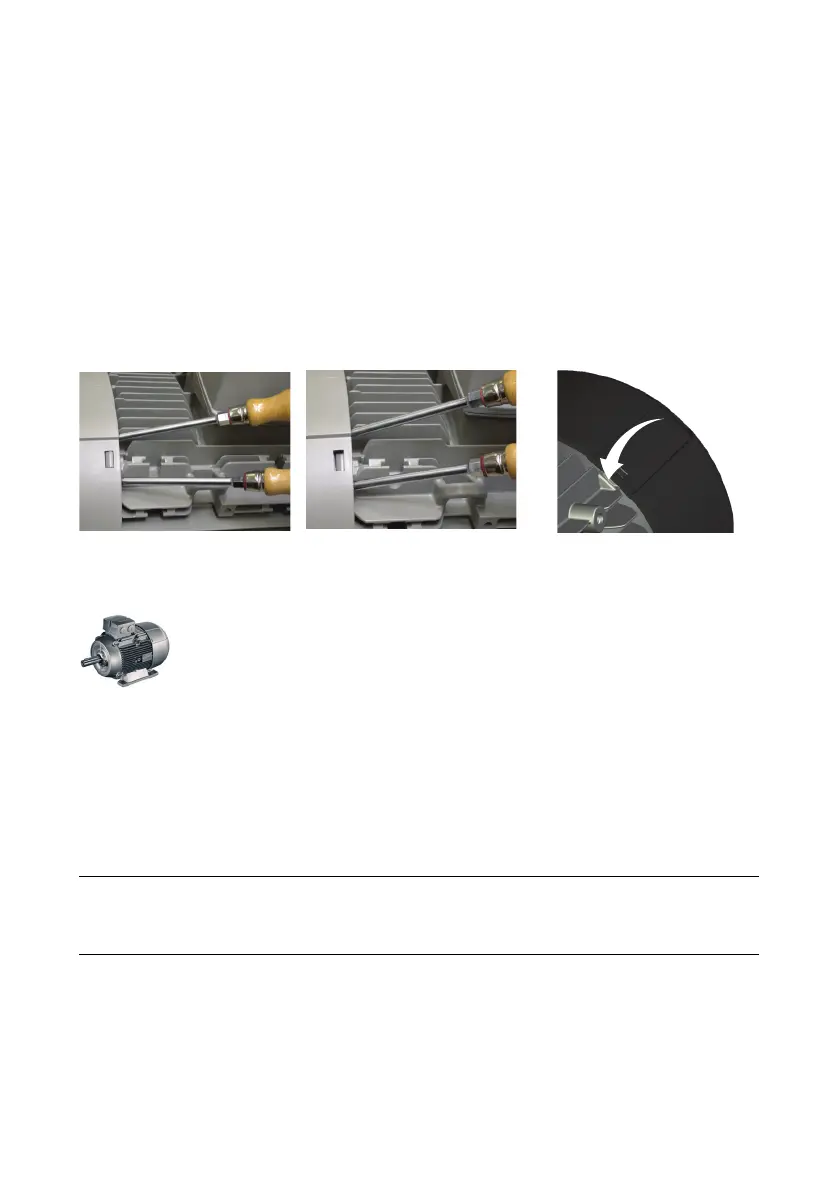

● Carefully lever the snap openings on the cover out of the snap-in lugs one after
the other; do not apply the lever directly under the web (risk of breakage).
● Do not damage the snap mechanisms. If any damage is caused, request new
parts.
Canopy; incremental encoder under the canopy
Loosen the fixing screws on the external surface of the protective cover.
Under no circumstances should the spacing bolts or the mounting bracket be
disassembled or forcibly separated from each other or the cover. Forcibly removing
or separating can destroy the distance bolts, the connecting elements of the
mounting bracket or the fan cover.
9.2.4 Installation
Note
Avoid damaging the windings protruding out of the stator enclosure when fitting the
end shield.
