Note
SIMOTION
D445‑2 DP/PN and D455‑2 DP/PN must be operated with a double fan / battery
module for heat dissipation. Without this module, the Control Units will not start up and cannot
be commissioned.
Information on how to install the double fan/battery module can be found in "Supplementary
system components", in Section
Installing the fan/battery module (Page 99).
Note
With the D445‑2 DP/PN and D455‑2 DP/PN, the spacers can only be removed with the
"external air cooling" installation method. In this installation method, the cooling fins are
inserted through a cutout in the rear cabinet panel.
For further details, see the
SIMOTION D4x5‑2 Commissioning and Hardware Installation
Manual.
2.7 Type plates
Side-mounted type plate

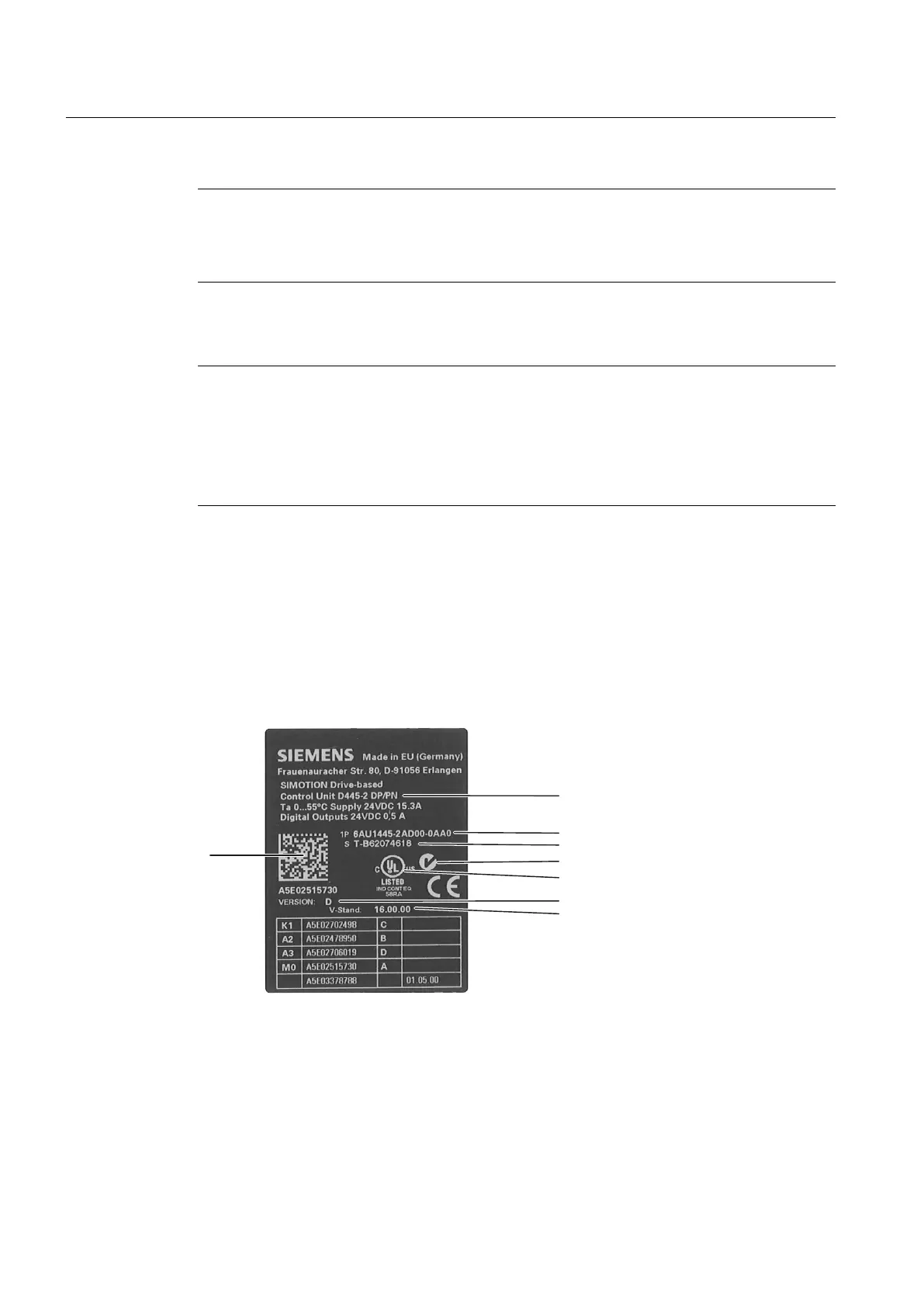

The following figure shows the information contained on the type plate mounted on the side
of the housing.
0RGXOHGHVLJQDWLRQ
'DWDPDWUL[FRGH
2UGHU1R
6HULDOQXPEHU
&7LFN
F8/XV
+:UHYLVLRQOHYHO
%,26YHUVLRQ
Figure 2-5 Type plate using the D445-2 DP/PN as an example
Description
2.7 Type plates
SIMOTION D4x5-2
