Dimensional diagrams of Motor Modules
Instruction for installation of the liquid-cooled chassis of Sinamics S120 power units into cabinets for marine drive applications,
12/2016, 4BS0808-003
17

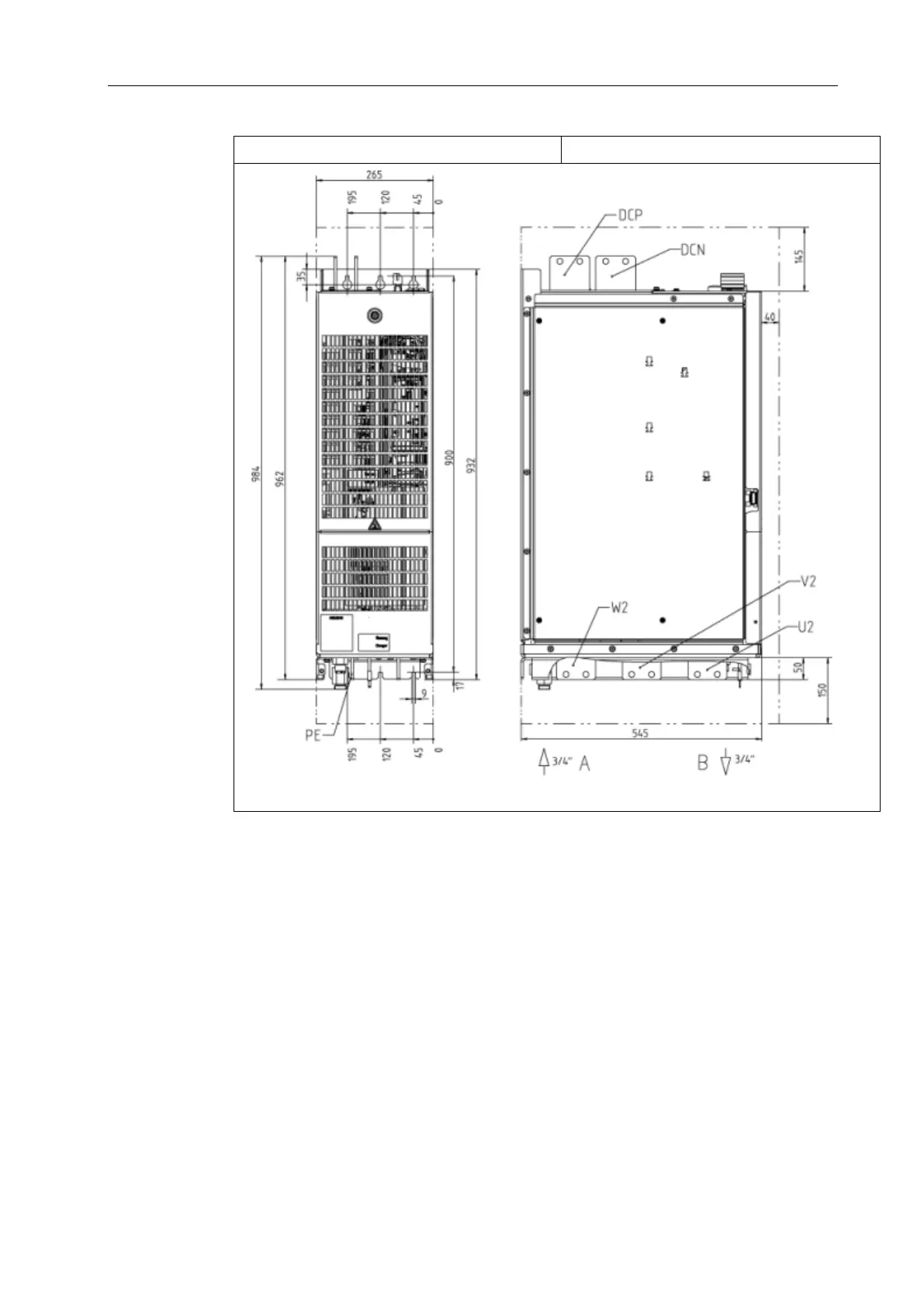

Table 4: Dimensional diagram of Motor Module, Size HXL
Front view
Side view
The ventilation clearances to be observed are characterized by the dotted line.
