SINUMERIK 802D sl Operating and Service Training Manual Page 5

C76

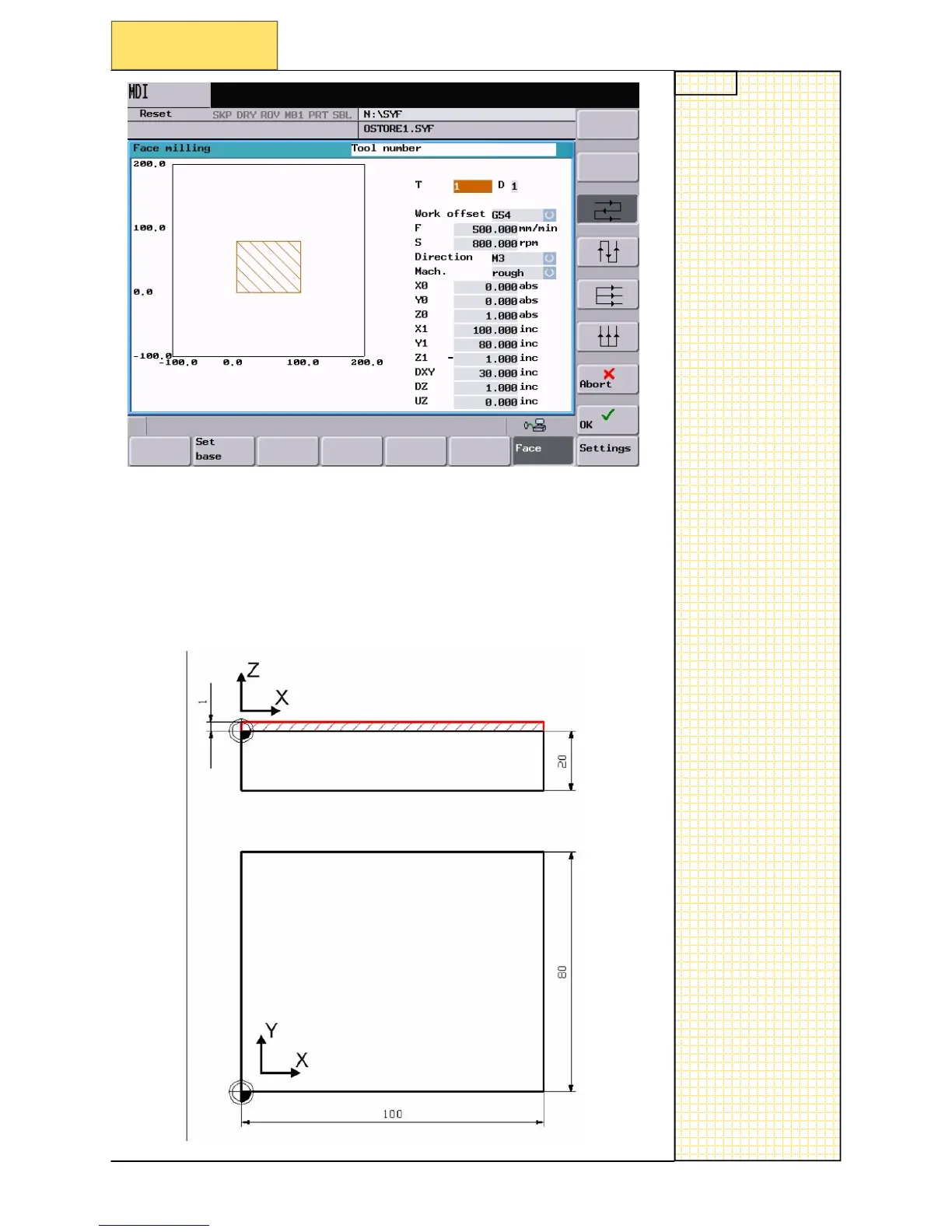

The type of machining can be selected in the “Mach“ dialog:

Rough - Roughing with more passes

Fine - Finishing

The values in the above dialog are for the following example:

Section 4

Face milling
