Managing the license key
This file contains the license key information of the control system. You can import/export it
for backup purpose.

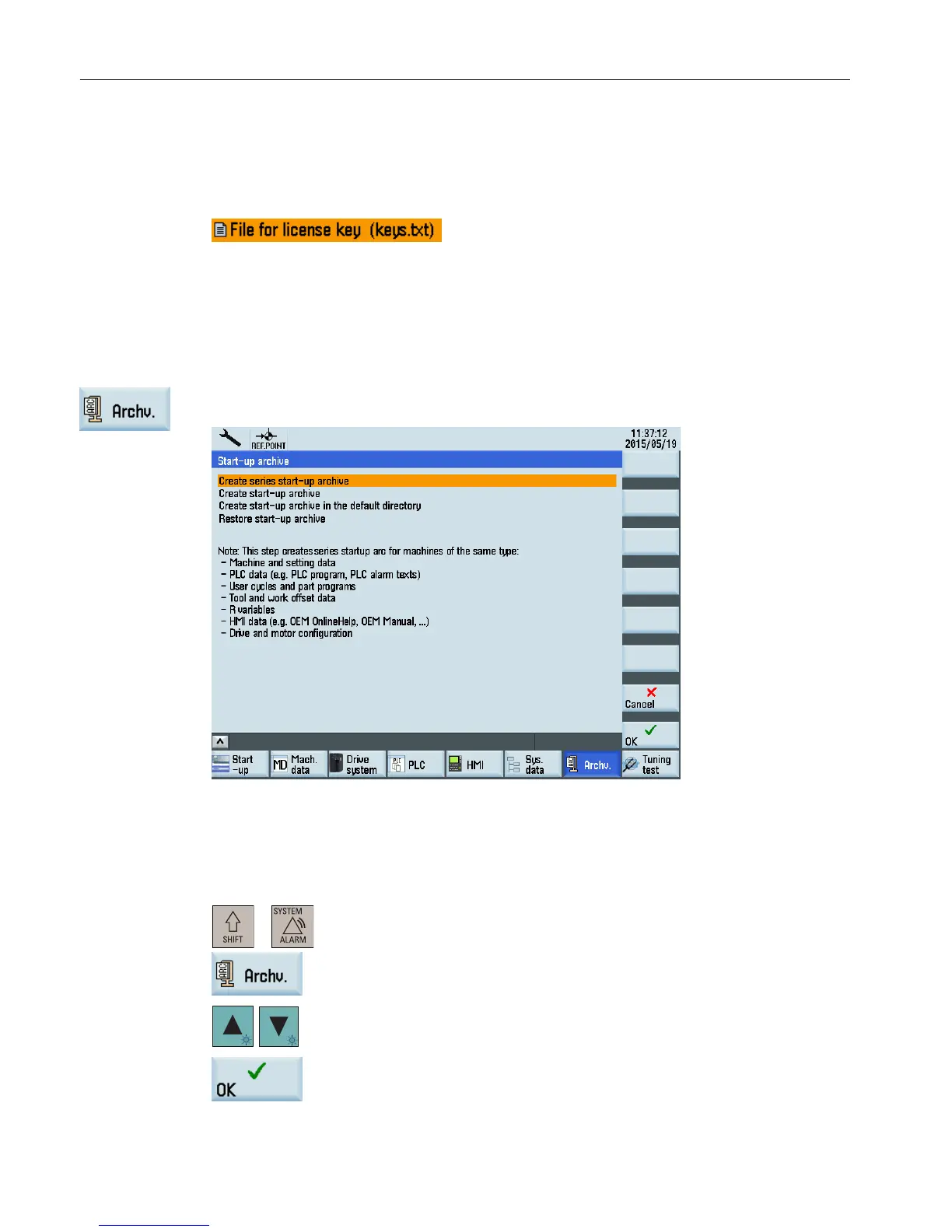

3.7 Creating commissioning archives
Functionality
Pressing this softkey allows you to create or restore a data archive in the following window.
Note that some entries in this window are visible with the manufacturer password only. For
more information, see section "
External data backup in a data archive
(Page 553)".
Operating sequence
+
1. Select the desired operating area on the PPU.
2. Press this horizontal softkey to open the start-up archive window.
3. Use the cursor keys to select an option to create a start-up archive.
4. Press this softkey to confirm, and the file saving dialog appears.
Operating in the system data management operating area
3.7 Creating commissioning archives
Diagnostics Manual
32 Diagnostics Manual, 06/2015, 6FC5398-6DP10-0BA2
