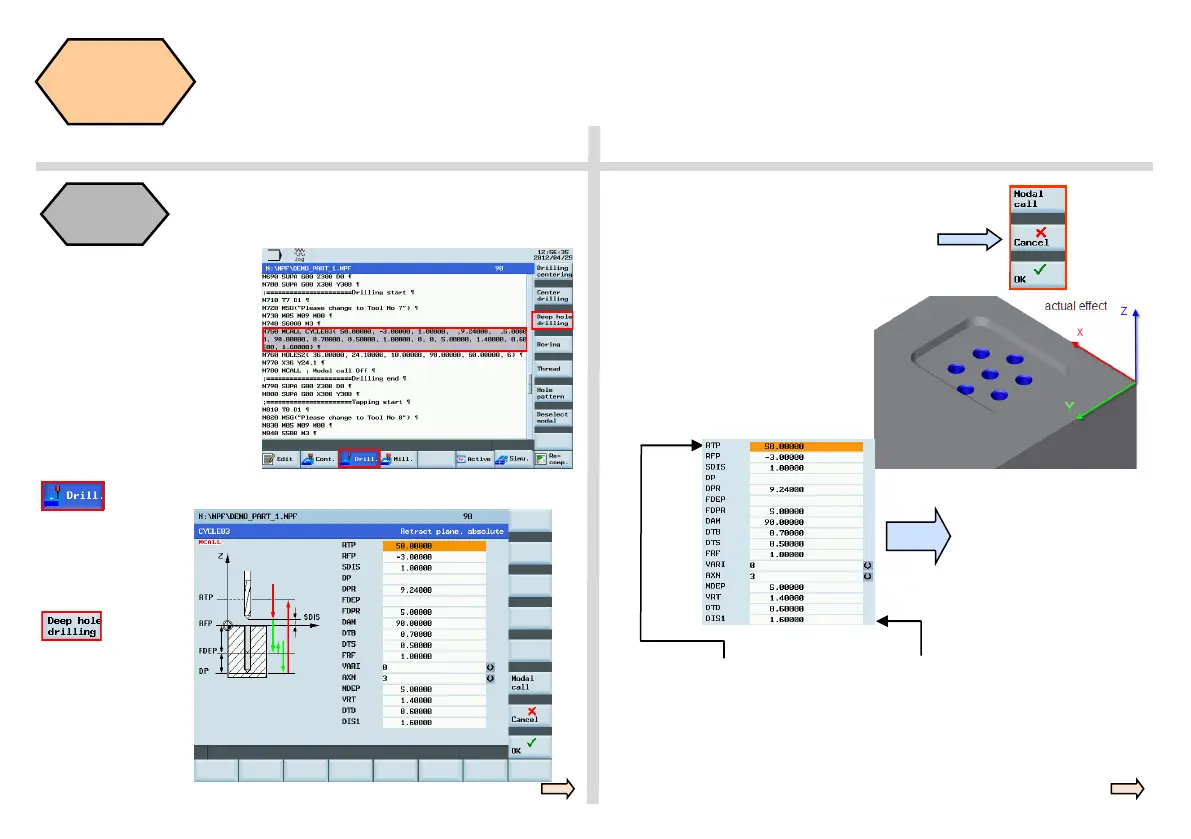

808D Page 41 Operating and Programming — Milling
Create Part
Program
Part 2
s
Basic Theory
The easiest method to drill
holes is with CYCLE81/82:
Without/with delay at current
hole depth
CYCLE83：Each drilling
operation needs a withdraw-
al distance during deep hole
drilling.
The cycle can be found and
parameterized with the
“Drill.” SK.
The relevant cycle
can now be found
using the vertical
SKs on the right.
Select
“Deep hole drilling”
using the vertical
SKs and parame-
terize the cycle
according to re-
quirements.
Drilling
holes
With the “OK” SK, the values and
cycle call will be transferred to the
part program as shown below.
This will drill a hole at the current
position.
With the “Modal call” SK, holes will
be drilled at subsequently pro-
grammed positions until cancelled
with the MCALL command in the
part program.
The information is transferred as
shown below.
For specific parameter
commands, see the
next page
N325 MCALL CYCLE83( 50.00000, -3.00000, 1.00000, ,9.24000, ,5.00000,
90.00000, 0.70000, 0.50000, 1.00000, 0, 0, 5.00000, 1.40000, 0.60000, 1.60000)
N330 X20 Y20 ; Hole will be drilled
N335 X40 Y40 ; Hole will be drilled
N340 MCALL
N345 X60 Y60 ; Hole will not be drilled
