B509 Page 12 840D/828D SINUMERIK Operate
Notes
Certain information that appears on the display while programs are being
executed could be of special interest to the operator of the machine.
With the code MSG(“character chain“) a message can be programmed
such that it will appear on the screen while the program progresses.
Example:

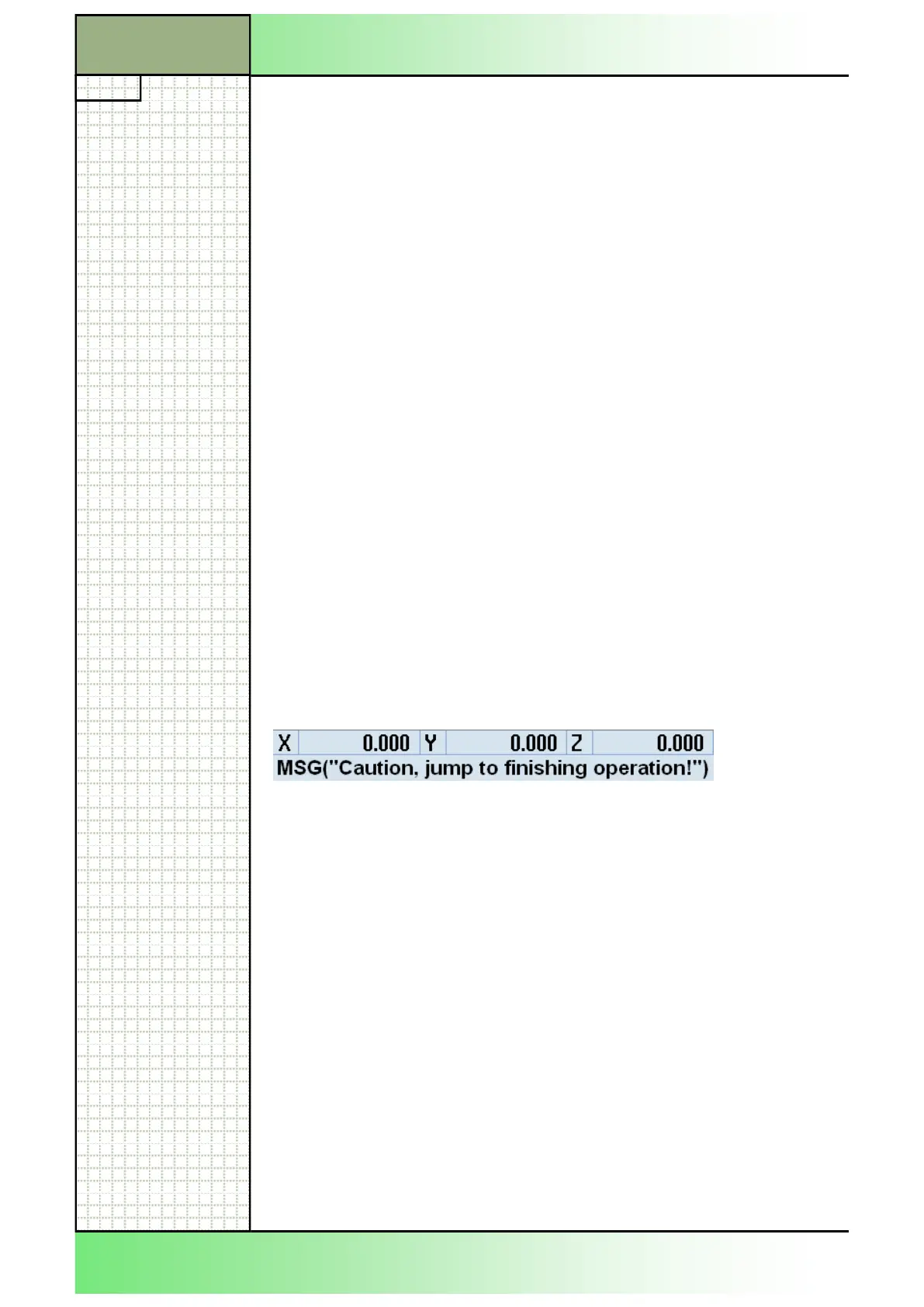

The message programmed in block N30 will be displayed as shown below
(Monitor extract).
The display will remain until a newly programmed message replaces it or
the existing one is cancelled.
The message can be cleared using the code “MSG(““)” or by means of the
end of program M30.
N10 G18 G54 G64 LIMS=3000
N20 G00 X200 Z300
N30 MSG("Caution, jump to finishing operation!")
N40 GOTOF LBL18
N50 T1 ; Roughing tool
N60 G96 S160 F0.2 M4 D1
N70 G00 X82 Z0.2 M8
N80 G01 X-1.6
N90 Z2
N100 G00 X200 Z300
N110 LBL18:
N120 T2 ; Finishing tool
N130 G96 S200 F0.15 M4 D1
N140 G00 G42 X0 Z2 M8
N150 G01 Z0
N160 X78 CHR=1
N170 Z-20
N180 X82
N190 G00 G40 X200 Z300
N200 M30
Section 6
Programmable messages
