Sample configurations of the SINUMERIK Operate

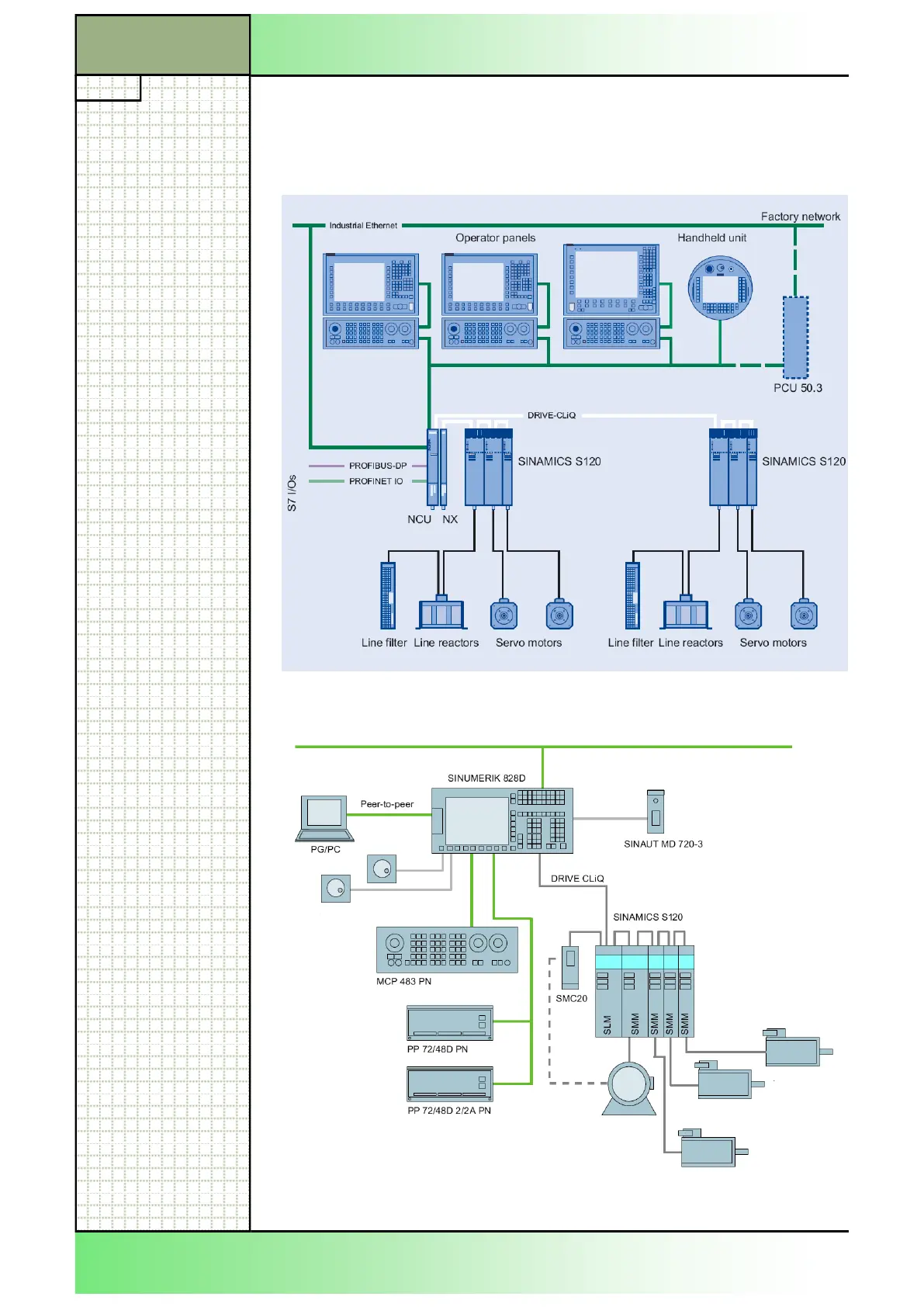

The following two graphics show sample configurations of the SINUMERIK
840D sl and the 828D controls, their optional components an their commu-
nication paths.
Sample configuration of the SINUMERIK 840D sl:
Sample configuration of the SINUMERIK 828D:
Factory network (Industrial Ethernet)
2 x Handwheels
PLC E/A-Interface
based upon PROFINET
Asynchronos motor
Synchronos motor 1
Synchronos motor 2
Synchronos motor 3
