Section 2
Operator Panel layouts of the Sinumerik Operate
The operator panels (OPs) consists of the following operating elements:
Membrane keyboard with 8 + 4 horizontal and 8 vertical softkeys
Colour display (10.4” Display on 828D, 15” Display on 840D sl)
Front-USB-plug (840D sl),
USB, CF-card, Ethernet on panel front (828D)
Fully integrated QWERTY CNC-keyboard (828D)

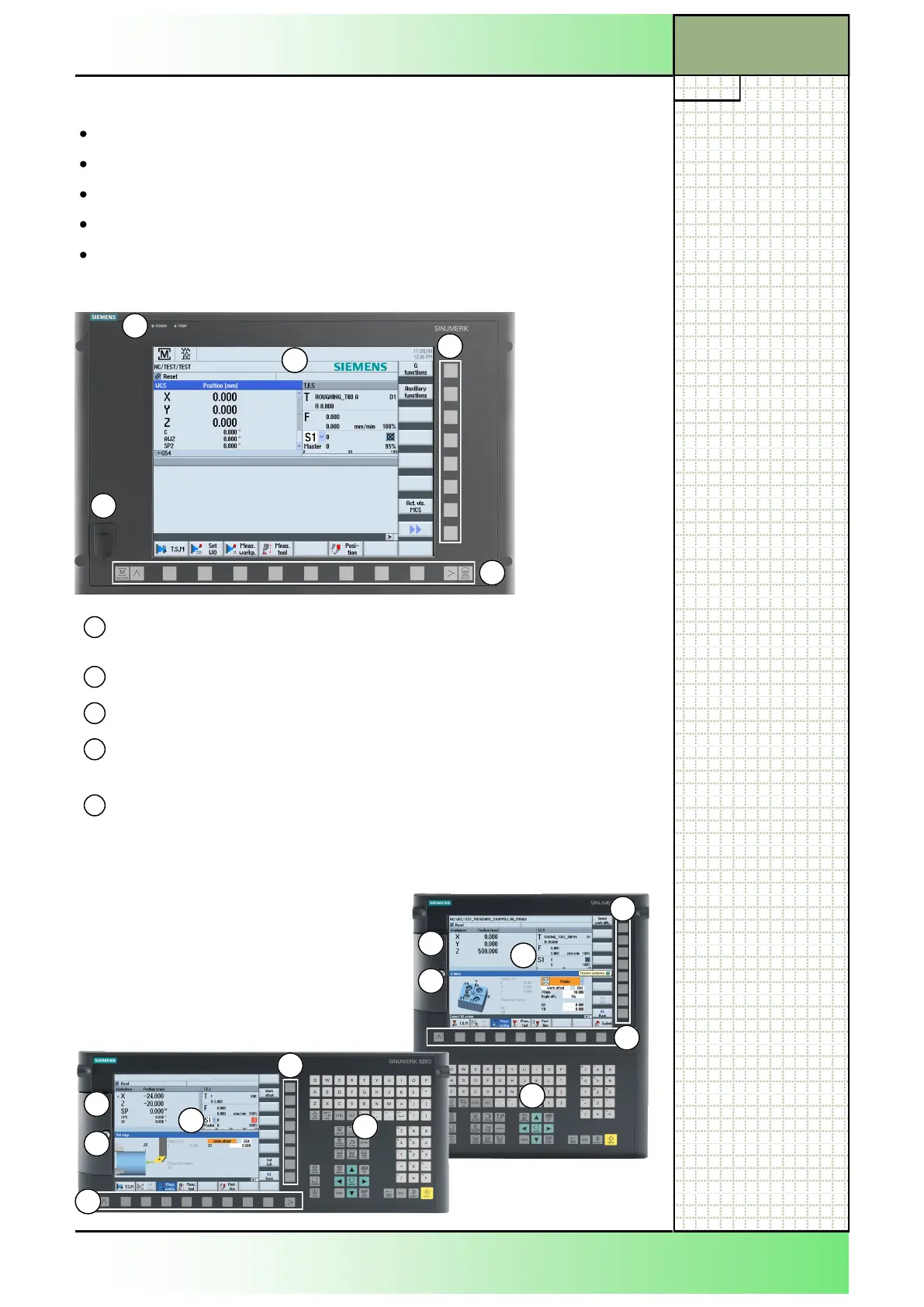

2.1 Operator panel layout of the Sinumerik 840D sl:
Horizontal softkey strip with 4 screen keys (2 each located on the
left and right side) (HSK)
Vertical softkey strip (VSK)
15“ TFT-colour display
Front-USB-plug (Sinumerik 840D sl) , e.g. for connection of exter-
nal memory media, mouse or keyboard
Status-LED: Power
Status-LED: Temp (if ON, increased wear must be expected)
1
2
3
4
5
4
2
1
5
3
1
1
2
2
3
3
6
6
2.2 Operator panel layout of the Sinumerik 828D
4
4
5
5
