840D/828D SINUMERIK Operate
Notes
Section 2
Basic operations

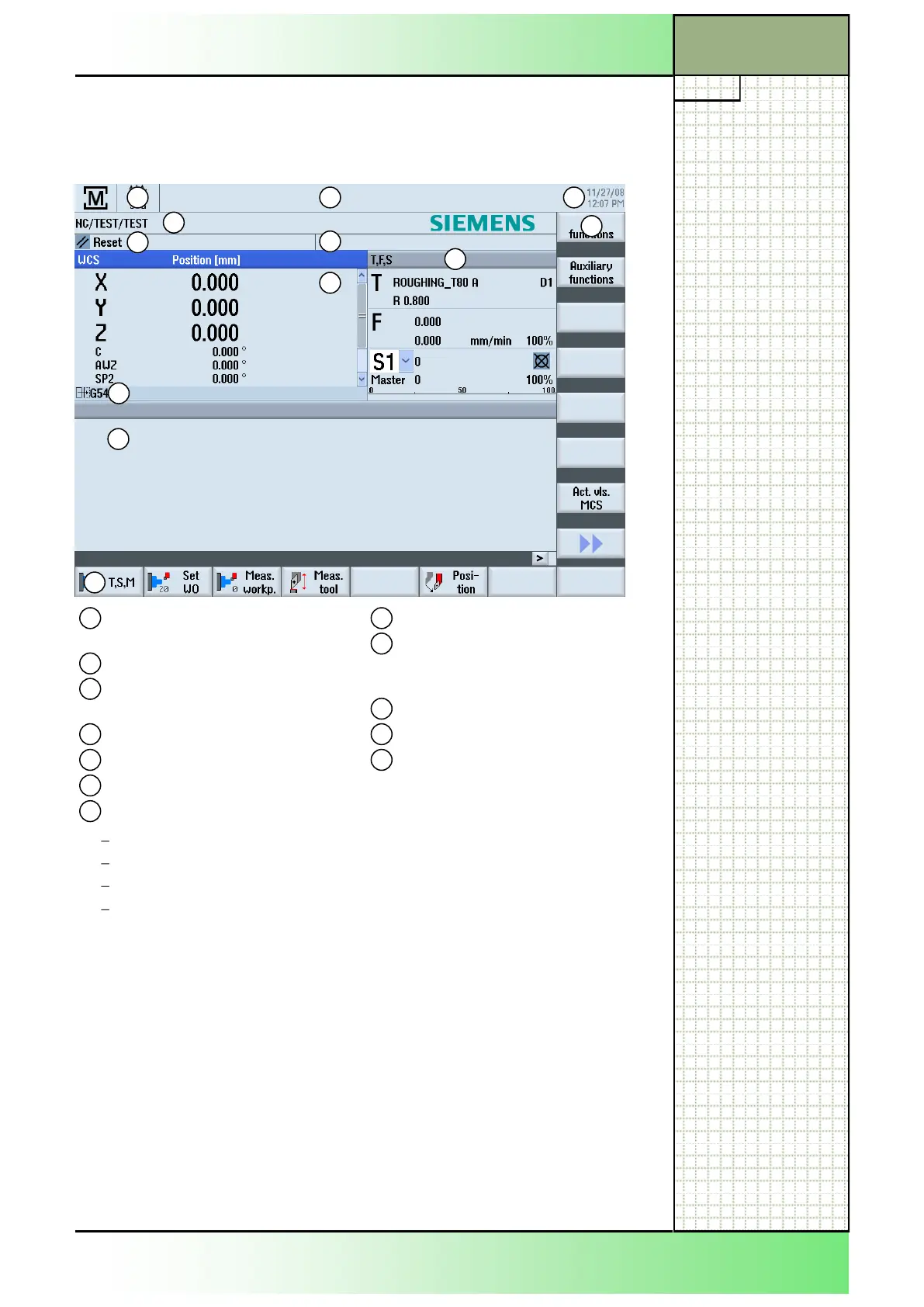

2.1 Main screen of the Sinumeric Operate in the operating mode
“JOG”
In this section the parts of the main screen will be declared.
1
5
7
10
12
11
6
9
2
8
4
3
Active operating area and
mode
Program path and name
Status, program influence and
chanel name
Alarm and message line
Chanel operation messages
Date and time
Display of:
T = Active tool
F = Present feedrate
S = Spindle
Spindle load factor in percent
1
2
3
4
5
6
7
Position readout for the axes
Display of the active zero
point, rotation, mirroring and
scaling
Working window
Horizontal softkey bar
Vertical softkey bar
8
9
10
11
12
