840D/828D SINUMERIK Operate
Notes
Section 2
Basics

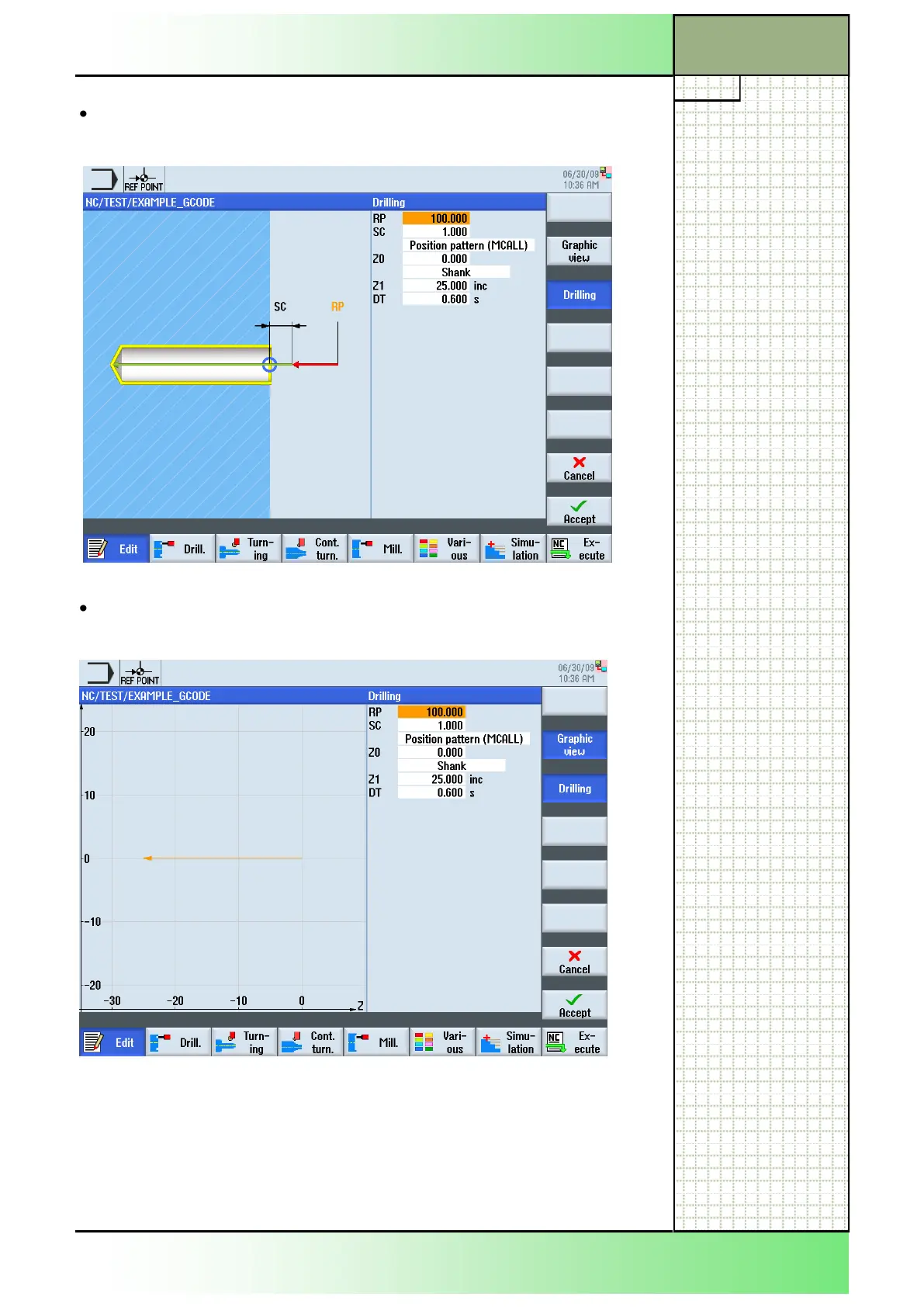

As a parameter mask, with helping pictures and animations during pa-
rameter input (the VSK 3 “Graphic view” must be deactivated).
As a parameter mask with an outline drawing during parameter input,
(the VSK 3 “Graphic view” must be active).
Note:
The animated helping pictures are displayed always in the correct position
to the adjusted coordinate system.
The parameters are dynamically overlayed into the graphic and are high-
lighted in a different colour.
To Next Page
