Panel cutout
The MCP 1900 is secured using 12 M5 nuts. The tightening torque is 1.5 Nm. Use spring
elements in addition to the M5 nuts.


Y









5]

*) In the sealing area

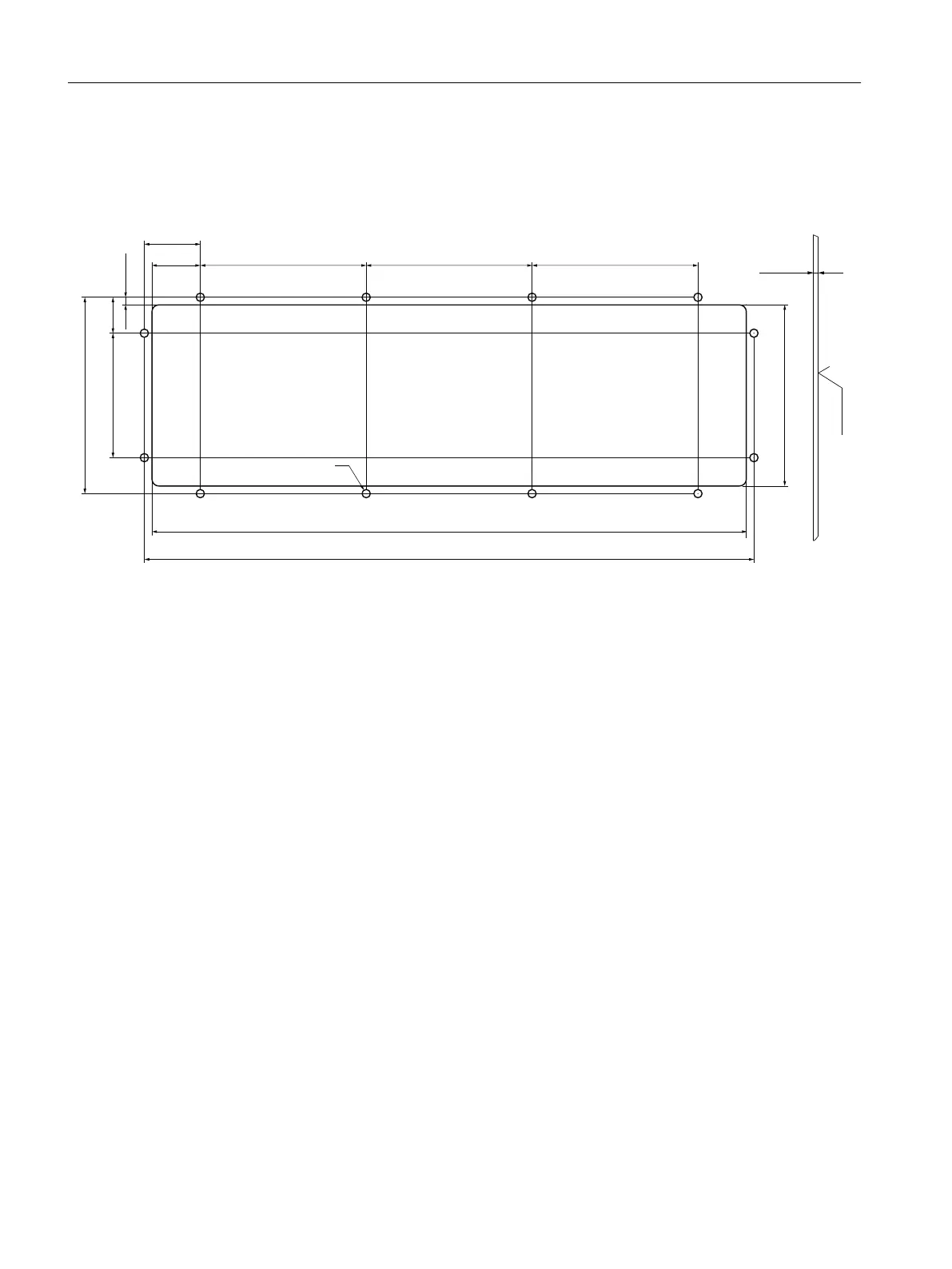

Figure 3-2 Panel cutout of MCP 1900 (all speci󹪝cations in mm)
Dimension drawings
ONE MCP Part 2: MCP 1900
