Design and Functional Principle
23
SIP ART PS2 Manual
A5E00074631-01
.
NOTE
The exhaust air valve is always open when there is no current.

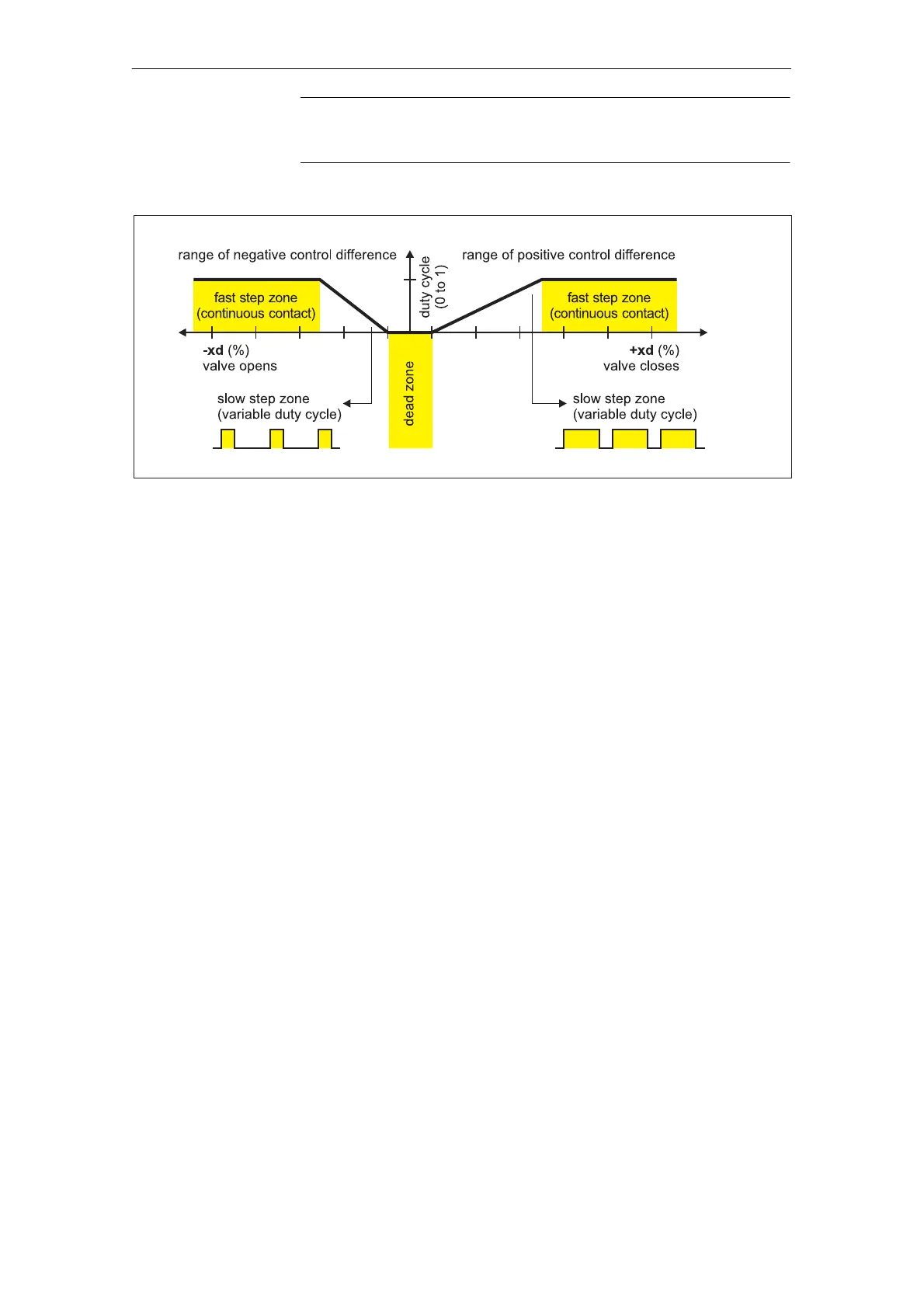

Figure 2-8 Method of operation five--point switch
