Preparing for Operation
47
SIP ART PS2 Manual
A5E00074631-01
M6
4
35
Schwenkantrieb
Befestigungsebene
Stellungsregler
F05-Lkr.- 50
+0,1
fastening level
positioner
rotary actuator

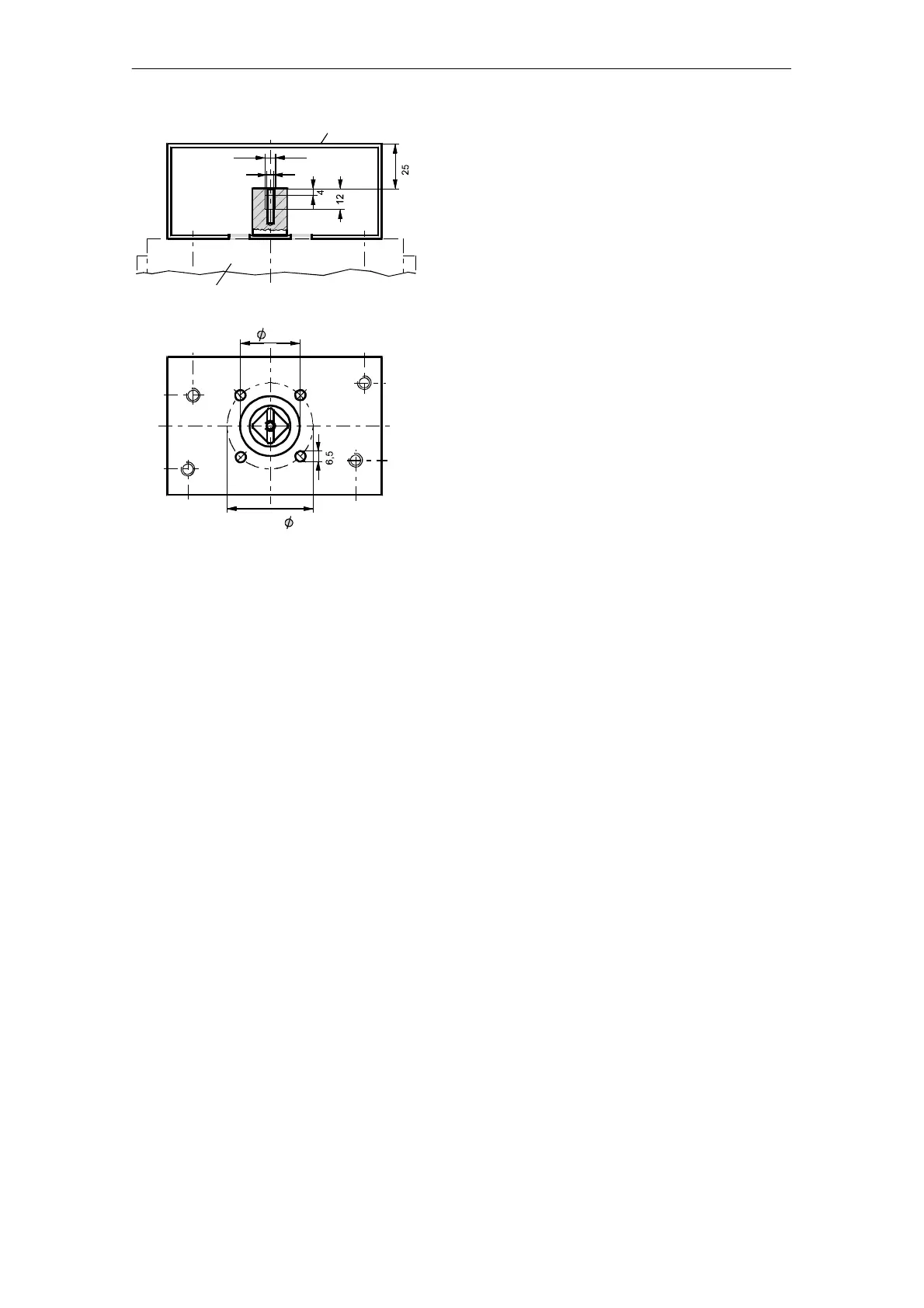

Figure 3-10 Attachment of rotary actuator, mounting console (scope of deliv ery actuator manufacturer),
dimensions
