Preparing for Operation
63
SIP ART PS2 Manual
A5E00074631-01

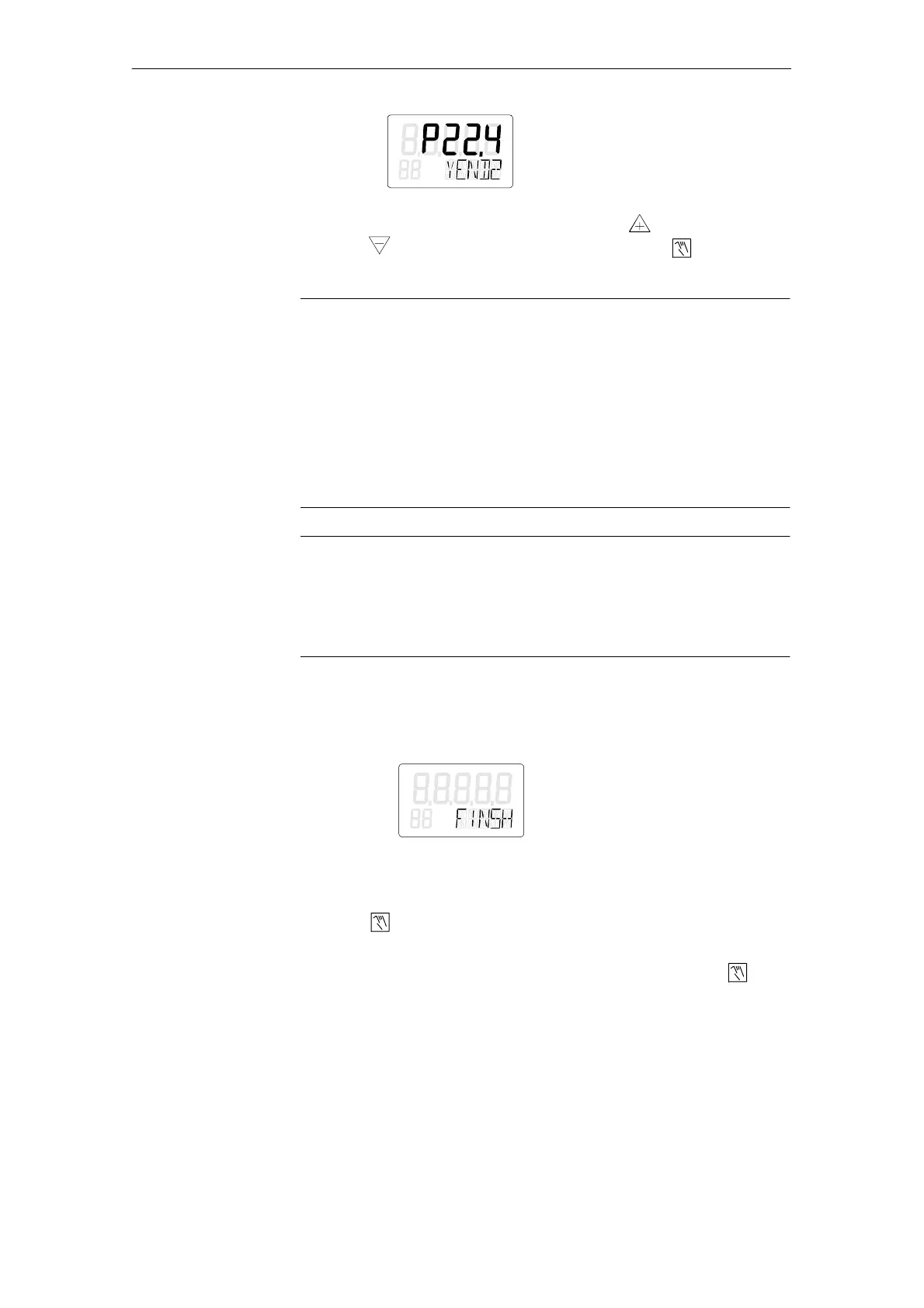

8. If step 7 was successful, the following display appears:
Now move the actuator to the position which you want to define as
the second end position with the increment
and decre-
ment key. Then press the operation mode key . This enters
the current position as end position 2.
.
NOTE
If the message “RANGE” appears in the bottom line, the selected end
position is outside the permissible measuring range. There are several
ways to correct the error:
S move to another end position with the increment and decrement key
or
S abort initialization by pressing the operation mode key. You then have
to change to P manual operation and correct the displacement path
and the displacement detection according to step 1.
.
NOTE
If the message “Set Middl” appears, the lever arm must be driven to
horizontal position using the increment and decrement key and then
the operation mode key pressed. This sets the reference point of the
sine correction in linear actuators.
9. The rest of the initialization now runs automatically. “RUN1” to
“RUN5” appear one after another in the bottom line of the display.
The following display appears on successful completion of initiali-
zation:
The first line additionally contains the determined stroke in millimeters if
the set lever length was specified with parameter 3 YWAY.
5 INITM appears in the bottom line again after pressing the operation
mode key
briefly. This brings you back to the Configuration
operating mode.
To exit the Configuration mode, press the operation mode key
for
longer than 5 seconds. The software version is displayed after about
5 seconds. The instrument is in manual operation after releasing the
operation mode key.
