Preparing for Operation
65
SIP ART PS2 Manual
A5E00074631-01

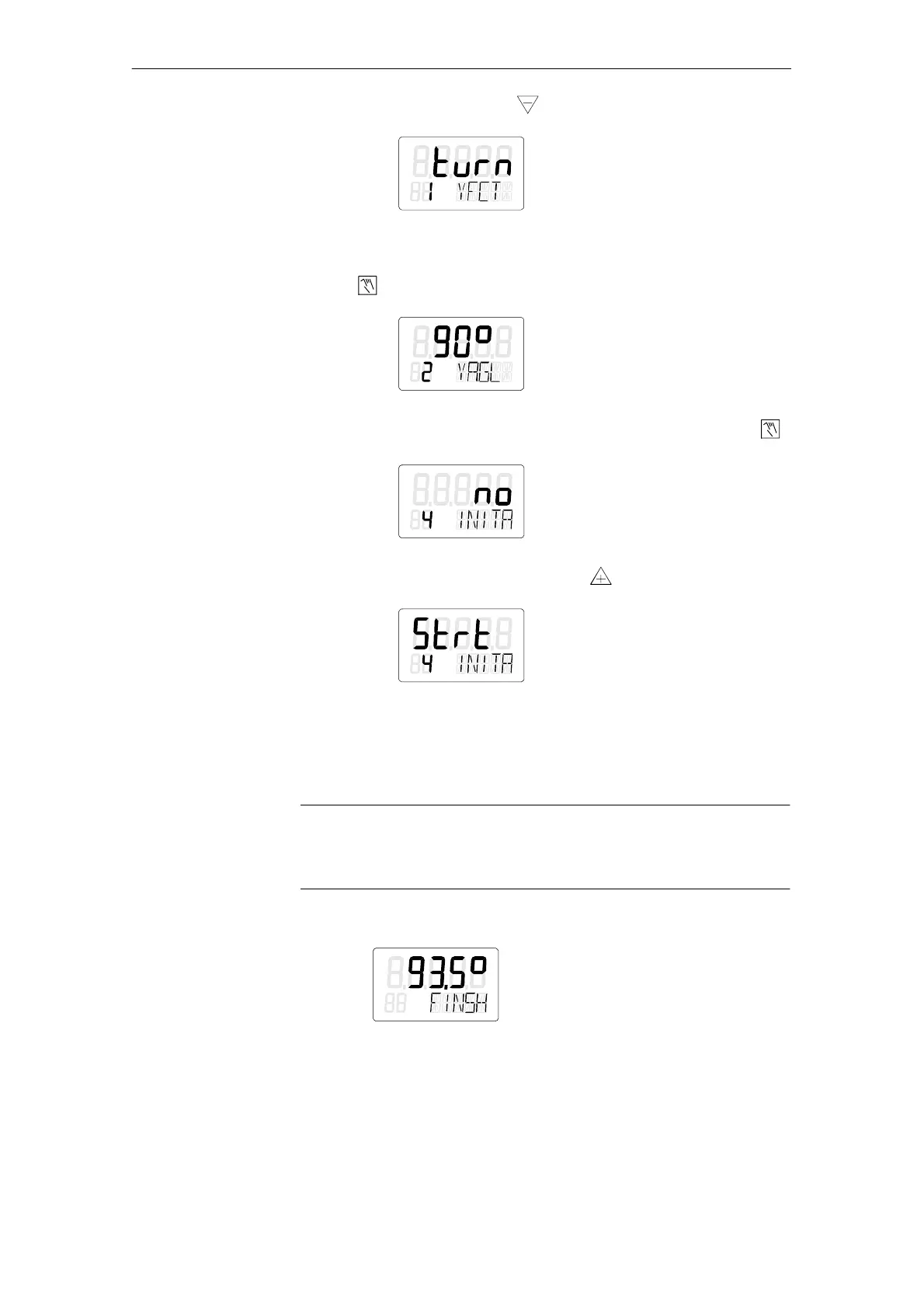

2. Set the parameter with the -key to ”turn”
Display:
3. Switch to the second parameter by pressing the operation mode
key
briefly. This has set automatically to 90°.
Display:
4. Switch on to the following display with the operation mode key :
5. Start initialization by pressing the key for longer than 5 s.
Display:
During the initialization phase ”RUN1”to”RUN5” appear one after
another in the bottom display (see also structograms in figure 3-24,
page 68 to figure 3-27, page 71).
.
NOTE
The initialization process may last up to 15 minutes depending on the
actuator .
The initialization is complete when the following display
appears:
The top value indicates the total angle of rotation of the actuator
(example 93.5°).
