Operation
83
SIP ART PS2 Manual
A5E00074631-01
- inverse equal percentage 1 : 33 (12.SFCT = n1 --33)
- inverse equal percentage 1 : 50 (12.SFCT = n1 --50)

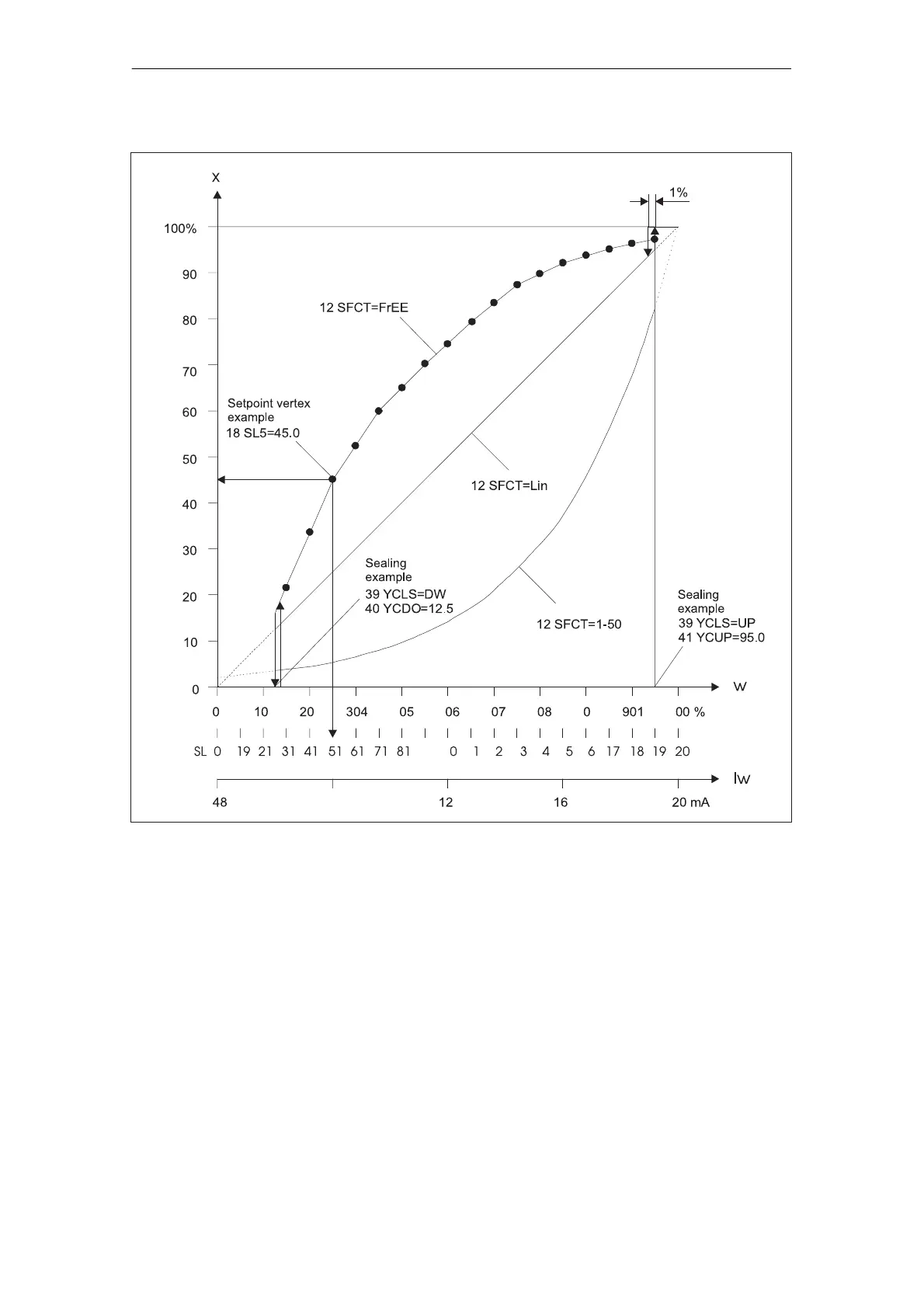

Figure 4-8 Setpoint characteristic, manipulated variable standardization and tight sealing function
