[dwocpka3-080213-01.tif, 2, en_US]

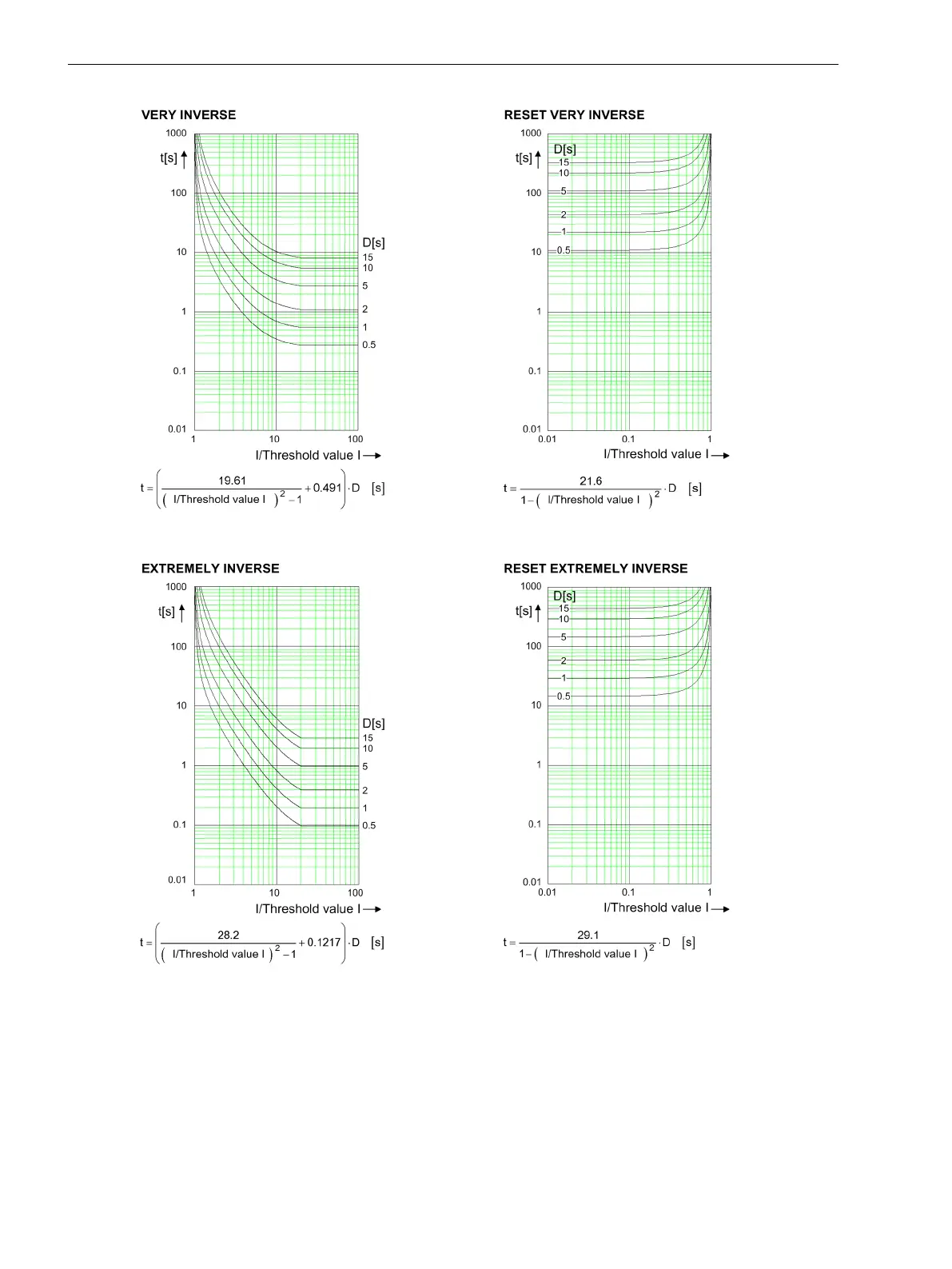

Figure 11-5
Tripping Characteristic Curves and Dropout Characteristic Curves According to ANSI/IEEE
Technical Data
11.8 Overcurrent Protection, Phases
1128 SIPROTEC 5, High-Voltage Bay Controller, Manual
C53000-G5040-C015-A, Edition 05.2018
