Technical data
6.2 Output
SITOP modular 1ph/2ph
Manual, 04.2018, C98130-A7548-A1-4-7629
41

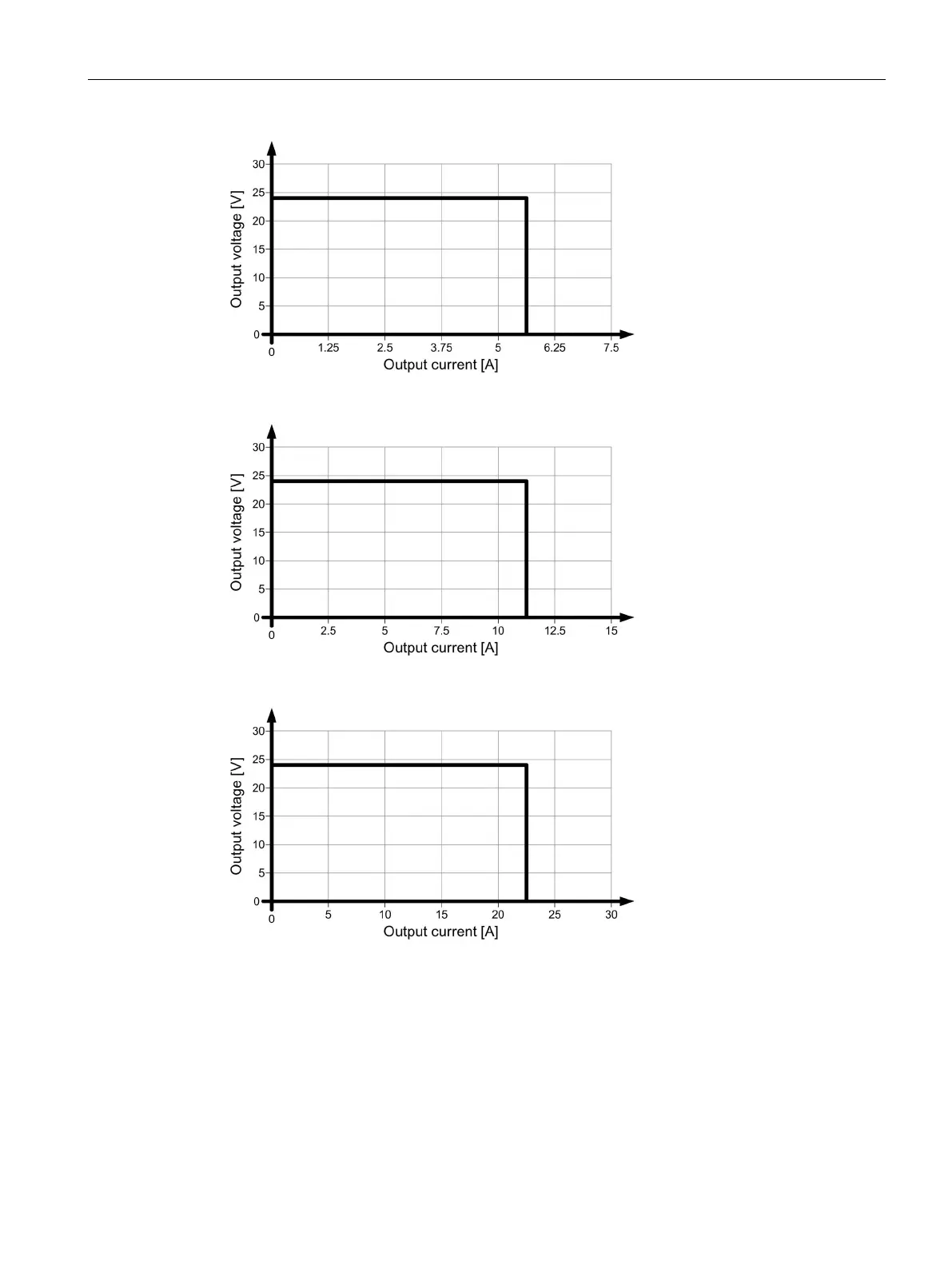

Figure 6-3 6EP1333-3BA10 single operation output characteristic
Figure 6-4 6EP1334-3BA10 single operation output characteristic
Figure 6-5 6EP1336-3BA00 single operation output characteristic
