Siemens SITOP 6EP1336-3BA00 User Manual

Technical data
6.2 Output
SITOP modular 1ph/2ph
Manual, 04.2018, C98130-A7548-A1-4-7629
43
Derating for U
out
> 24 V depending on the input voltage (only valid for 6EP1337-3BA00):

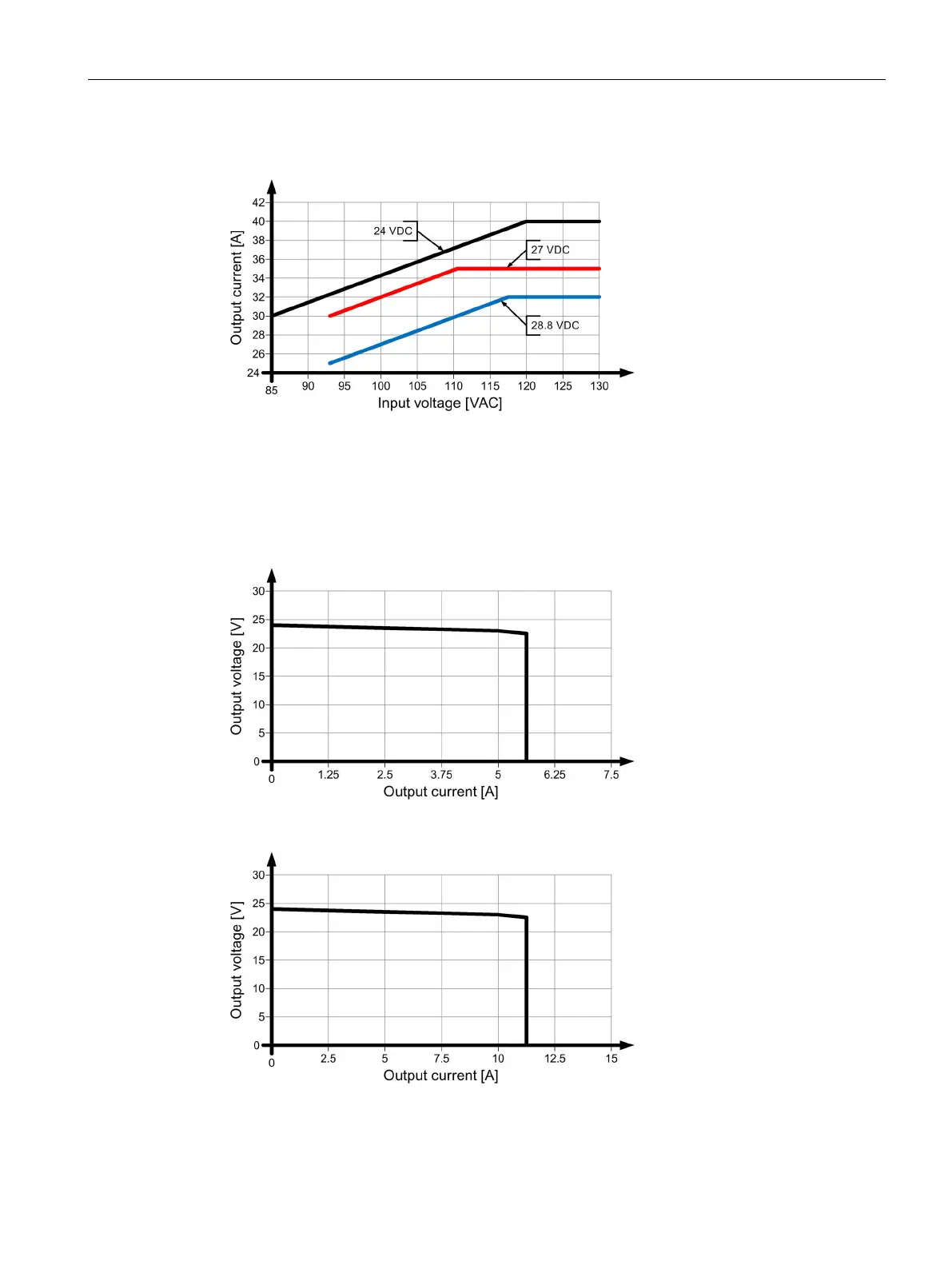

Figure 6-9 Output derating depending on the input voltage
For 85 to 93 V AC, it is not permissible that the output voltage is set higher than 24 V.
Selector switch A closed:
Parallel operation The output voltage falls with increasing output current.
Figure 6-10 6EP1333-3BA10 parallel operation output characteristic
Figure 6-11 6EP1334-3BA10 parallel operation output characteristic

Siemens SITOP 6EP1336-3BA00 Specifications

General

Output Voltage	24 V DC
Output Current	10 A
Power Rating	240 W
Operating Temperature	-25 to +70 °C
Protection Class	IP20
