SITOP UPS1600 / BAT1600 / UPS1100
Equipment Manual, 07.2021, A5E37775406-11-76
197
Mounting position, mounting clearances
6
6.1 SITOP UPS1600
6.1.1 Standard mounting position
The device is mounted on DIN rails. The device must be mounted vertically in such a way that
the input terminals and the output terminals are at the bottom to ensure correct cooling.
A clearance of at least 50 mm should be maintained above and below the device.
No clearance is required at the side.

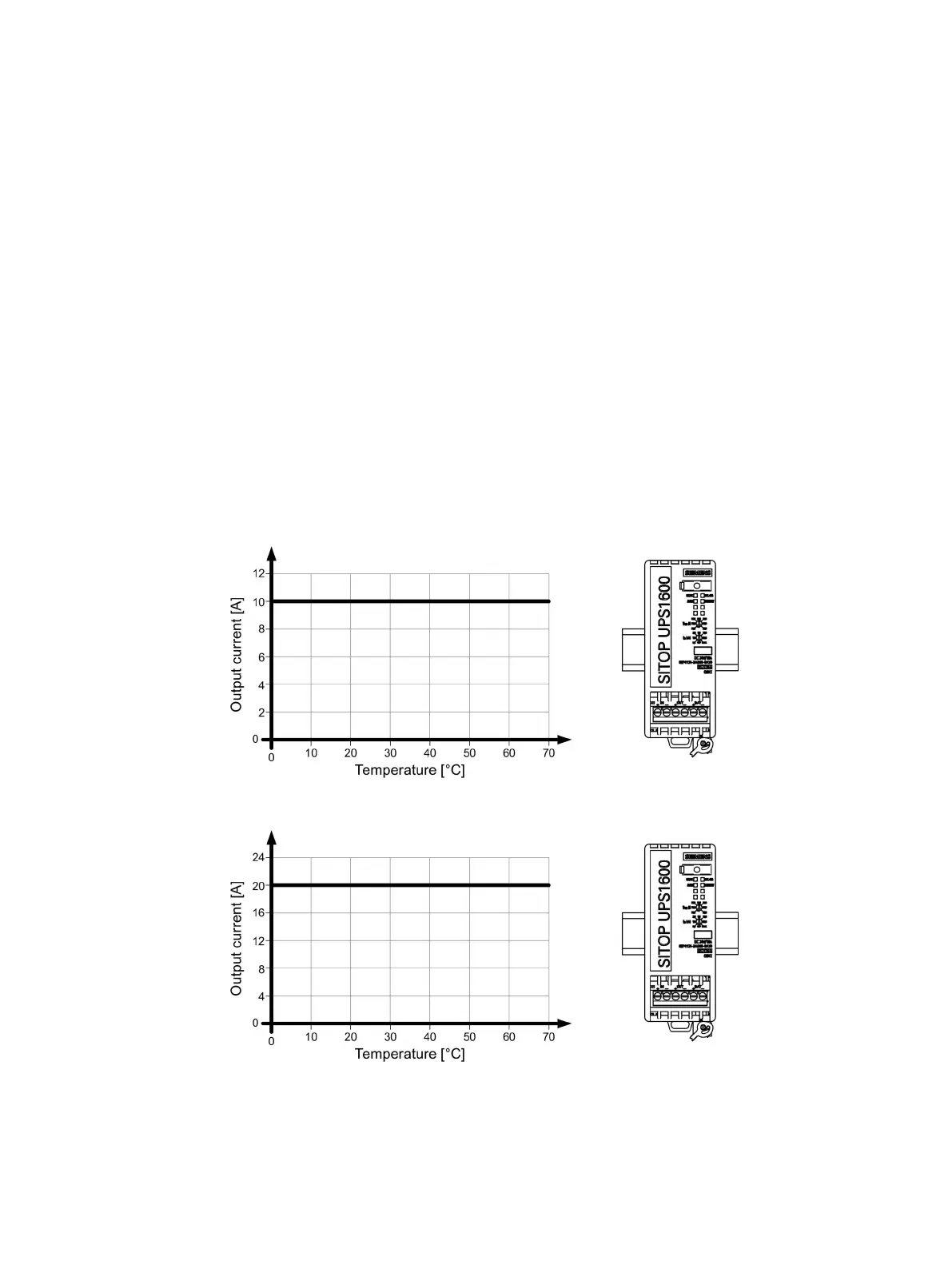

Output current as a function of the ambient temperature
Figure 6-1 6EP4134-3AB00-... Output current in the standard mounting position
Figure 6-2 6EP4136-3AB00-... Output current in the standard mounting position
