Calibration Actuator / 执行器校准
SQL351B25..50
SQL361B25..50

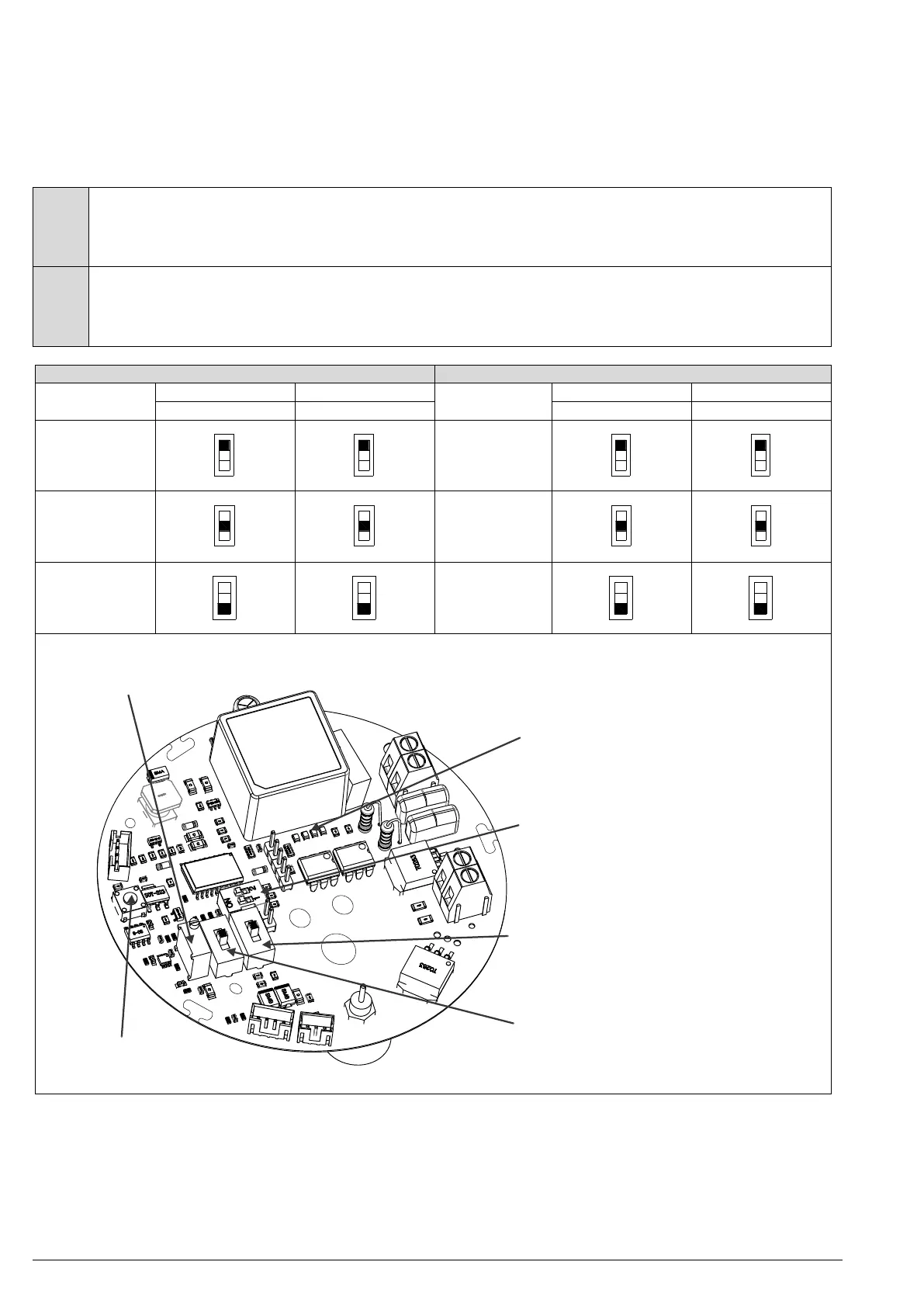

Signal type Selection 0..10V and 4..20 mA signal / 信号类型选择 0..10V 和 4..20 mA
• Factory setting for input and output signal in SQL361B.. is 0..10 V.
• Factory setting for input and output signal in SQL351B.. is 4..20 mA.
*Fail-in position not available at input signal 0..10 V.
• Select switch as below description.
• SQL361B..输入和输出信号的出厂设置..是 0..10 V
• SQL351B..输入和输出信号的出厂设置..是 4..20 mA
*在输入信号为 0..10 V 时，无断信号保位功能
• 请按照以下说明选择拨码开关位置。
S1 One-key calibration,
/一键校准
S Selection of Feedback Signal Types.3,
/ 选择反馈 信号 类型
S Selection of Input Signal Types.2,
/ 选择 输入 信号类型
S Signal loss mode settings.4,
/ 信号 丢失 模式 设置
From left to right are D4/D10/D7/D6
/ 从左到右 为 D4/D10/D7/D6
W1, 20 mA calibration potentiometer
/ 20 mA 校准电位计
