Siemens SQL36E series User Manual

8/12
Building Technologies Electromotoric Actuators CA1N4505en
HVAC Products 26.10.2006
Operation Transport Storage
EN 60721-3-3 EN 60721-3-4 EN 60721-3-2 EN 60721-3-1
General
ambient conditions
SQL35.00 / SQL85.00 SQL36E… SQL35.00 / SQL85.00 / SQL36E…
Environmental conditions Class 3K5 Class 4K2 Class 2K3 Class 1K3
Temperature –15...+55 °C –20...+70 °C –30...+65 °C –15...+55 °C
Humidity
5...95 % r. h. 15...100 % r. h. < 95 % r. h. 0...95 % r. h.

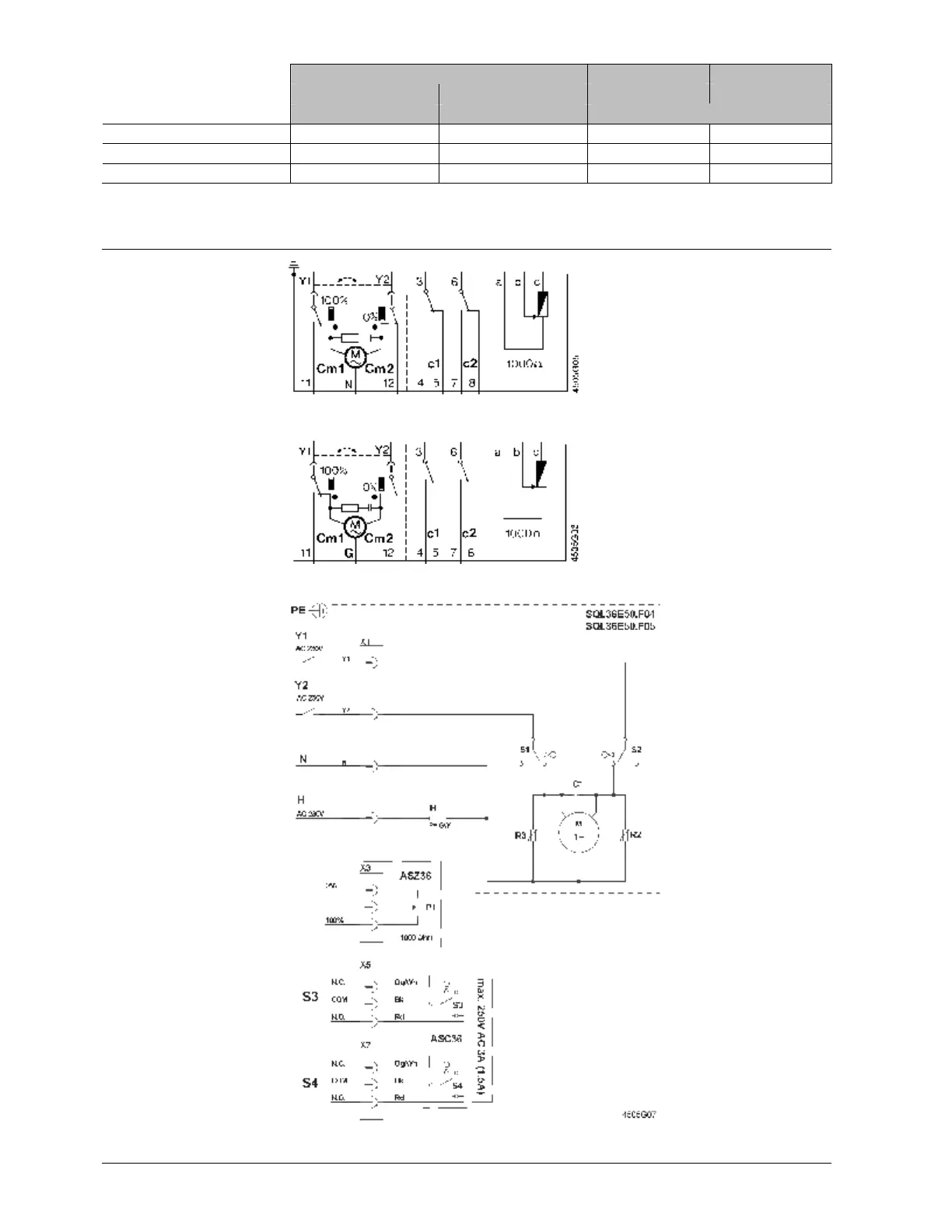

Internal diagrams
Cm1 End switch
Cm2 End switch
c1 1 auxiliary switch ASC9.5
or
c1, c2 1 double auxiliary switch
ASC9.4
or
c1, 1000 Ω 1 built-in unit ASZ7.4
(1 auxiliary switch and
1 potentiometer)
N Neutral conductor
G System potential
Y1 Control phase OPEN
Y2 Control phase CLOSED
11 Sequence Y1 at 90°
12 Sequence Y2 at 0°
S1 End switch CLOSED
S2 End switch OPEN
S3 Auxiliary switch
CLOSED (ASC36)
S4 Auxiliary switch
OPEN (ASC36)
H Heating element
P1 Potentiometer
(ASZ36)
Y1 Control phase OPEN
Y2 Control phase
CLOSED
N Neutral conductor
N.C. Normally Closed
N.O. Normally Open
COM Common conductor
.
.
.
.
.
.
.
SQL35.00
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
SQL36E50F04
SQL36E50F05
SQL85.00
