Siemens SQL36E series User Manual

9/12
Building Technologies Electromotoric Actuators CA1N4505en
HVAC Products 26.10.2006
4505G01
SQL36E65
SQL36E110
SQL36E160
ASC36
SEZ31.1
ASZ36
max. AC 250V 3A (1,5A)
1000
AC 230 V
AC 230 V
H
P = 5 W
AC 230 V
Ω
T1
S1 End switch CLOSED
S2 End switch OPEN
S3 Auxiliary switch CLOSED
(ASC36)
S4 Auxiliary switch OPEN
(ASC36)
S7 Thermal switch
(integrated)
H Heating element
P1 Potentiometer (ASZ36)
T1 Auxiliary module
(SEZ31.1)
Y1 Control phase OPEN
Y2 Control phase CLOSED
N Neutral conductor

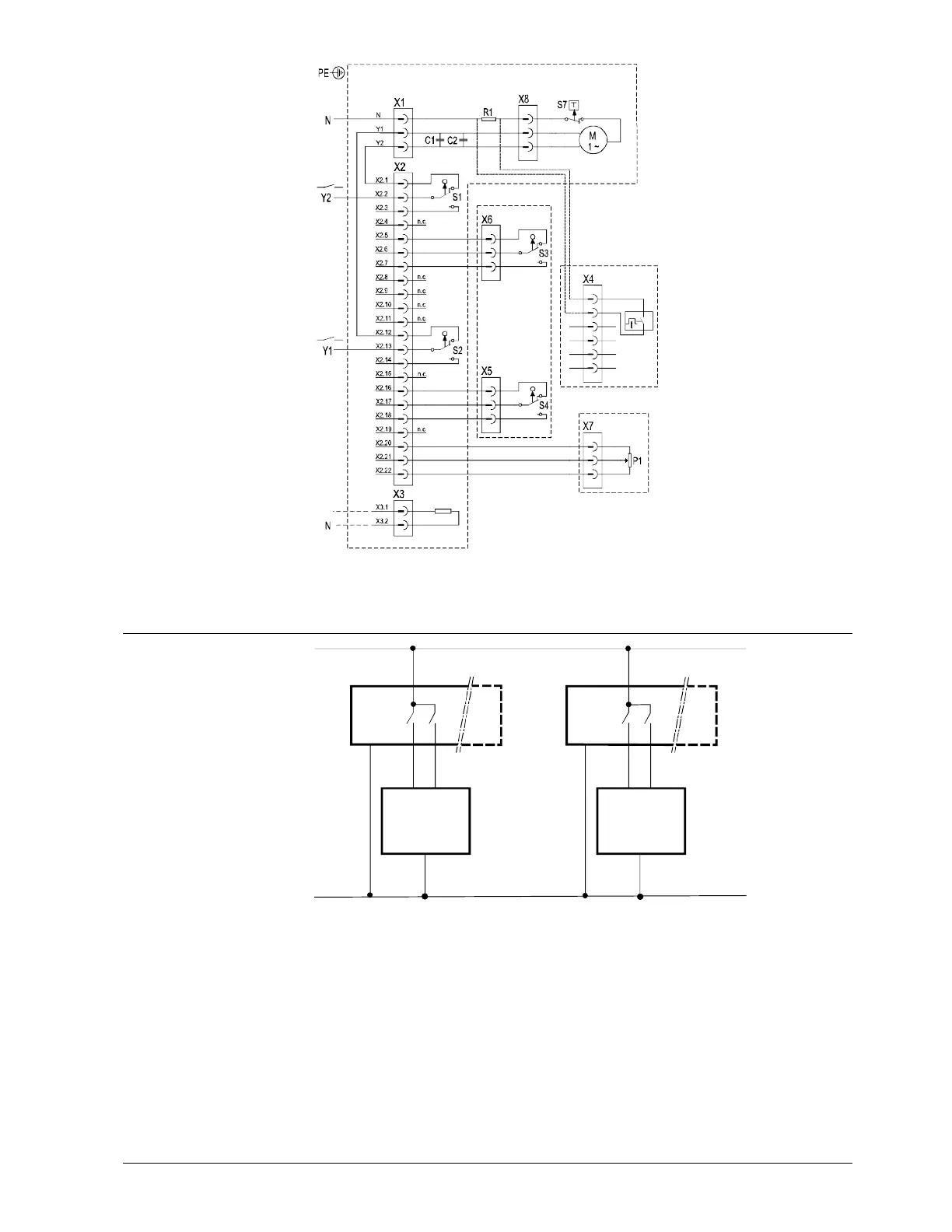

Connection diagrams
4505A01
(L)
(N)
N
Y2Y1
N2
(Y1) (Y2)
Q1
Q2
Y2
(L)
(N)
L
N
AC 230 V
N
Y2Y1
N1
(Y1) (Y2)
Q1
Q2
Y1
N1, N2 Controller
Y1, Y2 Actuator
L System potential AC 230 V
N System neutral
Q1, Q2 Controller contacts
SQL36E65
SQL36E110
SQL36E160
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
SQL35.00
SQL36E…
