-12-

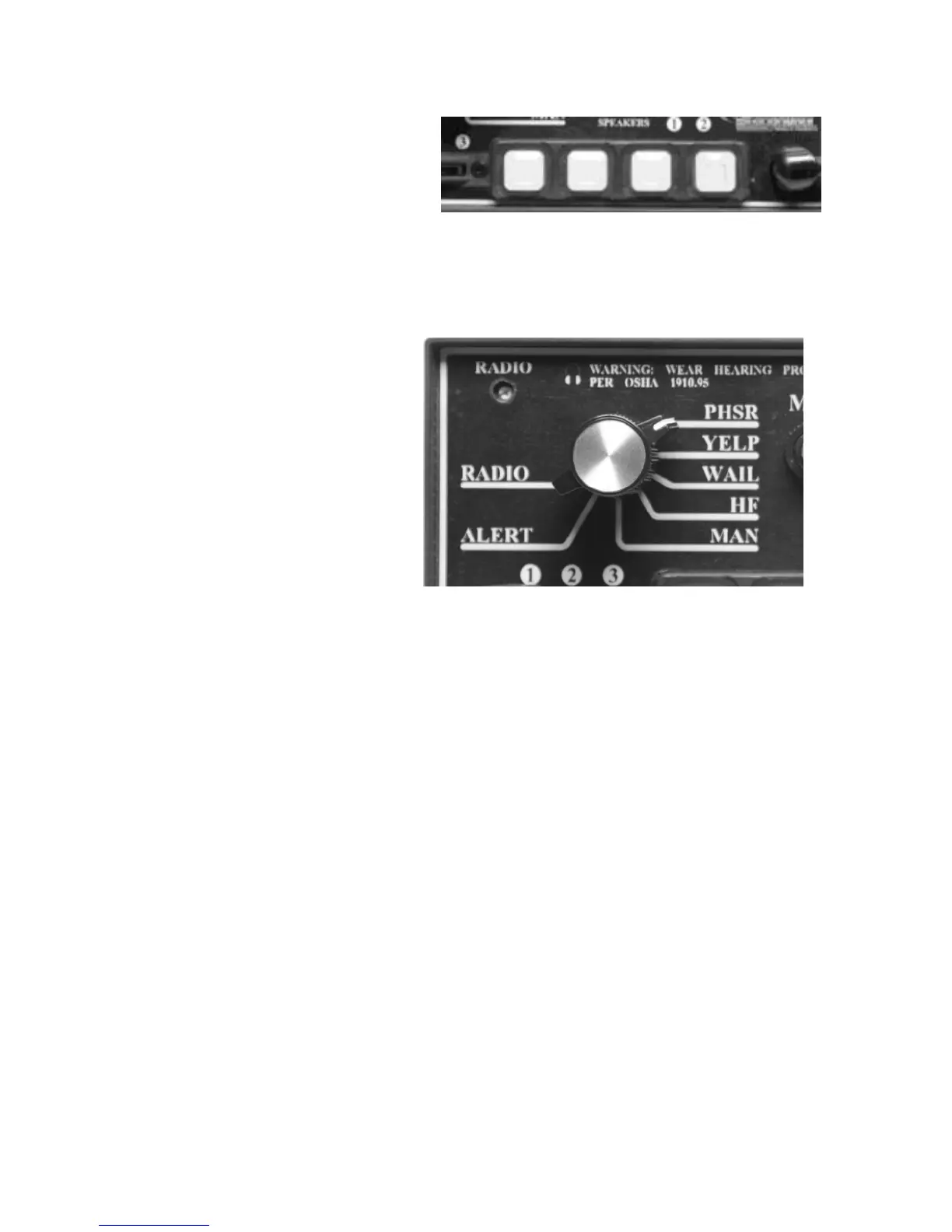

LIGHT PUSH BUTTON SWITCHES
Four push button switches are
provided to enable four separate
functions. The far left push button
(possibly L. Alley) will control the
item(s) connected to S1. The
second push button (possibly
R. Alley) will control the item(s) connected to S2. The third push button (possibly
Takedown) will control the item(s) connected to S3. The fourth push button will
control the item(s) connected to S4 (possibly gun lock). Each of these four outputs is
protected with a 20A fuse.
SELECTOR SWITCH
Whenever +12VDC is applied to
the yellow wire, the siren will be
"on" in the mode selected on this
dial. The rotary selector switch
controls the primary operating
function of the siren.
PHSR (Phaser) - Ultra-fast changing tone used for maximum attention.
YELP - A rapidly changing tone used in congested areas.
WAIL - A slower changing tone used on highways.
HF (Hands Free) - Also known as Horn Ring Cycler, allows the user to cycle
through Wail, Yelp, Phaser and Manual by repeatedly pressing the
horn or other switch connected to the AUX input. Operating any
other switch resumes normal operation. Please note that this mode
disables the Manual push-button selection when a Wail, Yelp, or
Phaser tone is cycled to.
MAN (Manual) - A silent mode that allows push-button Manual, push-button
Horn, and Public Address operation. The siren output winds down
when the Manual button is released.
ALERT - A silent mode that allows push-button Manual, push-button Horn
and Public Address operation. The siren output terminates
immediately when the Manual button is released.
RADIO - Also known as Radio Repeat, this function amplifies a radio speaker
input for re-broadcast outside the vehicle. The PA remains
functional, but no siren tones are available in this position.
