1. Max. 2000 W zone
2. Max. 1500 W zone
3. 3000 W max Boost 3600 W max zone
4. Glass plate
5. Control panel
Figure (1)

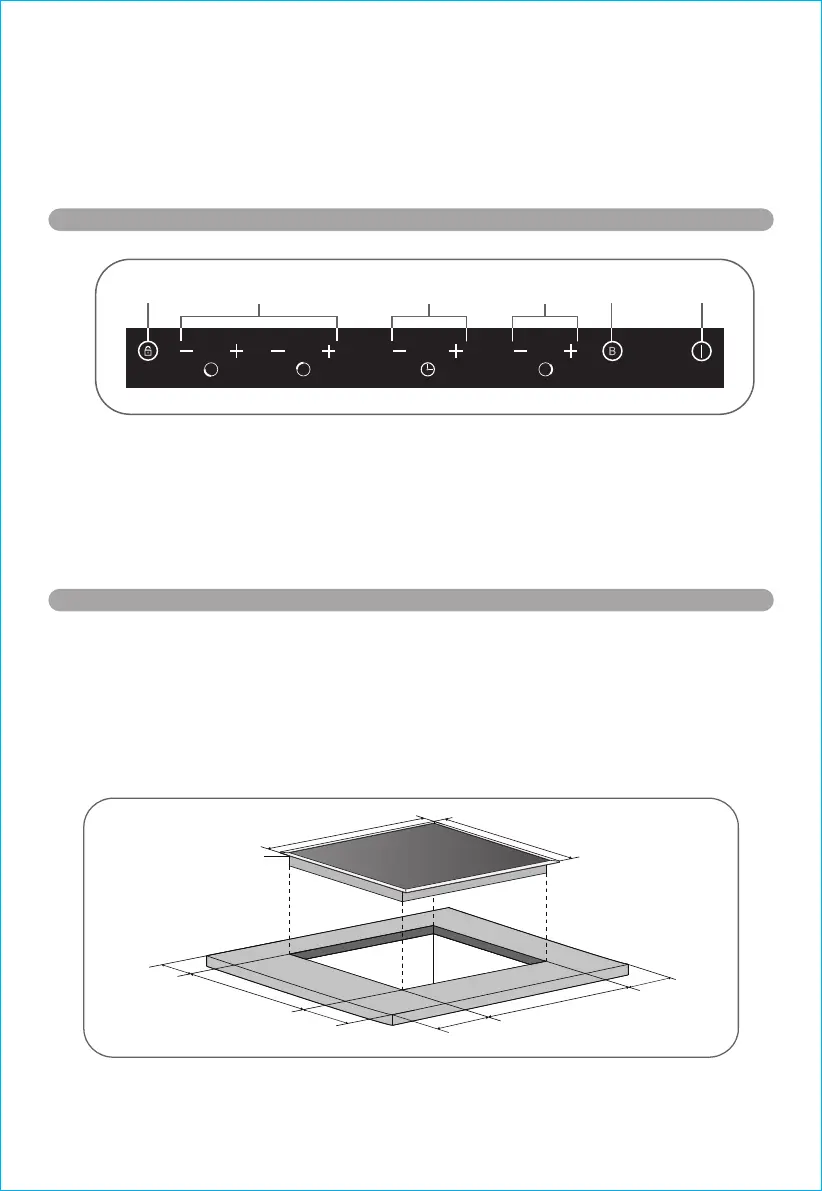

Control Panel
1. keylock control
2. Power regulating key
3. Timer regulating key
4. Boost control
5. ON/OFF control
Installation
Cut out the work surface according to the sizes shown in the drawing.
For the purpose of installation and use, a minimum of 5 cm space shall be
preserved around the hole.
Be sure the thickness of the work surface is at least 30 mm. Please select
heat-resistant work surface material to avoid larger deformation caused
by the heat radiation from the hotplate. As shown below:
59cm
49cm
56cm
5cm mini
5cm mini
5cm mini
5cm mini
52cm
To Next Page
