Signode GRIPPACK - PARTS LIST - MAIN ASSEMBLIES

Notes:
1. Torque: 22 in-lbs (2.5 Nm)
2. Loctite 401 or equivalent.
3. Torque: 6 in-lbs (.68 Nm)
4. When replacing always use
new components.
! Recommend spare parts items:
3, 4, 5, 19, 29
* Wave washer is not used on every assy.

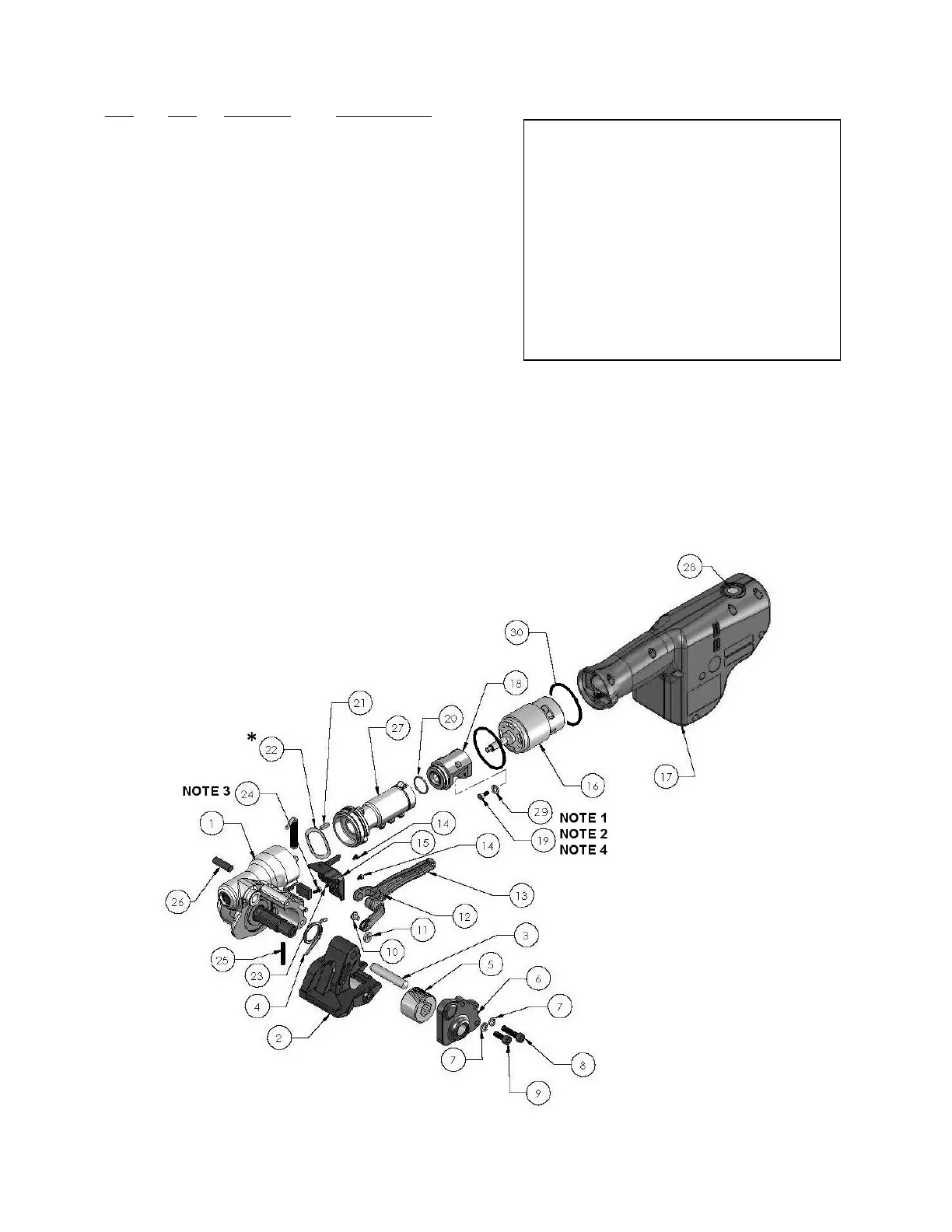

PARTS LIST - MAIN ASSEMBLIES
KEY QTY PART NO. DESCRIPTION
1 1 800442 GEAR HOUSING ASSY
2 1 800445 BREAKER FOOT ASSY
3 1 800119 PIVOT PIN Ø10 x 55
4 1 800415 FOOT SPRING
5 1 423398 FEEDWHEEL
6 1 423521 SIDEPLATE ASSY
7 1 005464 WASHER
8 1 423790 SHCS M6 x 25
9 1 423549 SHCS M6 x 18
10 1 400418 ROLLER SHAFT
11 1 800417 ROLLER
12 1 800416 SPRING
13 1 800412 RELEASE LEVER
14 2 800435 SHCS M3 x 5
15 1 800435 FRONT COVER
16 1 800447 MOTOR ASSEMBLY
17 1 800444 PLASTIC HOUSING ASSY
18 1 800396 MOTOR ADAPTER
19 2 800432 SHCS M4 x 12
20 1 800434 O-RING
21 1 800413 KEY
22 * 1 800455 WAVE WASHER
23 1 800431 KCPSS M3 x 3
24 1 800430 SHCS M3 x 8
25 1 800433 SHSS M5 x 30
26 1 800419 PIVOT SHAFT
27 1 800443 GEAR BODY ASSY
28 1 800395 ELECTRICAL ASSY
29 2 800460 MOTOR WASHER
30 2 427103 SAE 130 O-RING
