Notes:
1. Torque: 10 in-lbs (1.13 Nm)
2. Torque: 6 in-lbs (.68 Nm)

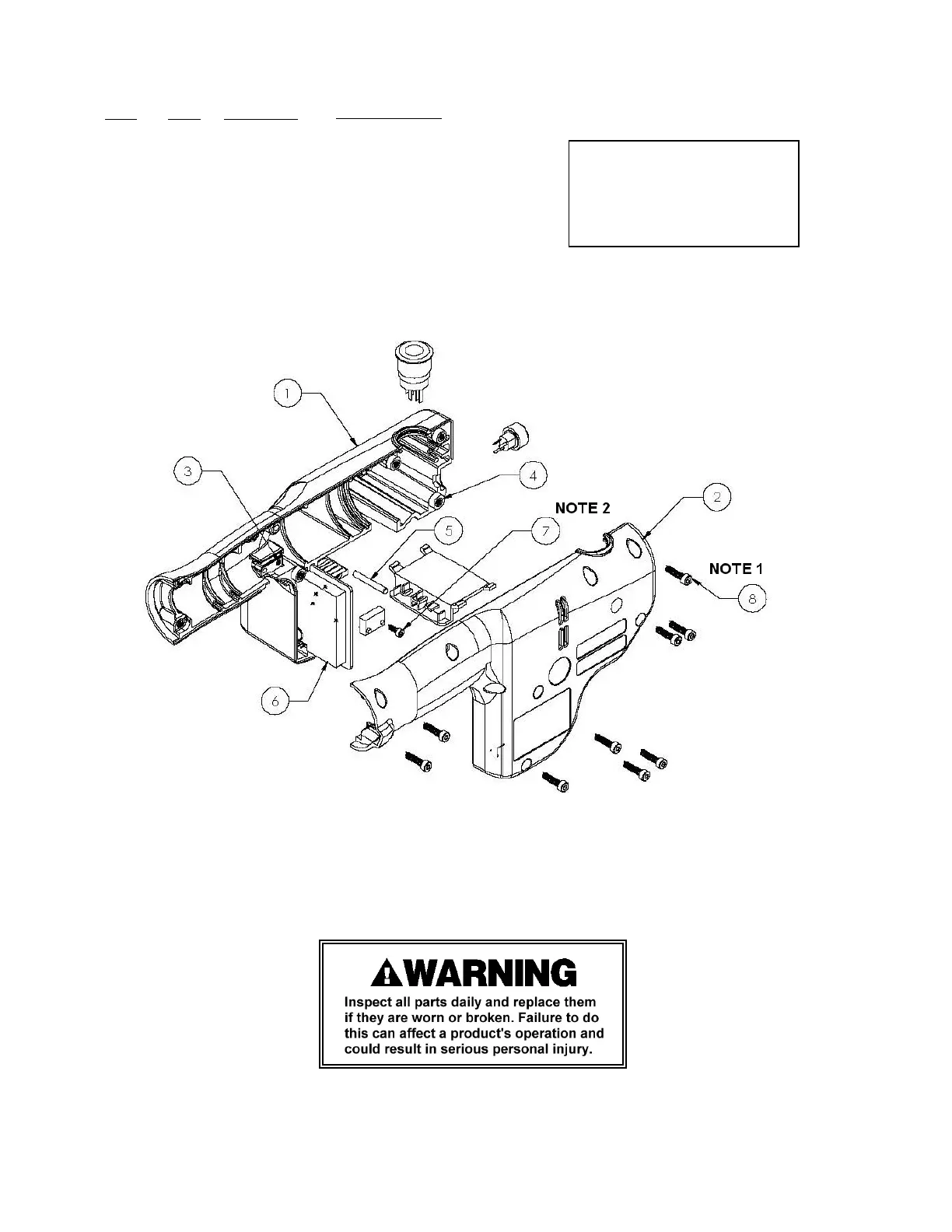

PARTS LIST - PLASTIC HOUSING ASSEMBLY (800444)
KEY QTY PART NO. DESCRIPTION
1 1 800397 PLASTIC HOUSING LEFT
2 1 800398 PLASTIC HOUSING RIGHT
3 1 800424 BRASS INSERT M3
4 9 800423 BRASS INSERT M4
5 1 800426 DOWEL PIN 4 x 30
6 1 800395 PCB ASSEMBLY
7 1 800430 SHCS M3 x 8
8 9 800429 SHCS M4 x 16
14
