Notes:
1. Loctite 609 (Green) or
equivalent.
2. Part side with lettering
must be installed facing
gear housing.
3. Install bearing with face
lettering facing away
from gear housing.
4. Matching gear set.
! Recommended spare
parts items: 8, 14, 15, 18

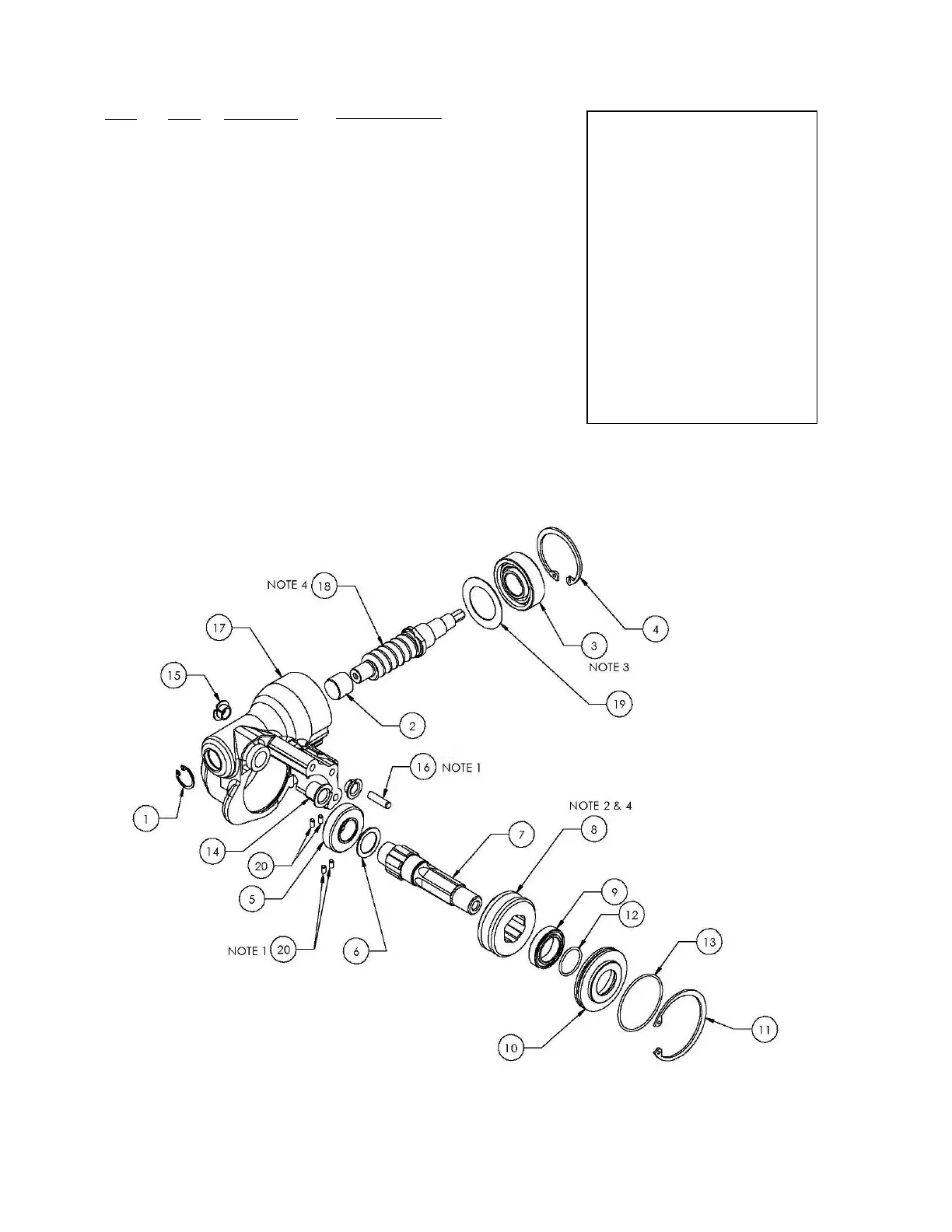

PARTS LIST - GEAR HOUSING ASSEMBLY (800442)
KEY QTY PART NO. DESCRIPTION
1 1 008752 N5000-62
2 1 008751 NEEDLE ROLLER BEARING
3 1 008756 BEARING
4 1 800436 RETAINING RING
5 1 024038 BEARING
6 1 423533 THRUST WASHER
7 1 423501 FEED WHEEL SHAFT
8 1 800400 WORM GEAR
9 1 423515 BEARING
10 1 800448 COVER
11 1 250731 TRUARC RING
12 1 423531 SAE 18 ORING
13 1 256755 SAE 30 ORING
14 1 800120 FLANGE BEARING
15 1 800401 FLANGE BEARING
16 1 800438 DOWEL PIN M5 x 20
17 1 800408 GEAR HOUSING
18 1 800399 WORM
19 1 800604 SEAL
20 4 800456 DOWEL PIN M3 X6
